Switches And Their Control Function (Front)

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Switches And Their Control Function Diagram (Front)
G04903167Courtesy of NISSAN NORTH AMERICA, INC.

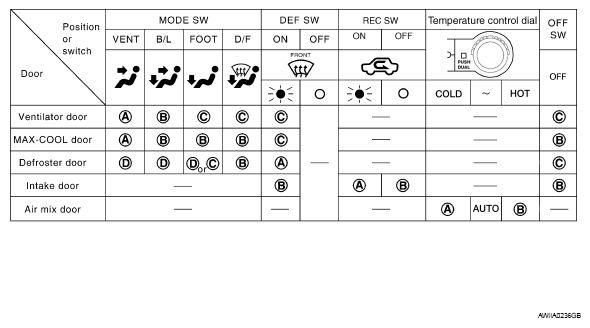

Fig 2: Switches And Their Control Function Chart - Front
G05712551Courtesy of NISSAN NORTH AMERICA, INC.
