Inspection Flow

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

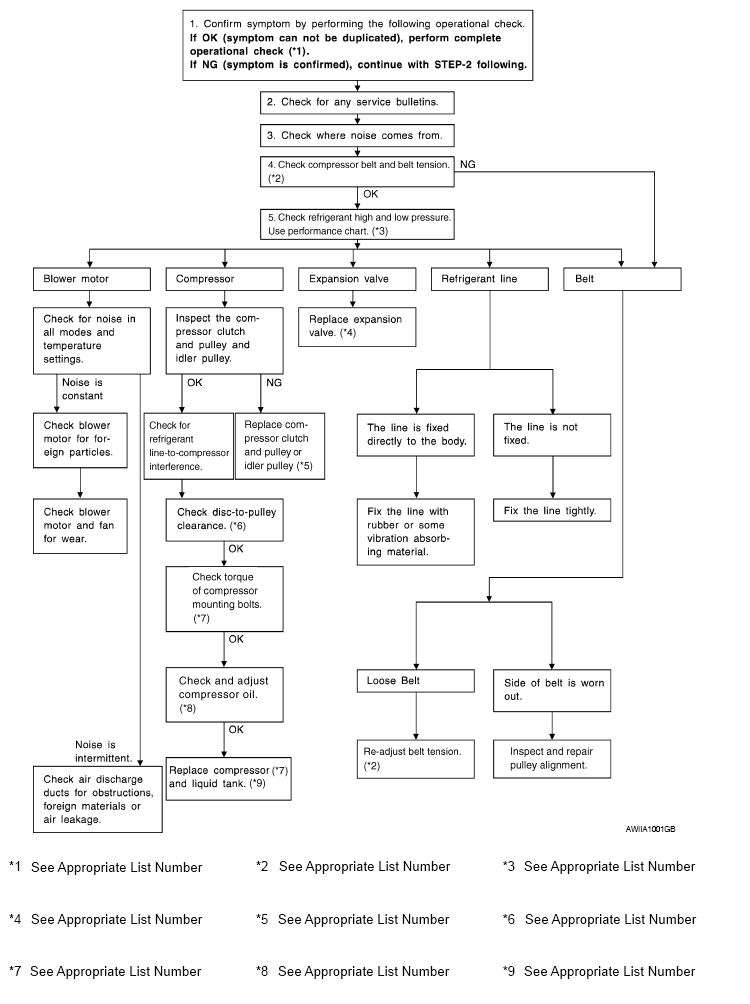

Fig 1: Noise Inspection Flow Chart
G08167641Courtesy of NISSAN NORTH AMERICA, INC.
  1. Refer to Operational Check (Front)  and Operational Check (Rear) .
  2. Refer to CHECKING DRIVE BELTS (VQ40DE) or CHECKING DRIVE BELTS (VK56DE) .
  3. Refer to Performance Chart .
  4. Refer to REMOVAL AND INSTALLATION FOR REAR EXPANSION VALVE
  5. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH
  6. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH
  7. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR
  8. Refer to MAINTENANCE OF OIL QUANTITY IN COMPRESSOR
  9. Refer to REMOVAL AND INSTALLATION FOR CONDENSER
