System Description
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Component Parts

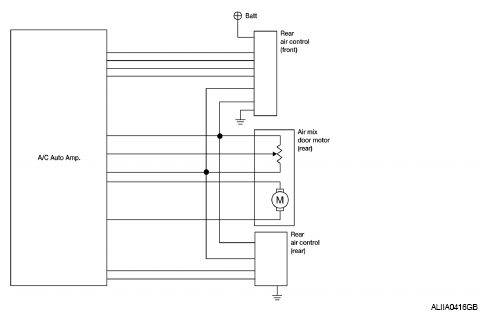

Rear air control system components are:
- A/C auto amp.
- Rear air control (front)
- Rear air control (rear)
- Air mix door motor (rear)
System Operation
Rear Air Control
When the REAR CTRL indicator is off the rear air control (front) will control all rear blower motor speeds and the rear temperature/mode operations. When the REAR CTRL switch is pressed (indicator on), the rear air control (rear) will control all the rear blower motor speeds and the rear temperature/mode operations.
