Low Beam And High Beam
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

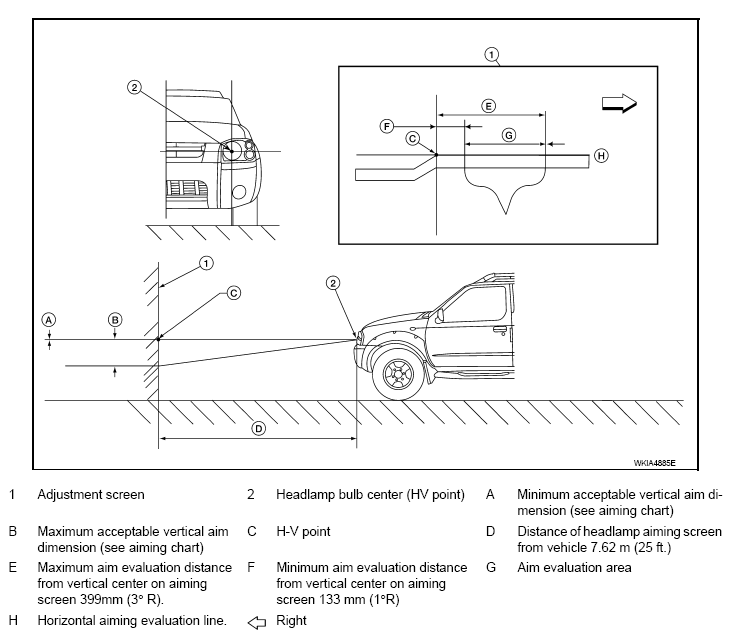

Fig 1: Identifying Low Beam And High Beam Adjustment Screen With Headlight Bulb Center Adjustment Dimensions
AIMING CHART
| A (Minimum acceptable vertical aim dimension) | -3.3 mm (0.13 in) | 0.025° up |
| B (Maximum acceptable vertical aim dimension) | 36.6 mm (1.44 in) | 0.275° down |
NOTE:
- By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is adjustable.
- Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.
- Use adjustment screw to perform aiming adjustment.
- Cover the opposite lamp and ensure fog lamps (if equipped) are turned off .
CAUTION: Do not tighten adjustment screw beyond specified torque or damage may occur.Adjustment torque 1.67 N.m (17 kg-cm, 14.8 in-lb)
- Adjust beam pattern until cut-off line (top edge of illumination area) is positioned at the specified height off ground. Measure cut-off line within distance J on H-line. See AIMING CHART .
