Diagnosis Procedure A/C and AV Switch Assembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".

CHECK A/C AND AV SWITCH ASSEMBLY (REAR WINDOW DEFOGGER SWITCH) CIRCUIT
Operate the rear window defogger switch.

Is the inspection result normal?

YES: Inspection End.

NO: GO TO 2

CHECK HARNESS CONTINUITY

Turn ignition switch OFF.
Disconnect BCM and A/C and AV switch assembly.

Check continuity between BCM harness connector M18 (A) terminal 9 and A/C and AV switch assembly harness connector M98 (B) terminal 16.

BCM connector	Terminal	A/C and AV switch assembly connector	Terminal	Continuity
M18 (A)	9	M98 (B)	16	Yes

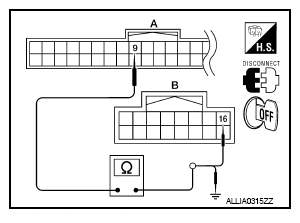

Fig 1: Checking Continuity Between BCM Connector M18 Terminal 9 And A/C And AV Switch Assembly Connector M98 Terminal 16

Courtesy of NISSAN NORTH AMERICA, INC.

Check continuity between BCM harness connector M18 (A) terminal 9 and ground.

BCM connector	Terminal	Ground	Continuity
M18 (A)	9	Ground	No

Is the inspection result normal?

YES: Replace A/C and AV switch assembly. Refer to "REMOVAL AND INSTALLATION ".

NO: Repair or replace harness.
