Component Inspection

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR DEFOGGER
Check continuity between door mirror RH terminals 1 and 6.

1 - 6 : Continuity should exist .

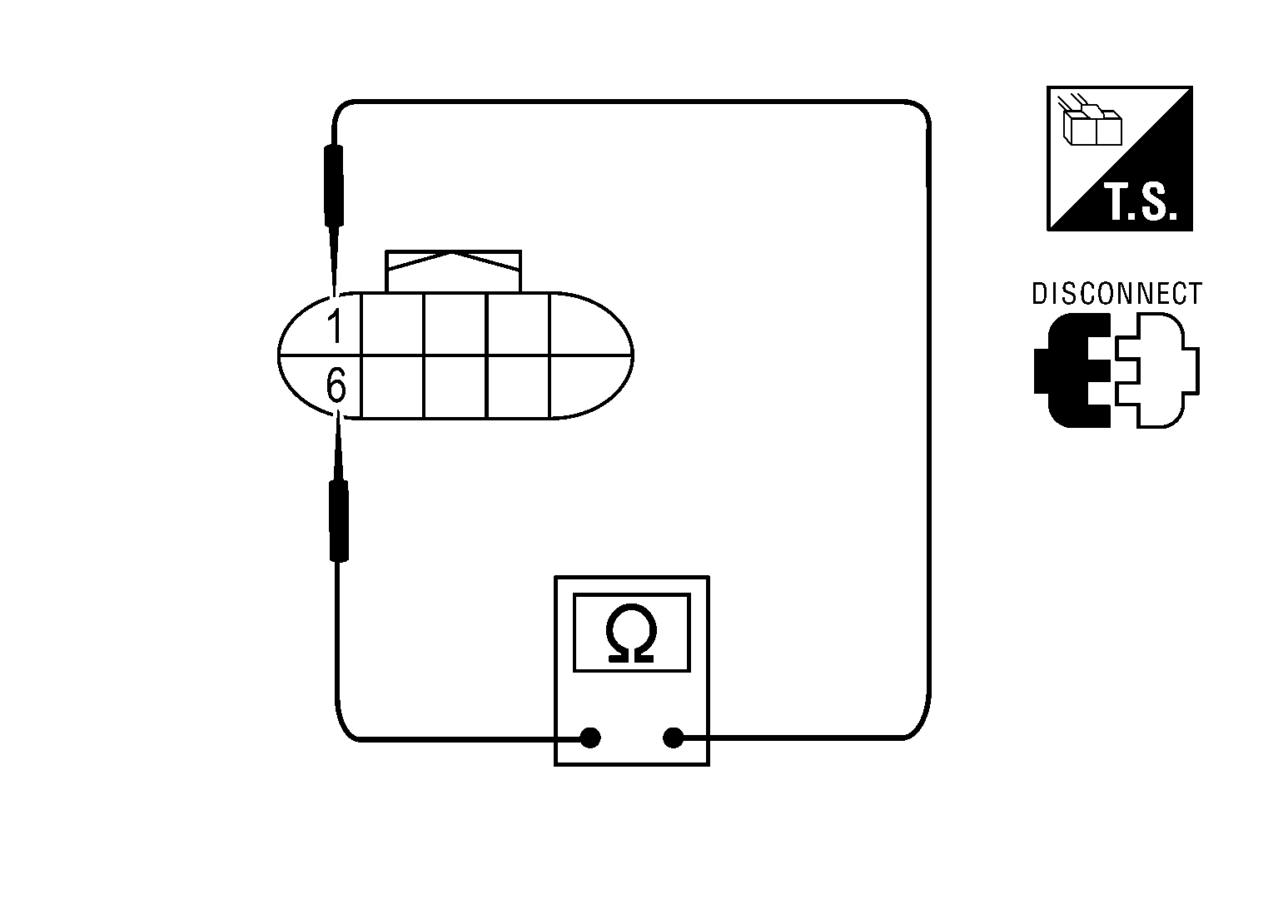

Fig 1: Checking Continuity Between Door Mirror RH Terminals 1 And 6
Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: Check the condition of the harness and the connector.

NO: Replace malfunctioning door mirror RH. Refer to "DOOR MIRROR ASSEMBLY ".
