Component Inspection
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK DOOR MIRROR DEFOGGER

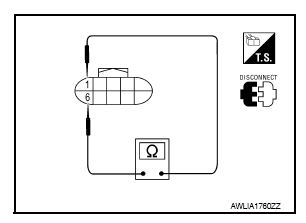

Check continuity between door mirror LH terminals 1 and 6.
1 - 6 : Continuity should exist .
Is the inspection result normal?
YES: Check the condition of the harness and the connector.
NO: Replace malfunctioning door mirror LH. Refer to "DOOR MIRROR ASSEMBLY ".
