Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION " (2S1330), "UNIT REMOVAL AND INSTALLATION " (2S1350).
  2. Remove the dust cover from the rear case.
    CAUTION: Do not damage the rear case.

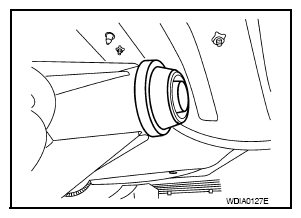

    Fig 1: Identifying Dust Cover
    G08165962Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the rear oil seal from the rear case using Tool.

    Tool number: ST33290001 (J-34286)

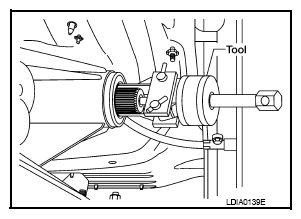

    Fig 2: Removing Rear Oil Seal Of Rear Case Using Tool
    G08165963Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage the rear case.
