Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install the new front oil seal until it is flush with the end face of the front case using Tool.
Tool number: KV38100500 (-)

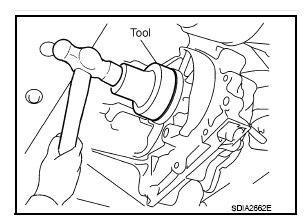

Fig 1: Removing Front Oil Seal Of Front Case Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.
Align the matching mark of the front drive shaft with the matching mark of the companion flange, then install the companion flange.

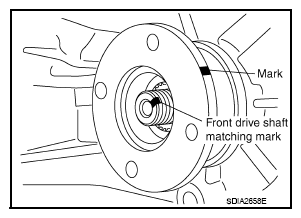

Fig 2: Identifying Matching Mark Of Front Drive Shaft And Companion Flange
Courtesy of NISSAN NORTH AMERICA, INC.
Install the new self-lock nut. Tighten to the specified torque using suitable tool. Refer to "DISASSEMBLY AND ASSEMBLY ".
CAUTION: Do not reuse self-lock nut.
Install the front propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
Check for fluid leaks and fluid level. Refer to TRANSFER FLUID .

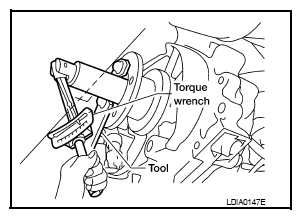

Fig 3: Installing Self Lock Nut Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
