Section 1051 (Engine Lubrication System (VQ40DE))
>>
Removal And Installation
>>
Oil Cooler
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

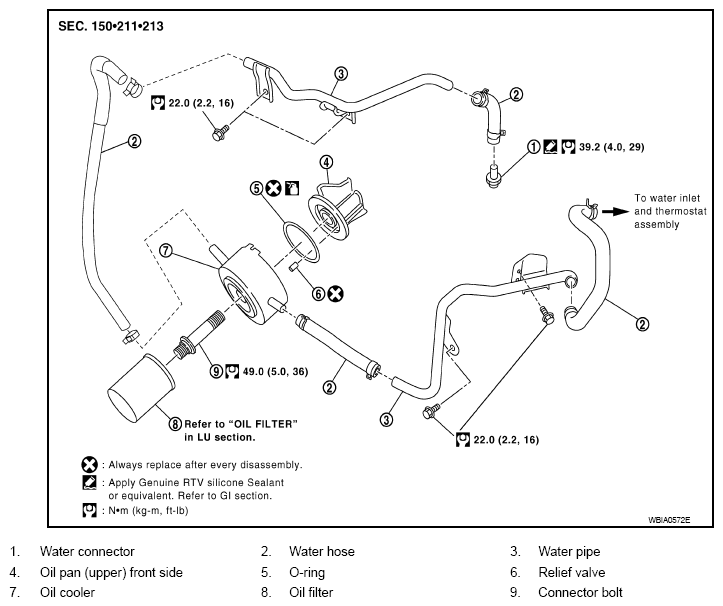

Fig 1: Exploded View Of Oil Cooler
Courtesy of NISSAN NORTH AMERICA, INC.
