A/T Control System: Wiring Diagram

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

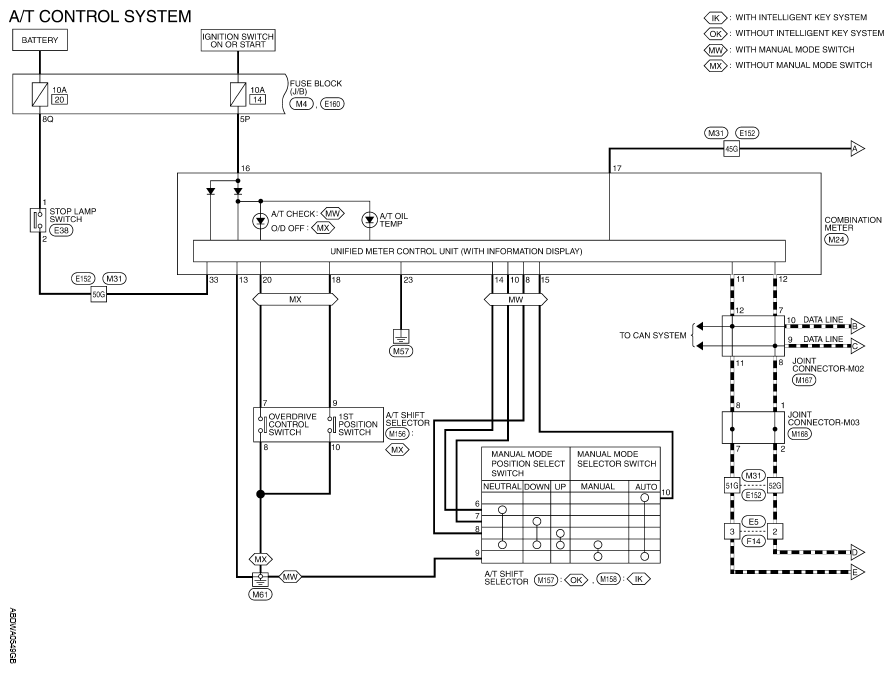

Fig 1: A/T Control System Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

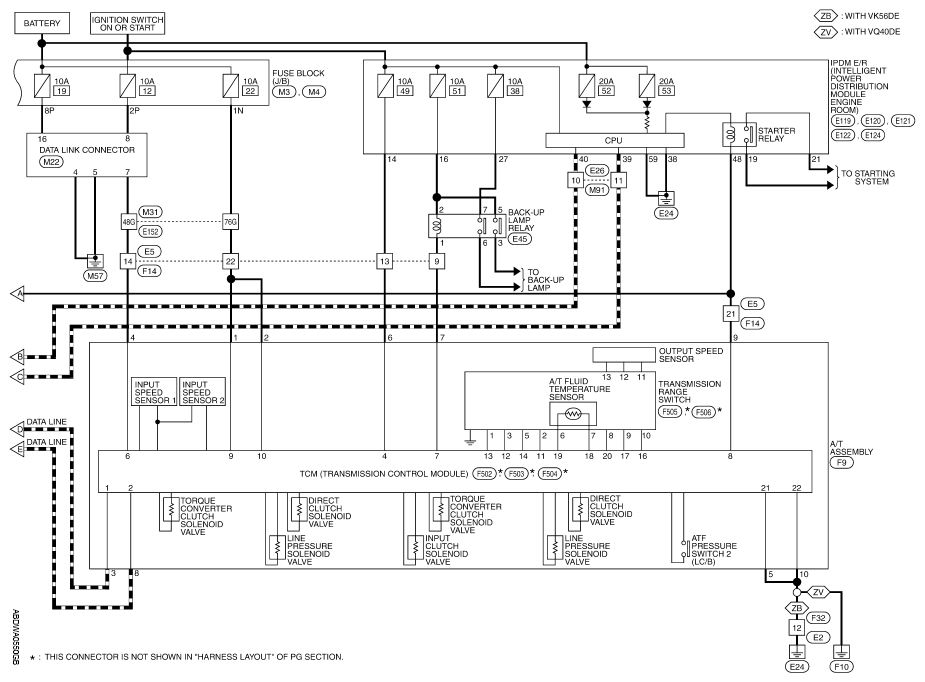

Fig 2: A/T Control System Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
