4WD: Removal and Installation: Inspection
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Installation and Inspection of Torque Converter

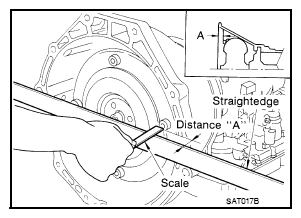

- After inserting the torque converter to the transmission, be sure to check dimension (A) to ensure it is within the reference value limit.
Dimension (A)
VQ40DE Models: 25.0 mm (0.98 in) or more
VK56DE Models: 24.0 mm (0.94 in) or more
