VQ40DE models 2WD

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

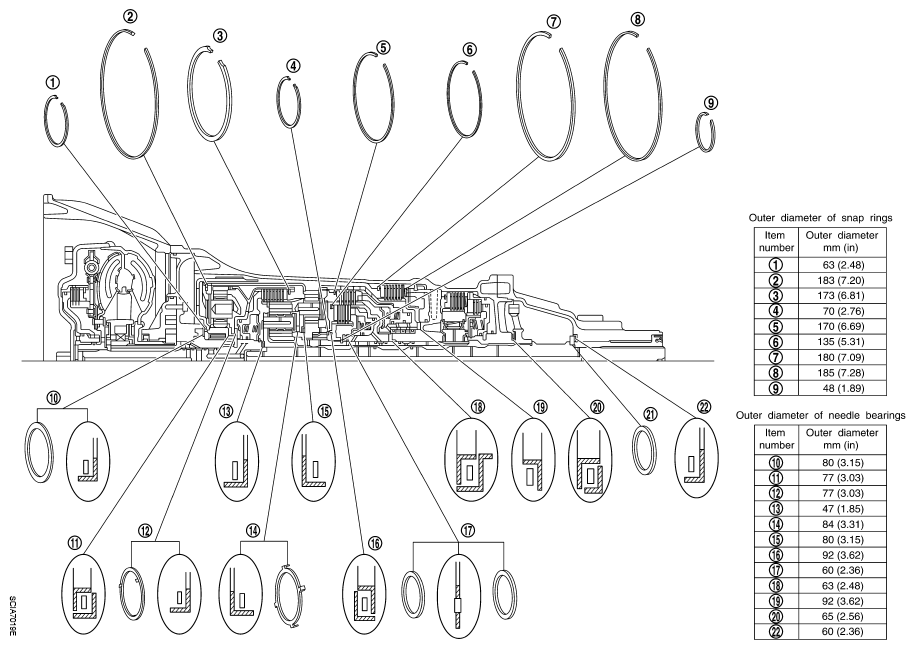

Fig 1: Identifying Adjusting Shims, Needle Bearings, Thrust Washers And Snap Rings (VQ40DE Models 2WD)
G08165556Courtesy of NISSAN NORTH AMERICA, INC.
