Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove bearing race from high and low reverse clutch drum.

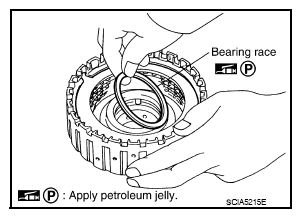

Fig 1: Removing/Installing High And Low Reverse Clutch Drum Bearing Race
Courtesy of NISSAN NORTH AMERICA, INC.
Remove snap ring from high and low reverse clutch drum using suitable tool.
Remove drive plates, driven plates and retaining plate from high and low reverse clutch drum.

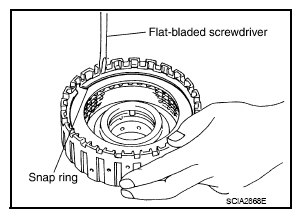

Fig 2: Removing/Installing High And Low Reverse Clutch Drum Snap Ring Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
