TCM Self-Diagnostic Procedure (No Tools) - With Manual Mode

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Description

When the ignition switch is switched "ON", the A/T CHECK indicator lamp lights up for 2 seconds. As a method for locating the suspect circuit, when the self-diagnostics start signal is input, the memory for the malfunction location is output and the A/T CHECK indicator lamp flashes to display the corresponding DTC.

Diagnostic Procedure

CHECK A/T CHECK INDICATOR LAMP
1. Start the engine with selector lever in "P" position. Warm engine to normal operating temperature.
2. Turn ignition switch ON and OFF at least twice, then leave it in the OFF position.
3. Wait 10 seconds.
4. Turn ignition switch ON. (Do not start engine.)
  Does A/T CHECK indicator lamp come on for about 2 seconds?

  YES: GO TO 2.

  NO: Go to "SYMPTOM CHART ".
JUDGMENT PROCEDURE STEP 1
1. Turn ignition switch OFF.
2. Keep pressing shift lock release button.
3. Move selector lever from "P" to "D" position.
4. Release accelerator pedal. (Set the closed throttle position signal "ON".)
5. Depress brake pedal. (Stop lamp switch signal "ON".)
6. Turn ignition switch ON (Do not start engine.)
7. Wait 3 seconds.
8. Move the selector lever to the manual shift gate side. (Manual mode signal "ON".)
9. Release brake pedal. (Stop lamp switch signal "OFF".)
10. Move the selector lever to "D" position. (Manual mode signal ON.)
11. Depress brake pedal. (Stop lamp switch signal "ON".)
12. Release brake pedal. (Stop lamp switch signal "OFF".)
13. Depress accelerator pedal fully and release it.
  GO TO 3.
CHECK SELF-DIAGNOSIS CODE
Check A/T CHECK indicator lamp.

Refer to "Judgment Self-diagnosis Code".

If the system does not go into self-diagnostics. Refer to "DIAGNOSIS PROCEDURE ", "DIAGNOSIS PROCEDURE ", "DIAGNOSIS PROCEDURE ", "DIAGNOSIS PROCEDURE ".

>> DIAGNOSIS END

Judgment Self-diagnosis Code

If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.

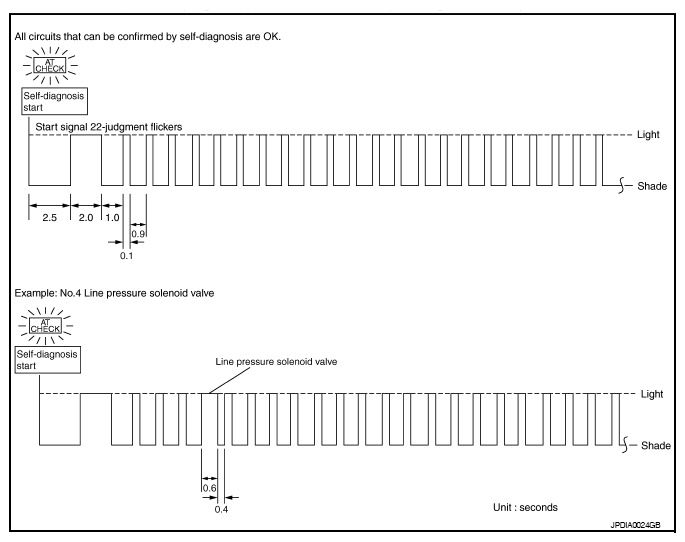

Fig 1: Judgment Of Self-Diagnosis Code

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Malfunctioning item
1	Output speed sensor P0720 OUTPUT SPEED SENSOR
2	Direct clutch solenoid P1762 DIRECT CLUTCH SOLENOID
3	Torque converter P0740 TORQUE CONVERTER , P0744 TORQUE CONVERTER
4	Line pressure solenoid P0745 PRESSURE CONTROL SOLENOID A
5	Input clutch solenoid P1752 INPUT CLUTCH SOLENOID
6	Front brake solenoid P1757 FRONT BRAKE SOLENOID
7	Low coast brake solenoid P1772 LOW COAST BRAKE SOLENOID , P1774 LOW COAST BRAKE SOLENOID
8	High and low reverse clutch solenoid P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID
9	Transmission range switch P0705 TRANSMISSION RANGE SENSOR A
10	Transmission fluid temperature sensor P1710 TRANSMISSION FLUID TEMPERATURE SENSOR
11	Input speed sensor P0717 INPUT SPEED SENSOR A
12	Interlock P1730 INTERLOCK
13	1st engine braking P1731 1ST ENGINE BRAKING
14	Starter relay P0615 STARTER RELAY
15	TP sensor P1705 TP SENSOR
16	Engine speed P0725 ENGINE SPEED
17	CAN communication line U1000 CAN COMM CIRCUIT
18	1GR incorrect ratio P0731 1GR INCORRECT RATIO
19	2GR incorrect ratio P0732 2GR INCORRECT RATIO
20	3GR incorrect ratio P0733 3GR INCORRECT RATIO
21	4GR incorrect ratio P0734 4GR INCORRECT RATIO
22	5GR incorrect ratio P0735 5GR INCORRECT RATIO

Erase Self-diagnosis

In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is stored into the control unit as necessary during use by the user. This memory is not erased no matter how many times the ignition switch is turned ON and OFF.
However, this information is erased by turning ignition switch OFF after executing self-diagnostics or by erasing the memory using the CONSULT.
