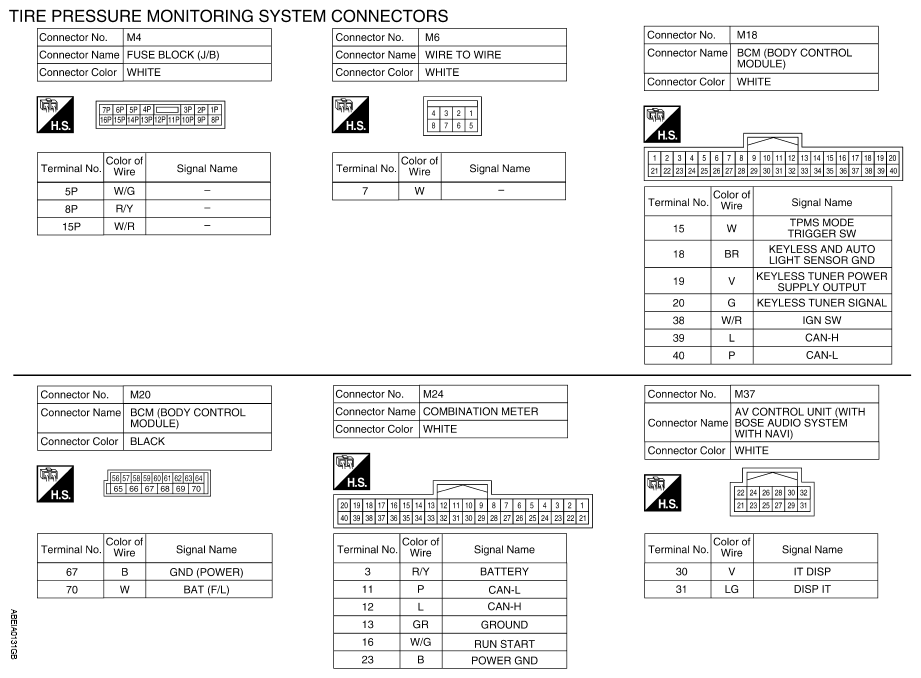

Fig 1: Identifying Tire Pressure Monitoring System Connectors (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

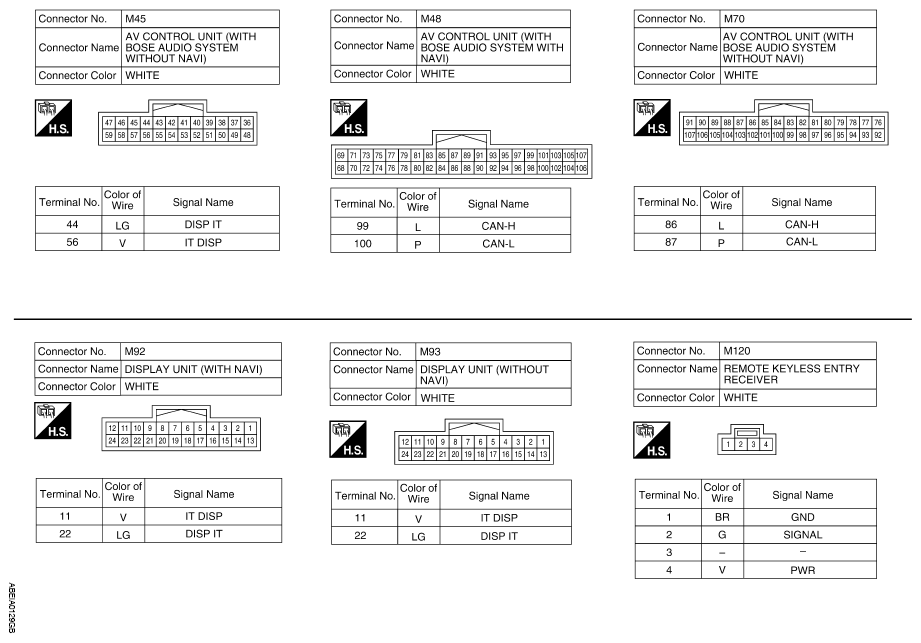

Fig 2: Identifying Tire Pressure Monitoring System Connectors (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

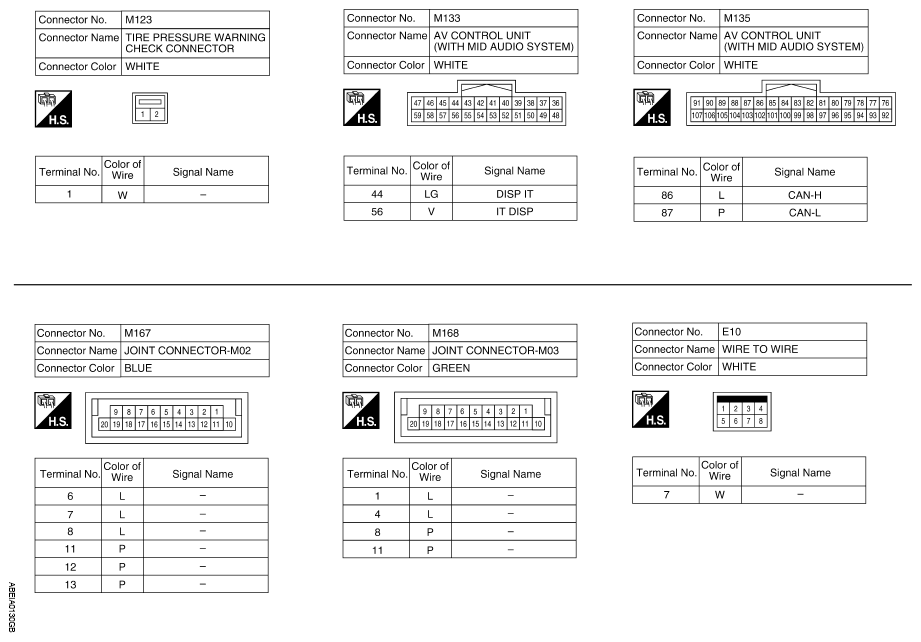

Fig 3: Identifying Tire Pressure Monitoring System Connectors (3 Of 3)
