Operation Procedure

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch OFF.
While pushing the odo/trip meter switch, turn the ignition switch ON again.
Push the odo/trip meter switch at least 3 times within 7 seconds after the ignition switch is turned ON.
The unified meter control unit is turned to self-diagnosis mode.
- All the segments on the odo/trip meter illuminate.

  Fig 1: Identifying ODO/Trip Meter Segments
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Dots in all segments of information display LCD (1) flash alternately.

  Fig 2: Identifying Information Display LCD
  Courtesy of NISSAN MOTOR CO., U.S.A.

  NOTE: If any of the segments are not displayed, replace the combination meter. Refer to "REMOVAL AND INSTALLATION ".
Push the odo/trip meter switch. Each meter/gauge should indicate as shown in the figure.

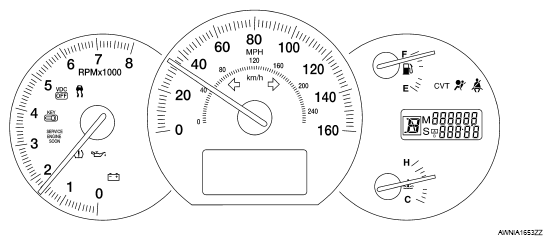

Fig 3: Identifying Combination Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
