WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

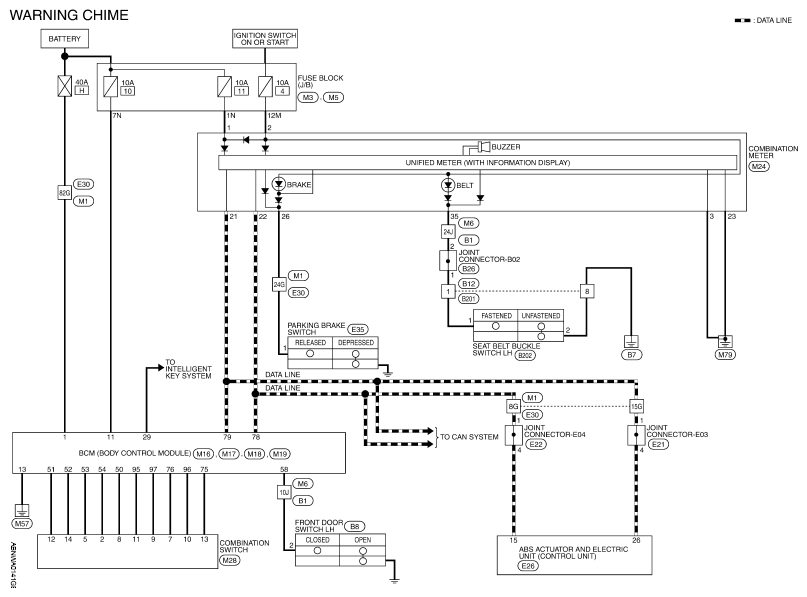

Fig 1: Warning Chime System - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

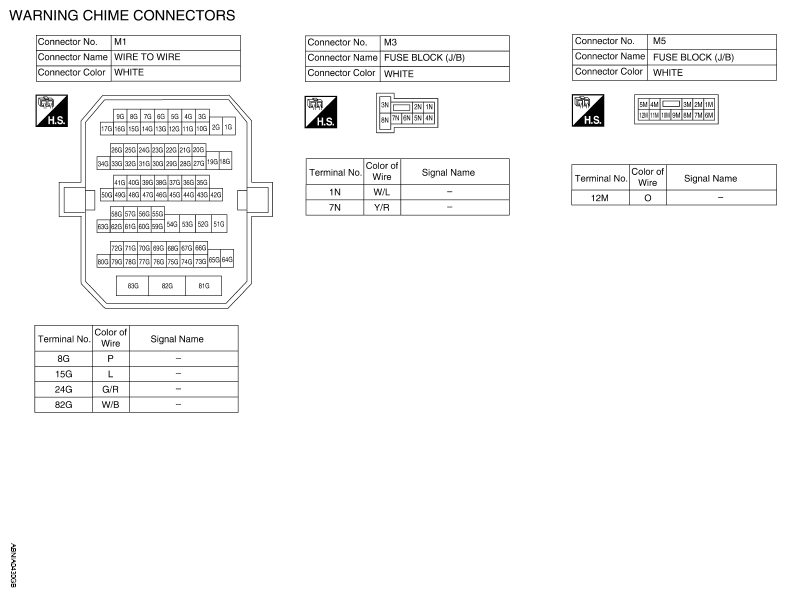

Fig 2: Identifying Warning Chime System Connector Terminals (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

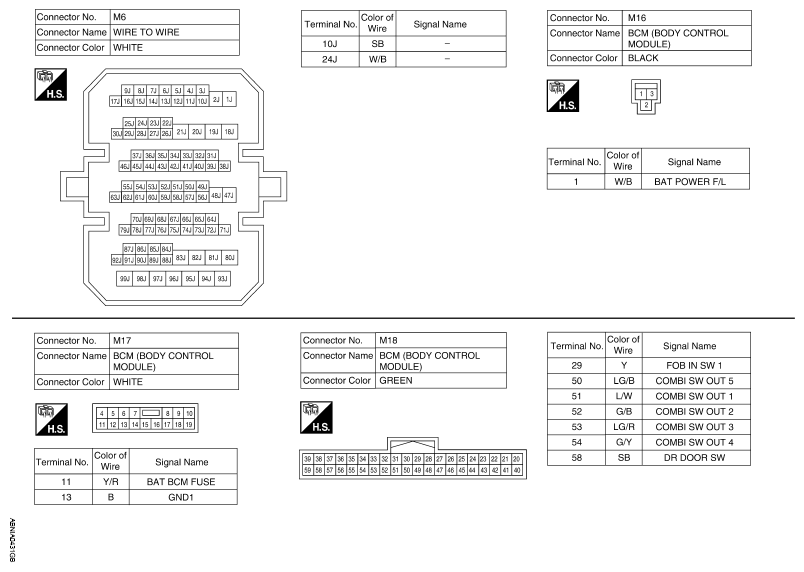

Fig 3: Identifying Warning Chime System Connector Terminals (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

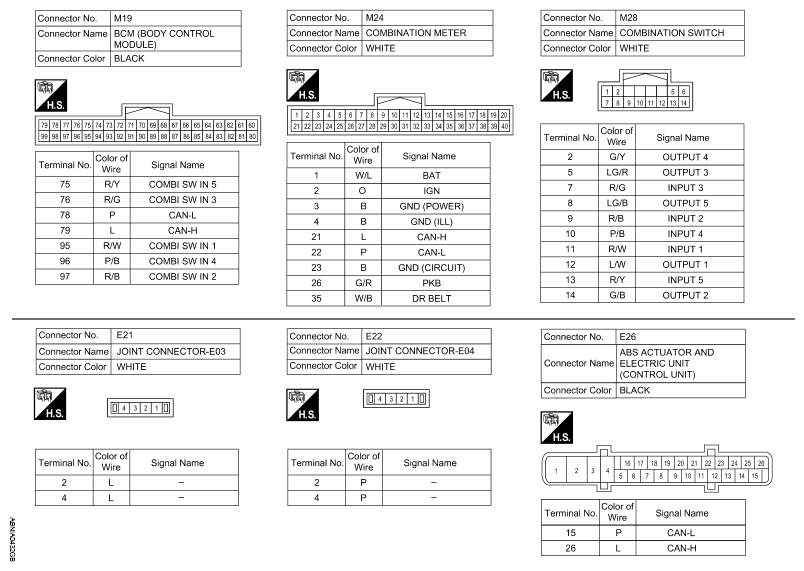

Fig 4: Identifying Warning Chime System Connector Terminals (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

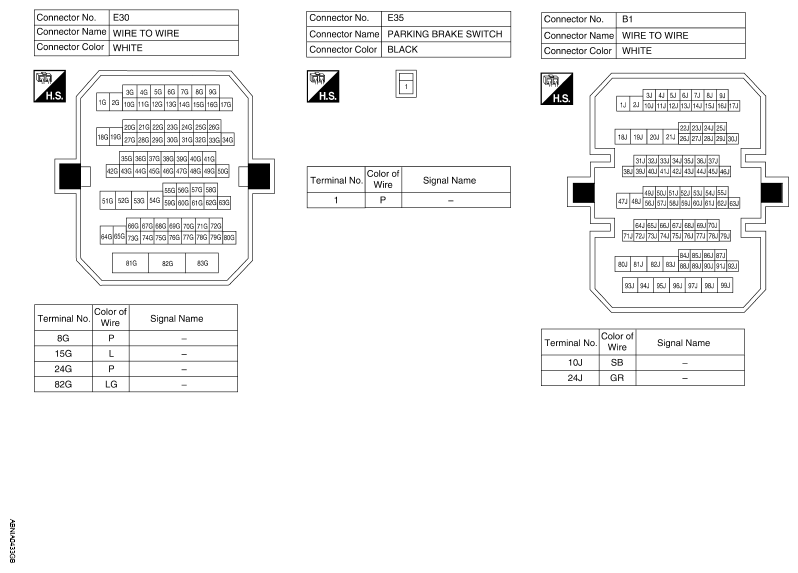

Fig 5: Identifying Warning Chime System Connector Terminals (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

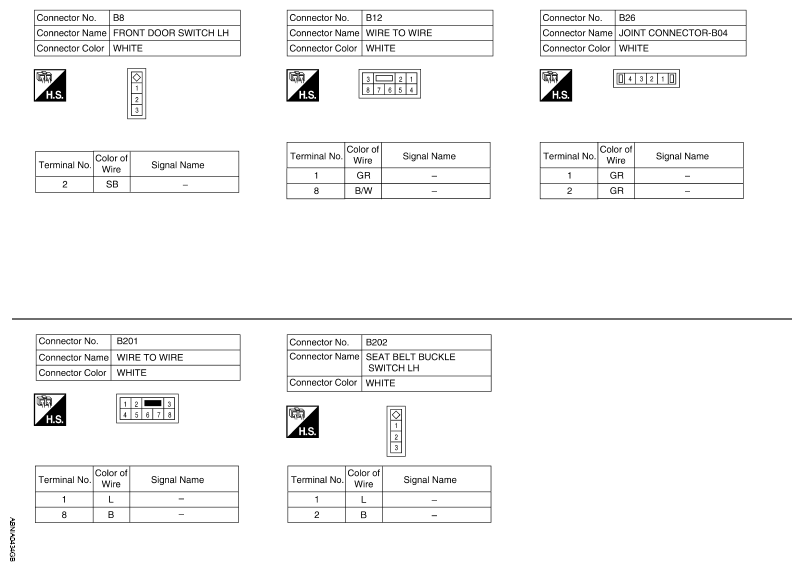

Fig 6: Identifying Warning Chime System Connector Terminals (5 Of 5)
