Component Diagnosis: Illumination: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

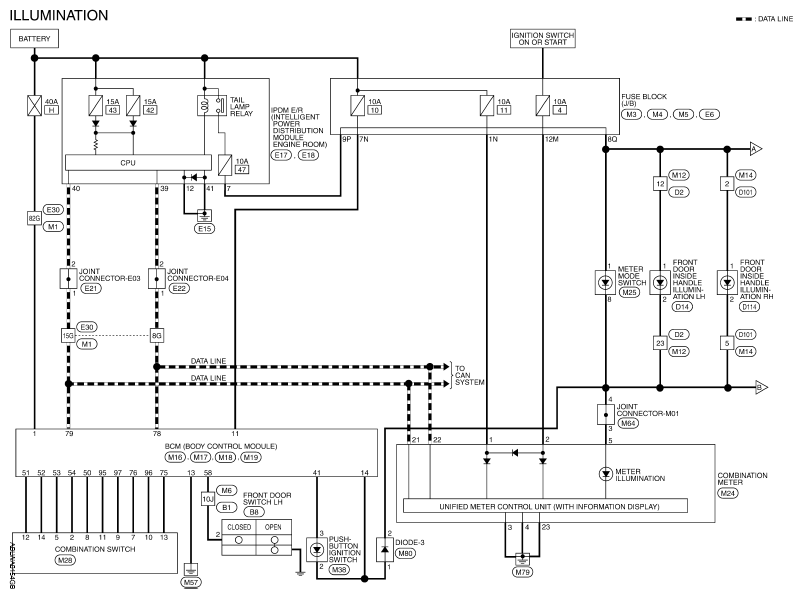

Fig 1: Illumination - Wiring Diagram (1 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Illumination - Wiring Diagram (2 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Illumination - Wiring Diagram (3 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

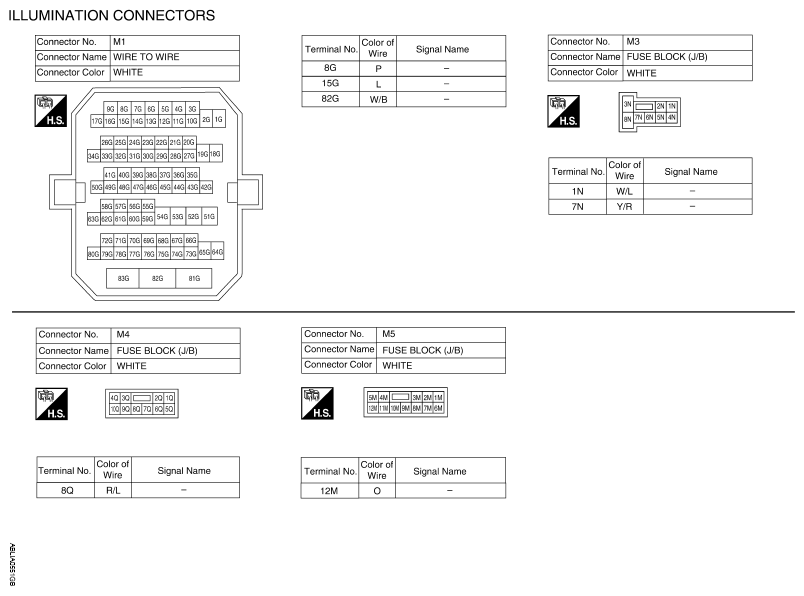

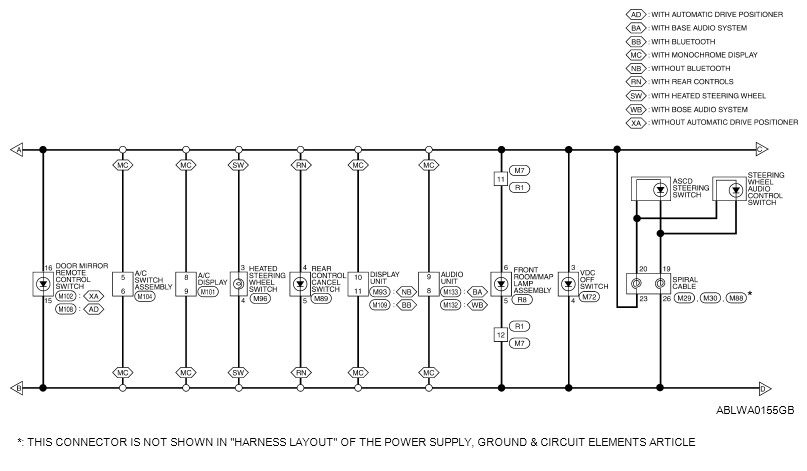

Fig 4: Illumination - Wiring Diagram (4 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

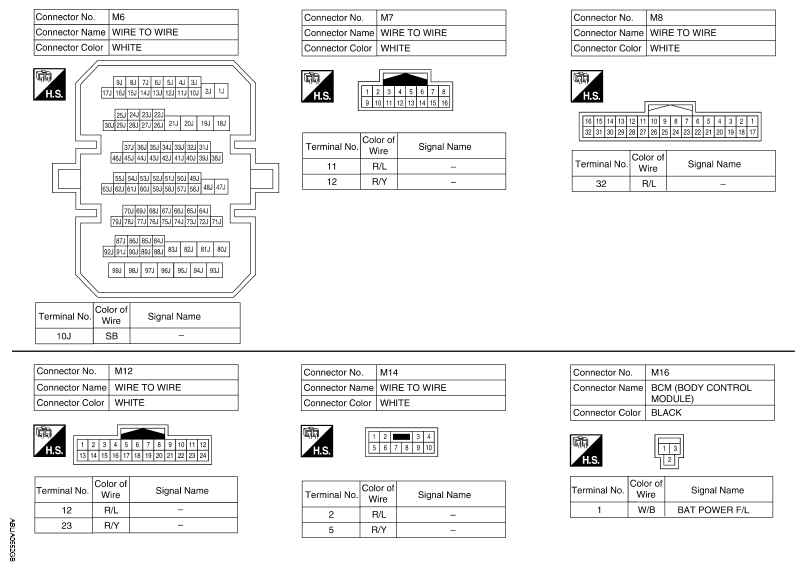

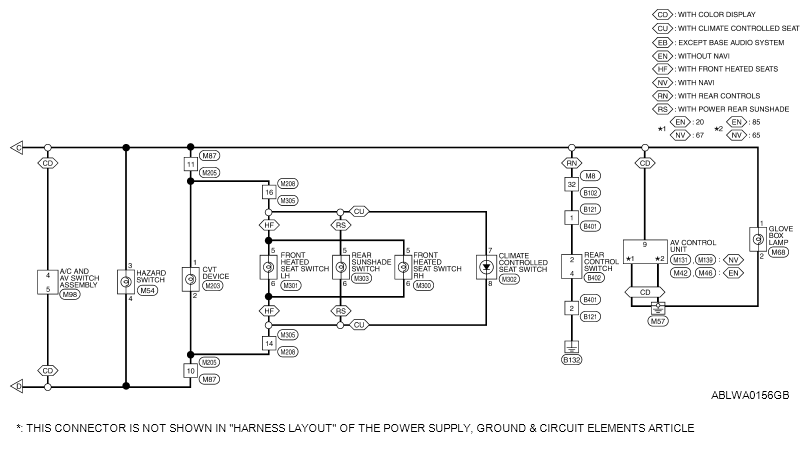

Fig 5: Illumination - Wiring Diagram (5 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Illumination - Wiring Diagram (6 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Illumination - Wiring Diagram (7 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

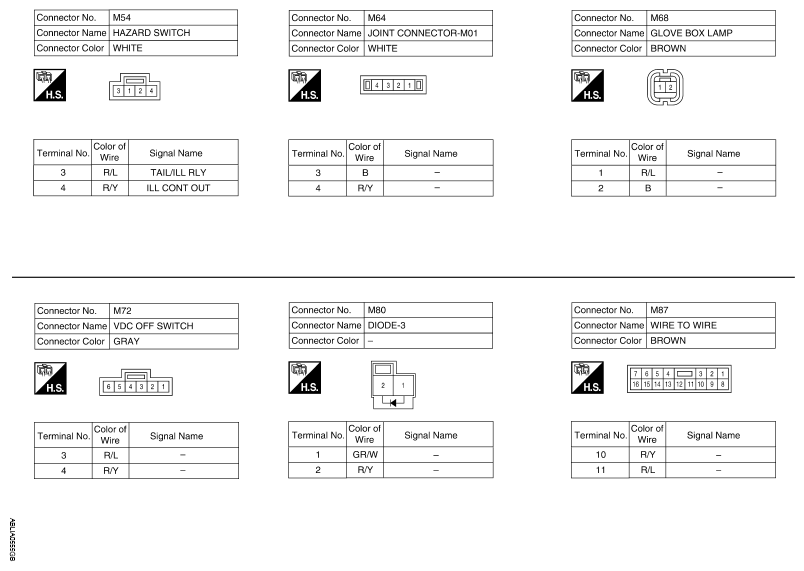

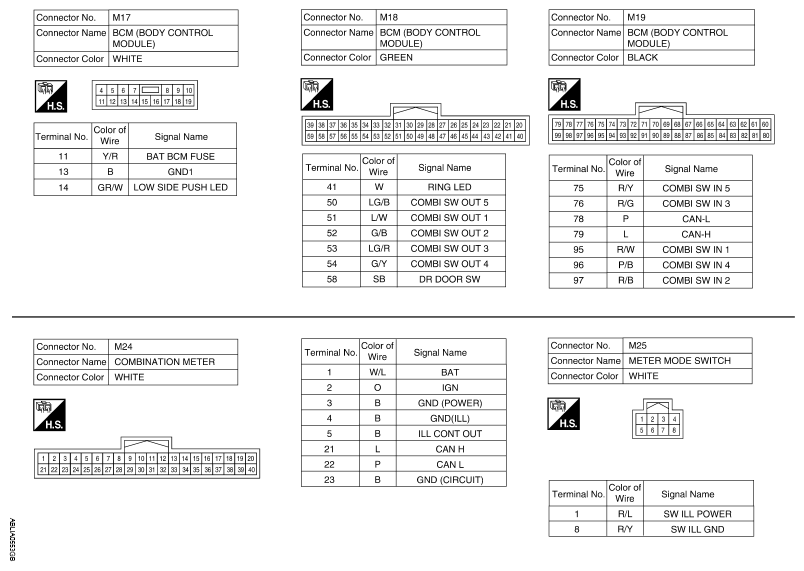

Fig 8: Illumination - Wiring Diagram (8 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

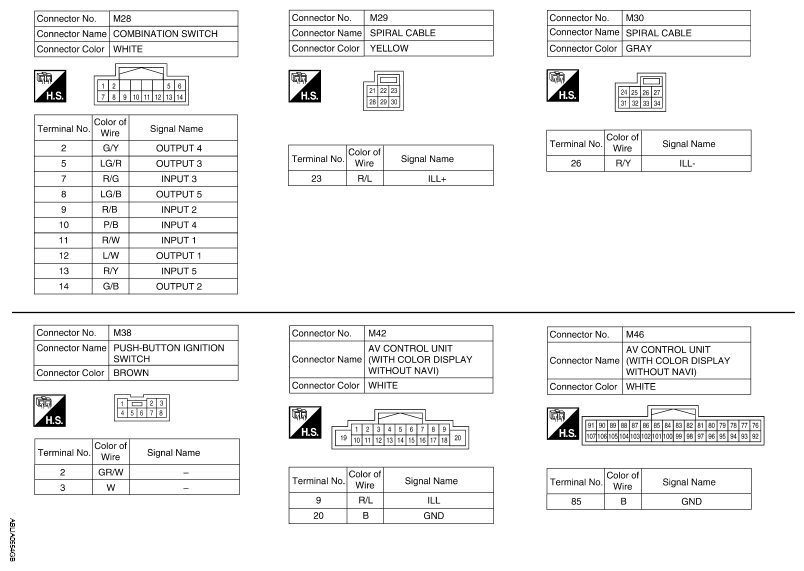

Fig 9: Illumination - Wiring Diagram (9 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

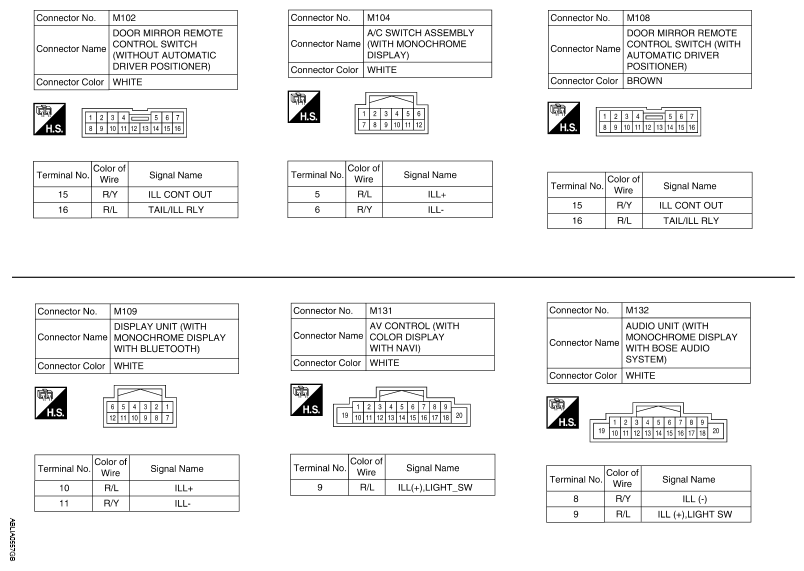

Fig 10: Illumination - Wiring Diagram (10 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

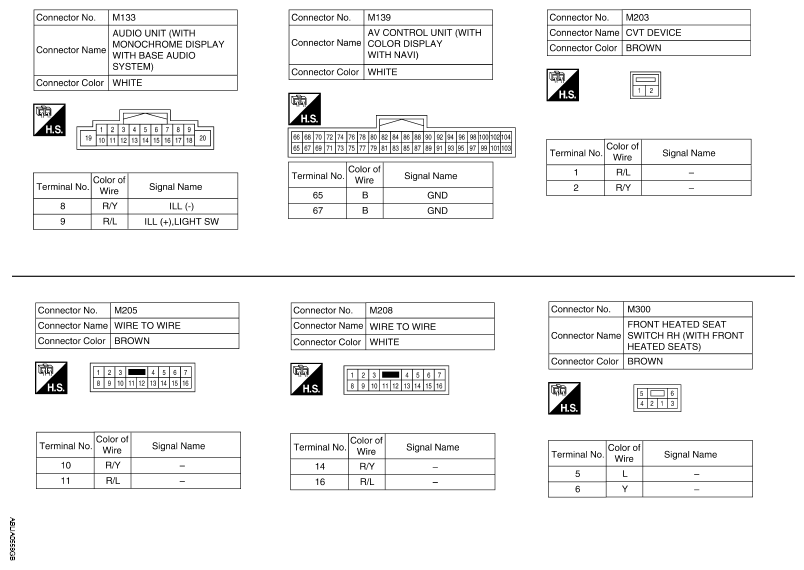

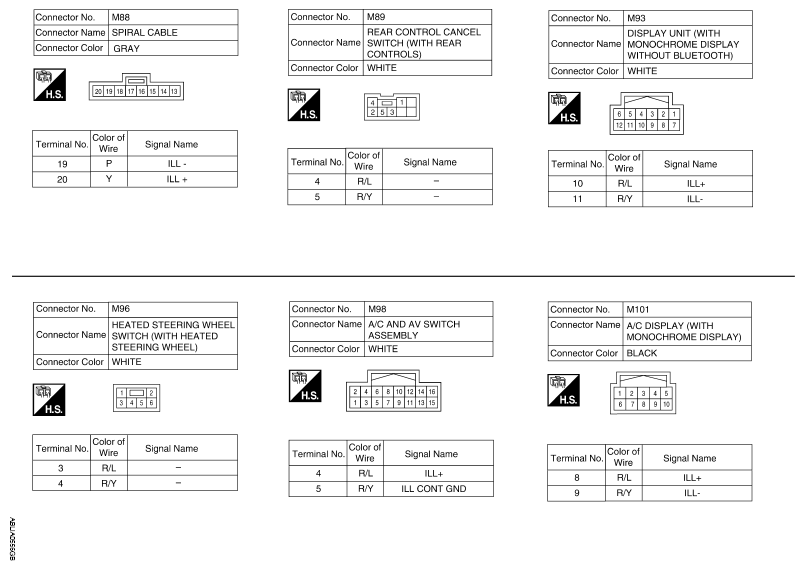

Fig 11: Illumination - Wiring Diagram (11 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Illumination - Wiring Diagram (12 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

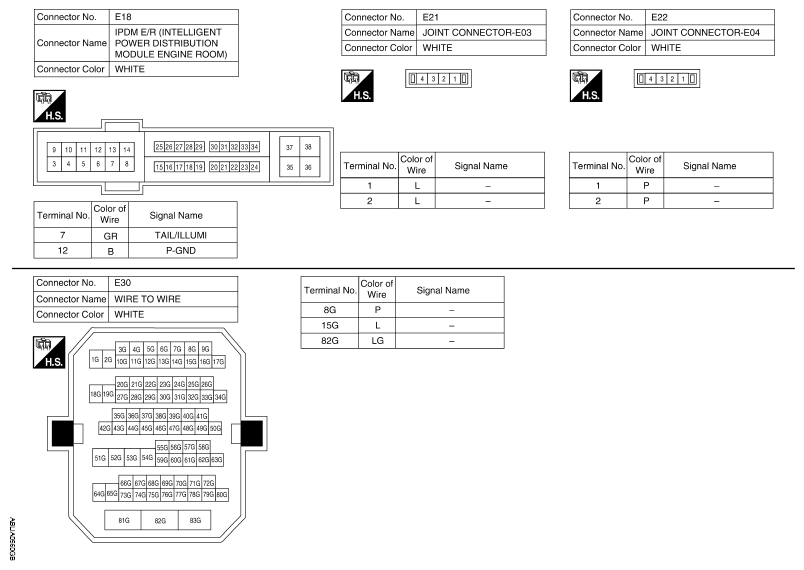

Fig 13: Illumination - Wiring Diagram (13 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

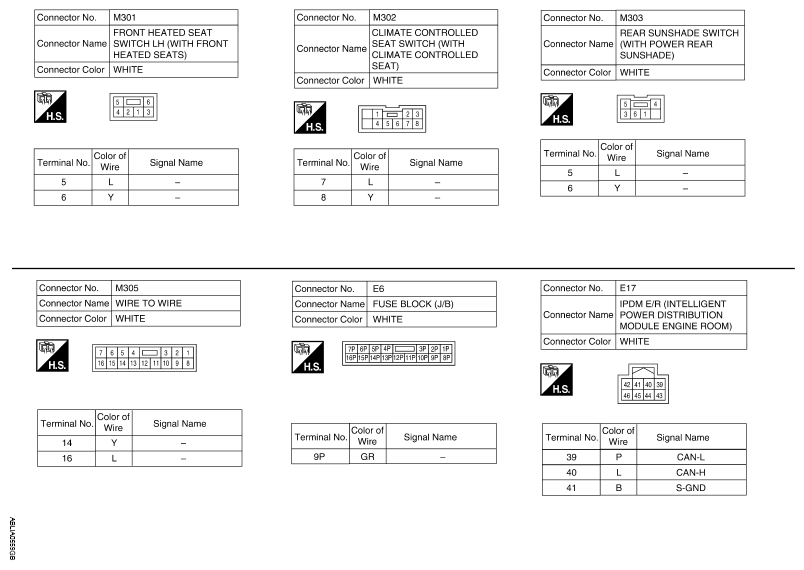

Fig 14: Illumination - Wiring Diagram (14 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

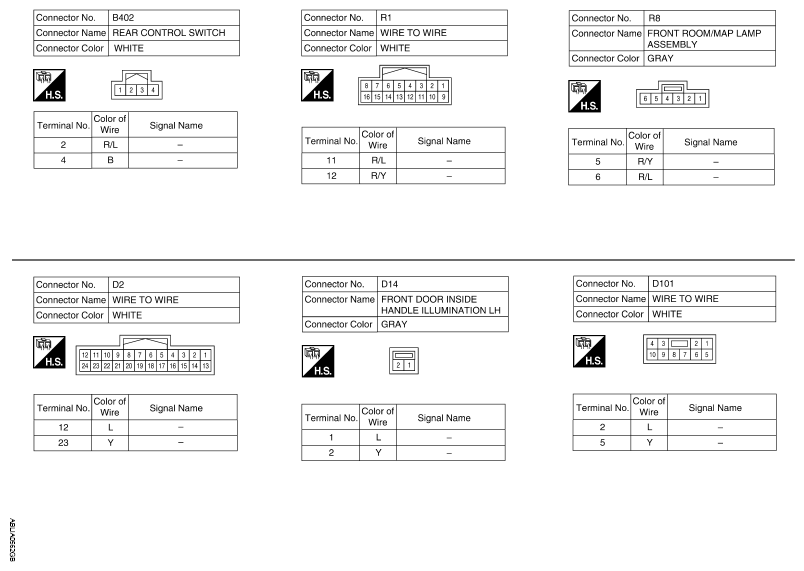

Fig 15: Illumination - Wiring Diagram (15 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.

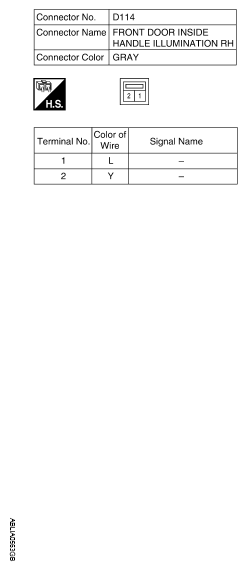

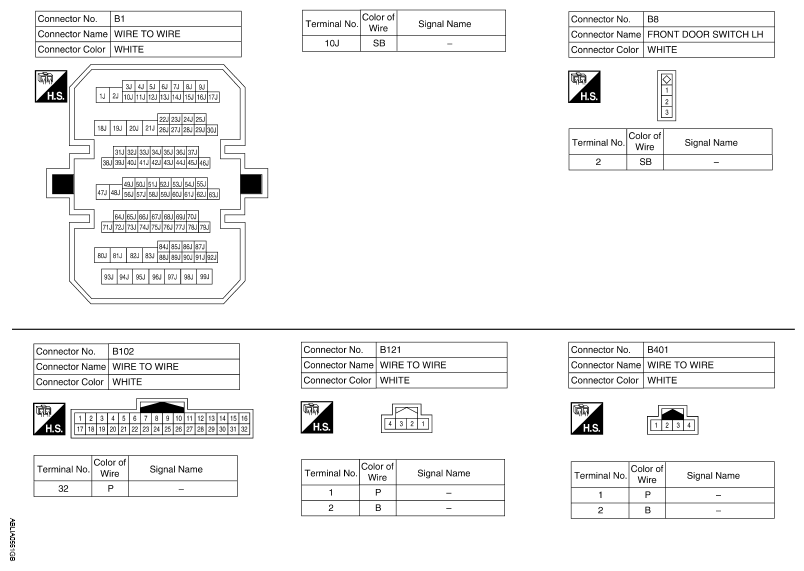

Fig 16: Illumination - Wiring Diagram (16 Of 16)

Courtesy of NISSAN MOTOR CO., U.S.A.
