Component Diagnosis: Horn: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

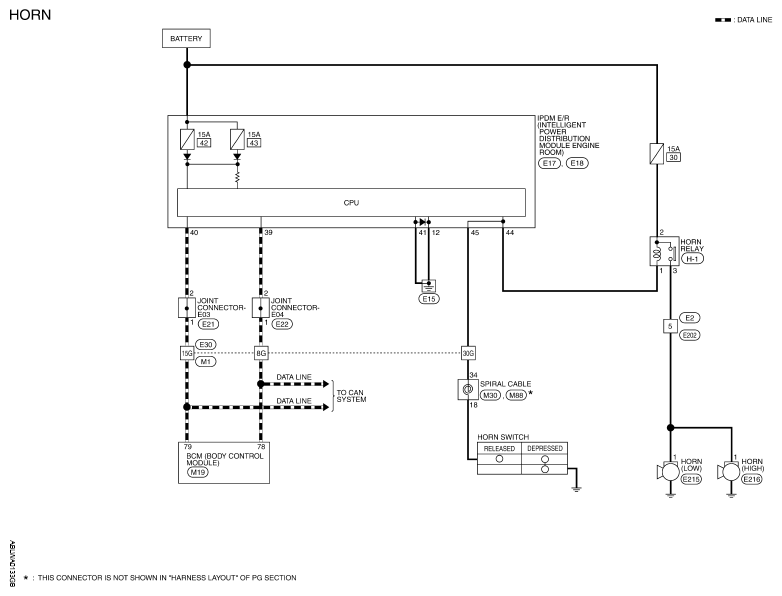

Fig 1: Horn - Wiring Diagram
G05878751Courtesy of NISSAN MOTOR CO., U.S.A.

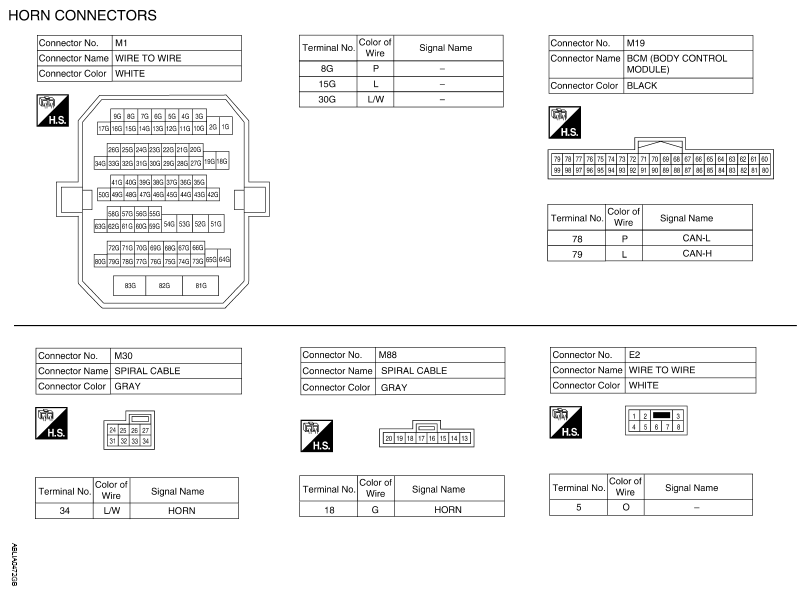

Fig 2: Identifying Horn Connector Terminals (1 Of 3)
G05878752Courtesy of NISSAN MOTOR CO., U.S.A.

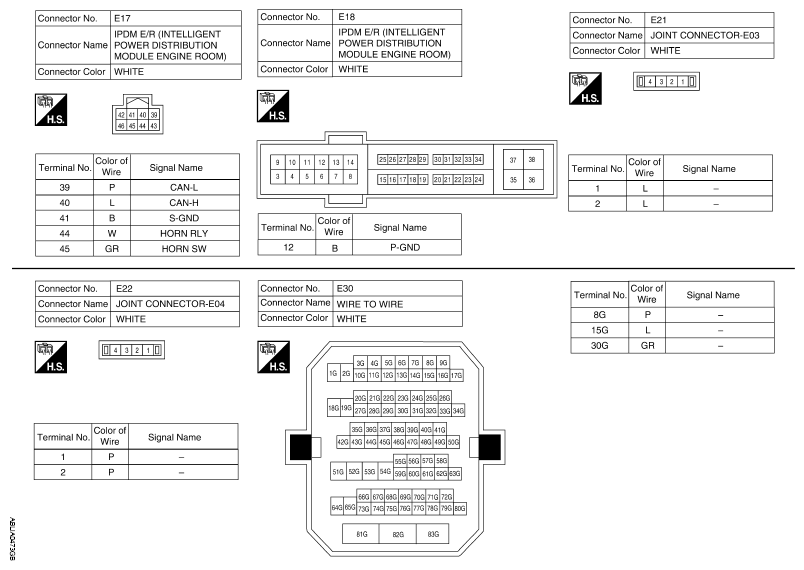

Fig 3: Identifying Horn Connector Terminals (2 Of 3)
G05878753Courtesy of NISSAN MOTOR CO., U.S.A.

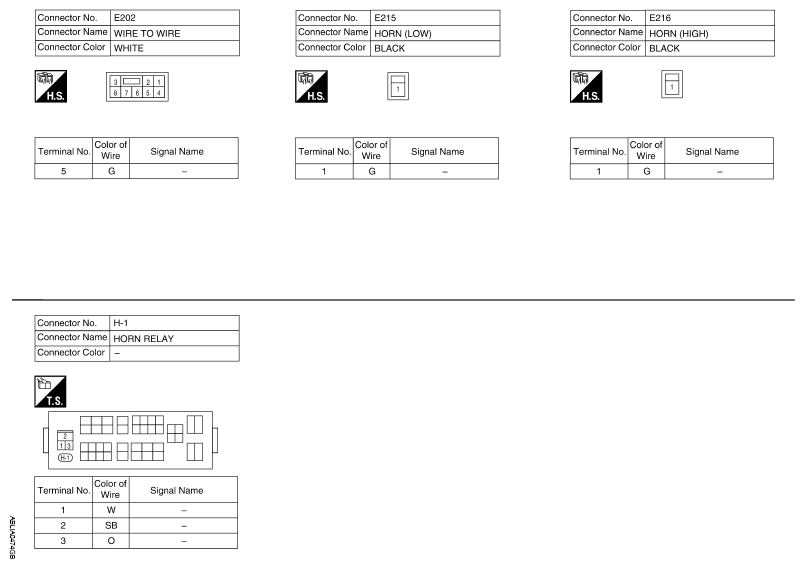

Fig 4: Identifying Horn Connector Terminals (3 Of 3)
G05878754Courtesy of NISSAN MOTOR CO., U.S.A.
