Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license lamp finisher (1). Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the inner bracket screws (A), and then remove inner bracket (2) from license lamp finisher (1).
  3. Remove the trunk lid request switch screw (B), and then remove trunk lid request switch (3) from inner bracket (2).

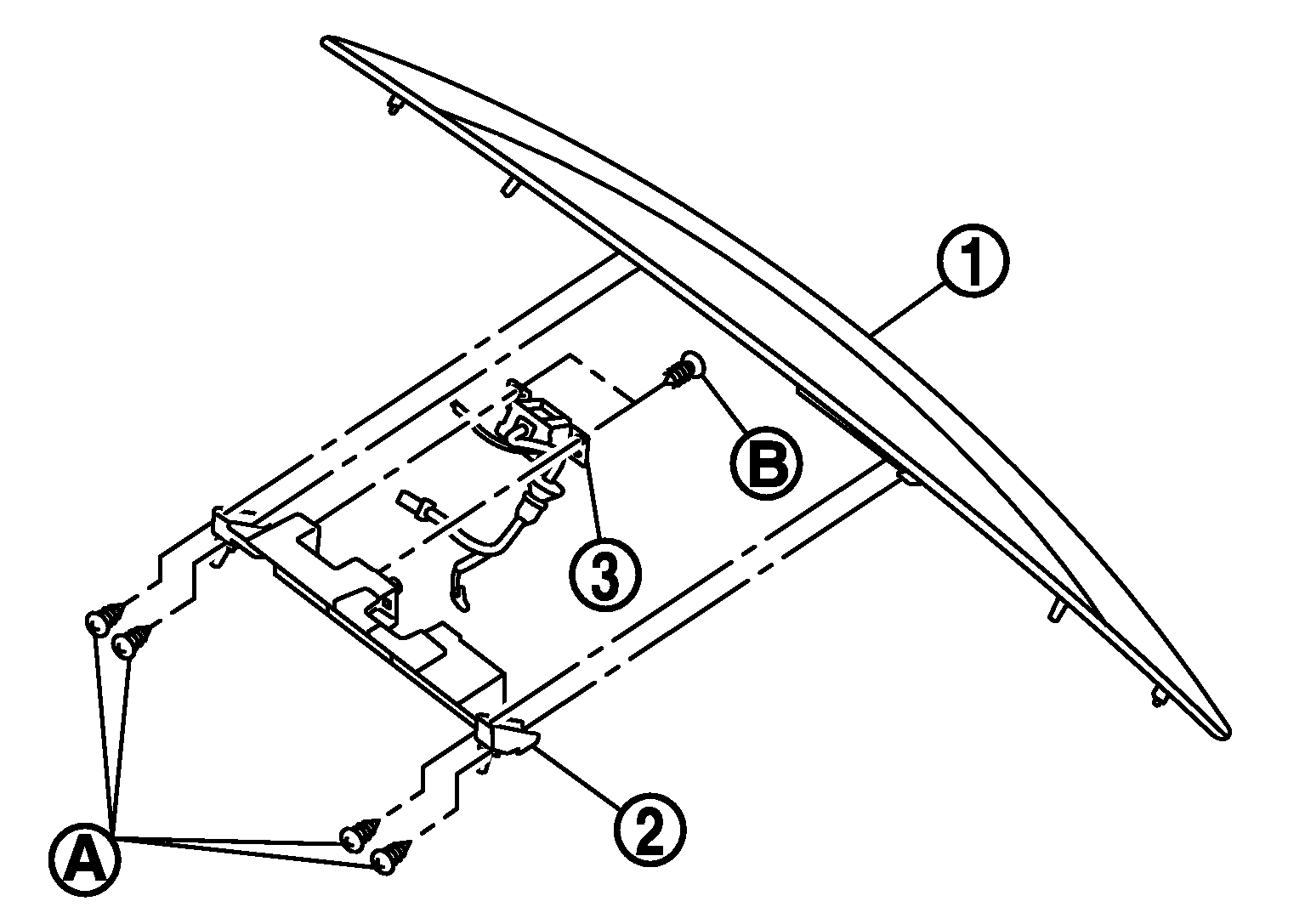

Fig 1: Identifying Trunk Lid Request Switch Screw, Trunk Lid Request Switch And Inner Bracket
G05208438Courtesy of NISSAN MOTOR CO., U.S.A.
