TRUNK LID ASSEMBLY: Adjustment: Notes
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

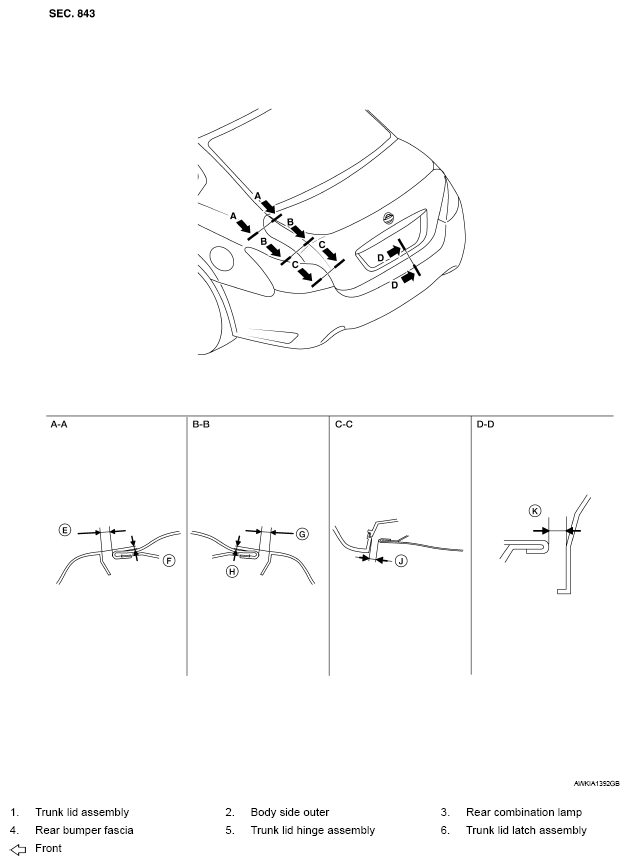

STANDARD SPECIFICATION
| Unit: mm (in) | |||
|---|---|---|---|
| Section | Item | Standard | Right/left clearance (MAX) |
| A - A | E | 4.0 ± 1.0 (0.16 ± 0.04) | ≤2.0 (0.08) |
| F | -0.5 ± 1.0 (-0.02 ± 0.04) | ≤2.0 (0.08) | |
| B - B | G | 4.5 ± 1.0 (0.18 ± 0.04) | ≤2.0 (0.08) |
| H | -0.5 ± 1.0 (-0.02 ± 0.04) | ≤2.0 (0.08) | |
| C - C | J | 5.0 ± 1.5 (0.20 ± 0.06) | ≤2.0 (0.08) |
| D - D | K | 7.0 ± 2.0 (0.28 ± 0.08) | - |
