Removal and Installation: Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument driver lower panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the trunk lid opener switch (1) from instrument driver lower panel, and then remove pawl (A). Press trunk lid opener switch (1) front side to disengage from instrument driver lower panel.

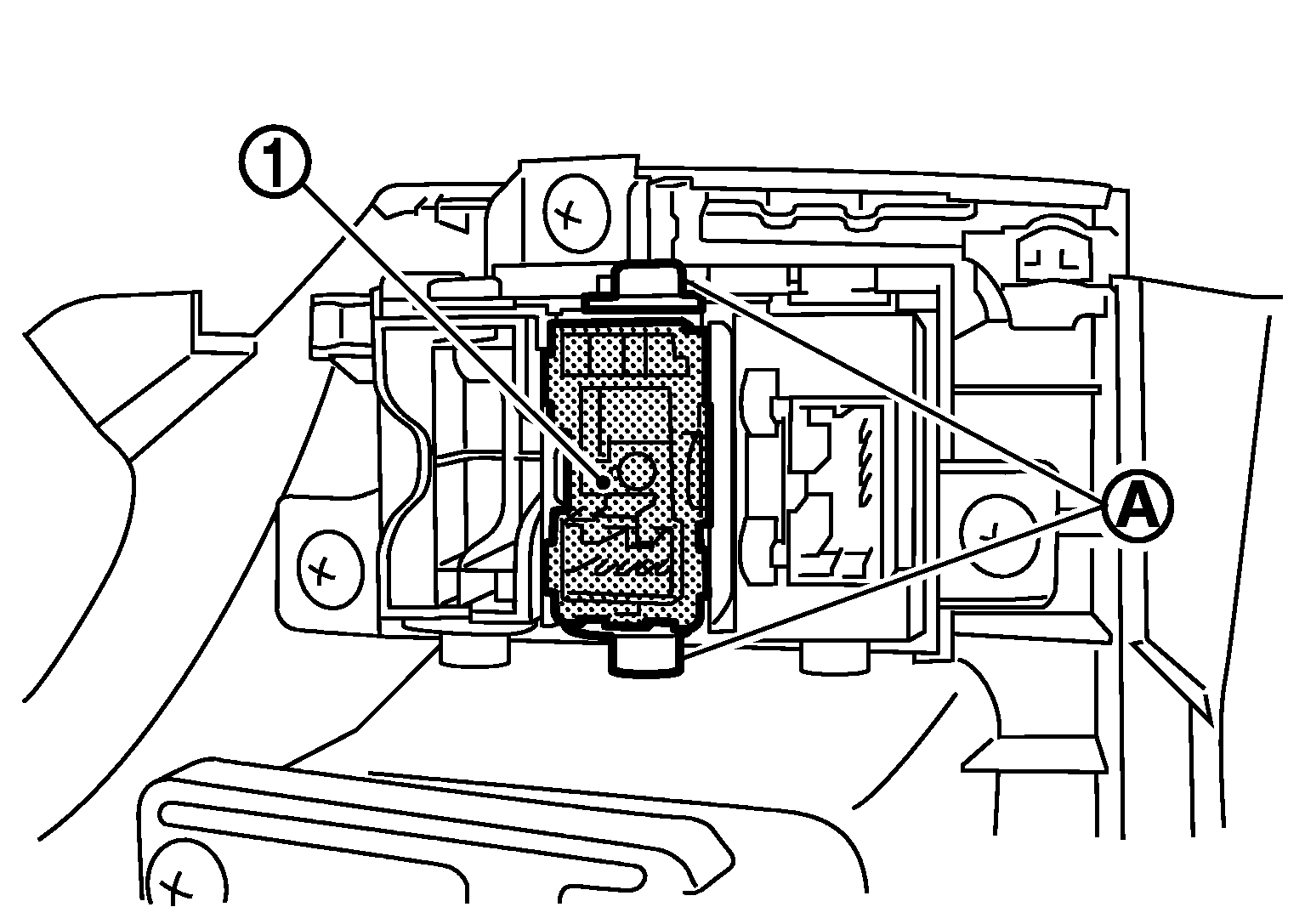

Fig 1: Identifying Trunk Lid Opener Switch And Instrument Driver Lower Pawl
G05208439Courtesy of NISSAN MOTOR CO., U.S.A.
