List Of Operation Related Parts

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Parts marked with x are the parts related to operation.

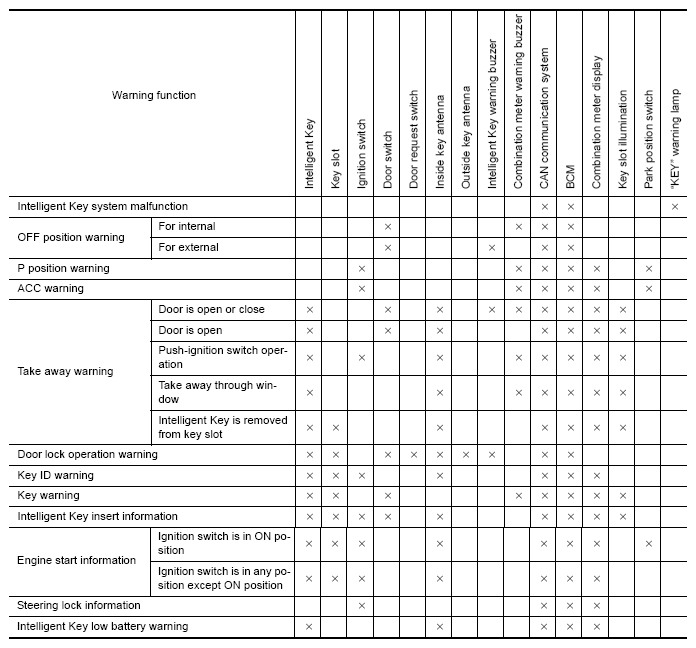

Fig 1: Operation Related Parts List
G05870196Courtesy of NISSAN MOTOR CO., U.S.A.
