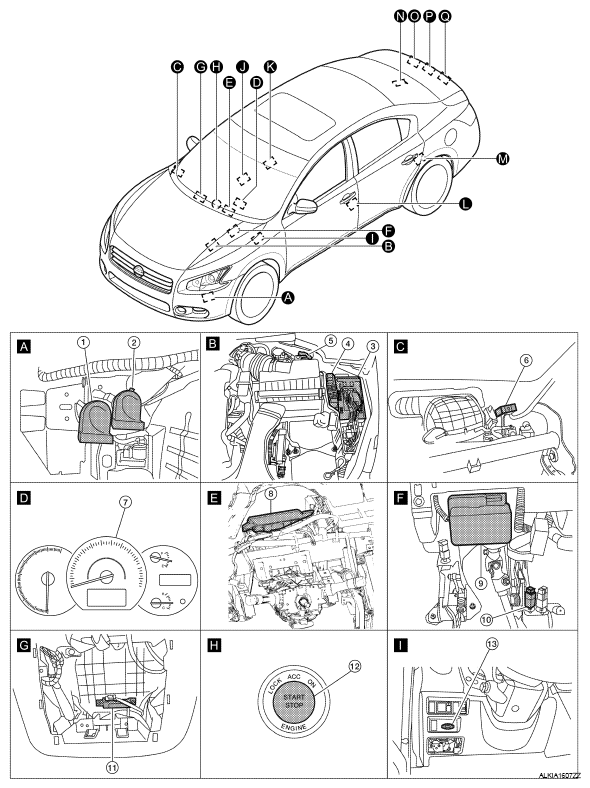

Fig 1: Identifying Warning Function Component Parts Location (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

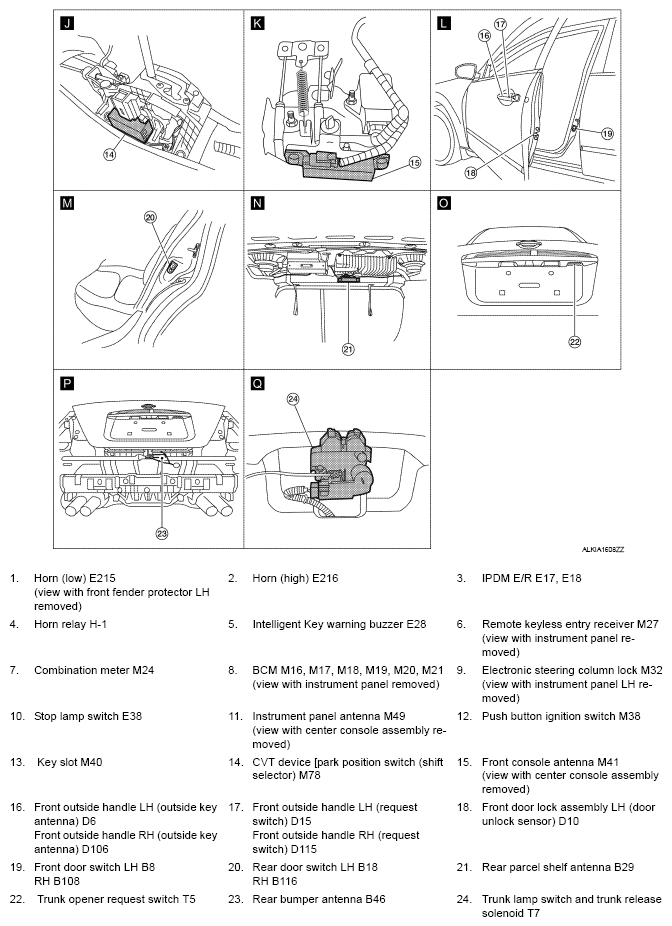

Fig 2: Identifying Warning Function Component Parts Location (2 Of 2)
