Outside Key Antenna Detection Area

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The outside key antenna detection area of trunk open function is in the range of approximately 80 cm (31.50 in) surrounding trunk opener request switch (1). However, this operating range depends on the ambient conditions.

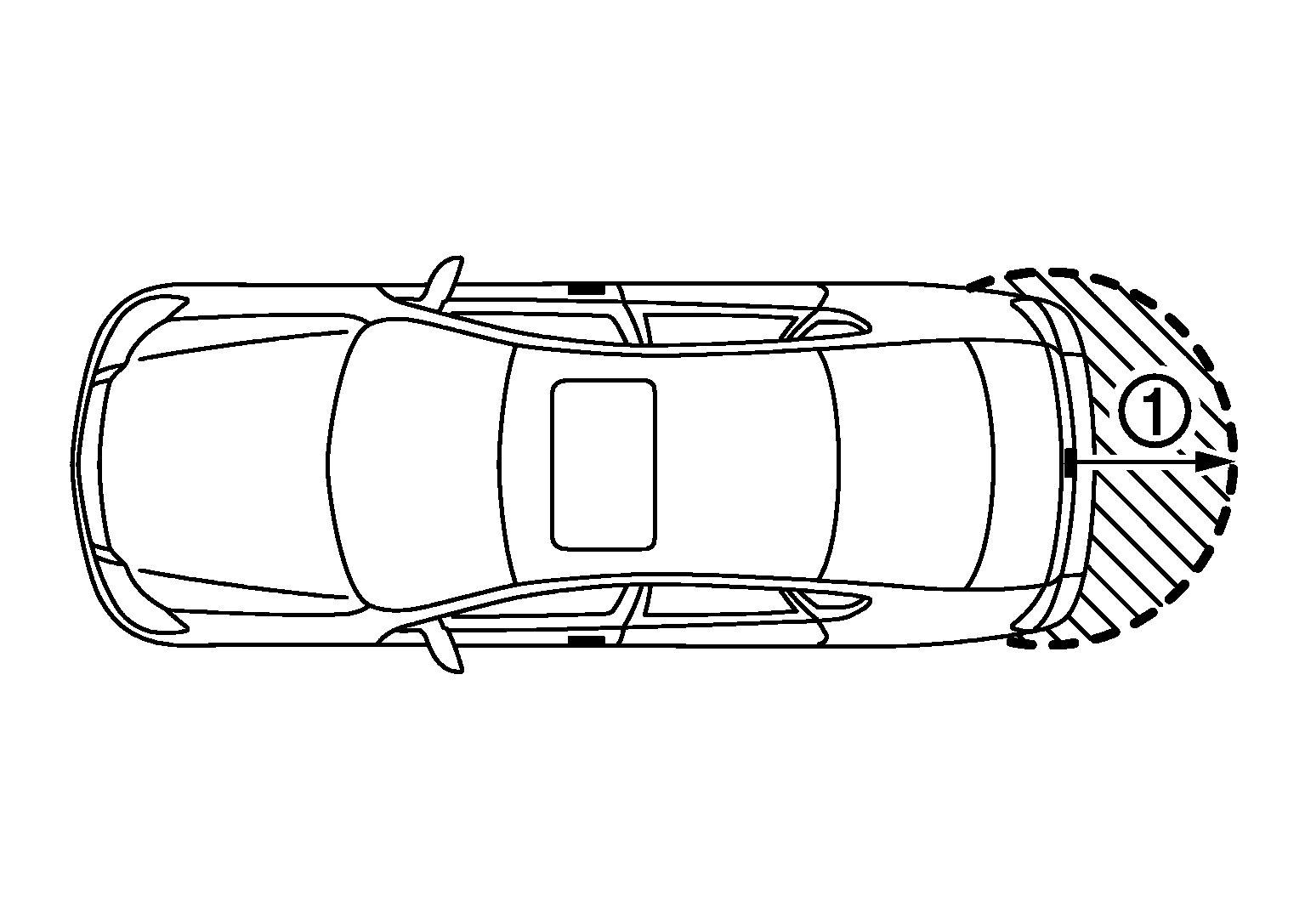

Fig 1: Identifying Trunk Opener Request Switch (Outside Key Antenna Detection Area)
G04888148Courtesy of NISSAN MOTOR CO., U.S.A.
