Wiring Diagram - TRUNK LID OPENER SYSTEM -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

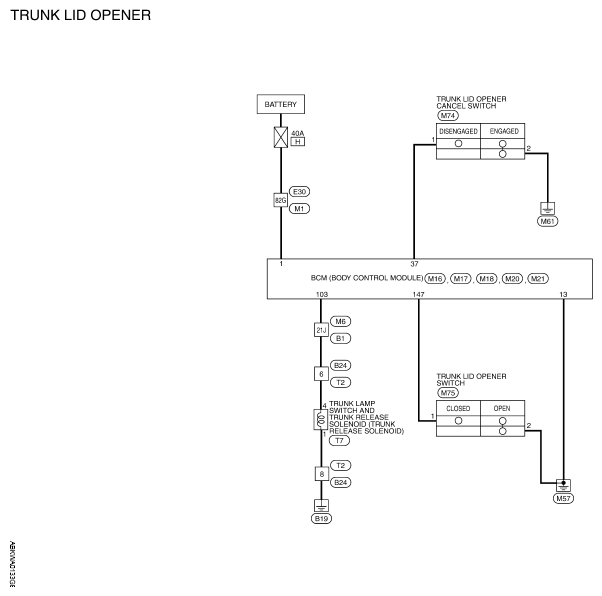

Fig 1: Trunk Lid Opener System - Wiring Diagram
G05870430Courtesy of NISSAN MOTOR CO., U.S.A.

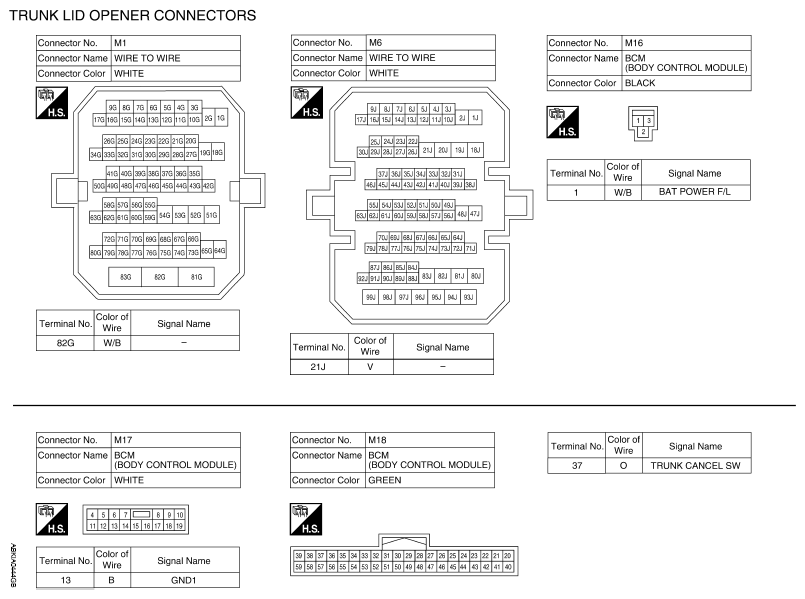

Fig 2: Identifying Trunk Lid Opener System Connector Terminal (1 Of 3)
G05870431Courtesy of NISSAN MOTOR CO., U.S.A.

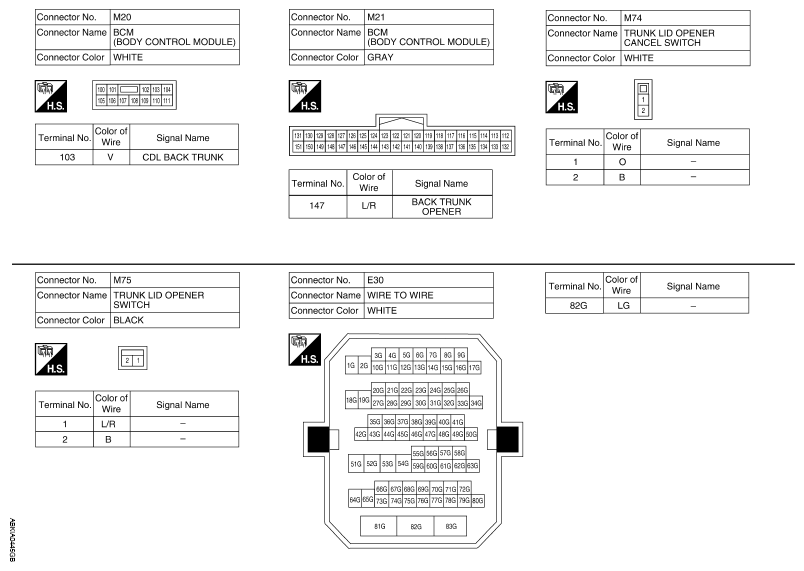

Fig 3: Identifying Trunk Lid Opener System Connector Terminal (2 Of 3)
G05870432Courtesy of NISSAN MOTOR CO., U.S.A.

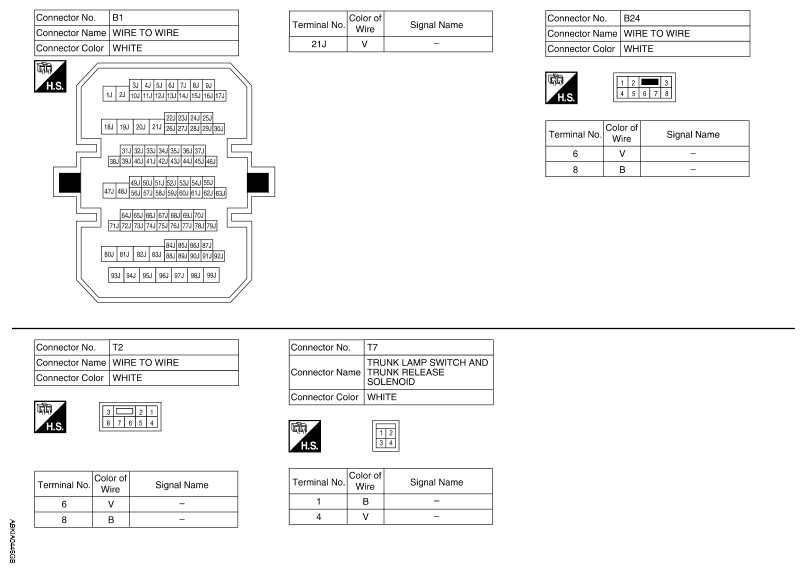

Fig 4: Identifying Trunk Lid Opener System Connector Terminal (3 Of 3)
G05870433Courtesy of NISSAN MOTOR CO., U.S.A.
