Wiring Diagram - POWER DOOR LOCK SYSTEM -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

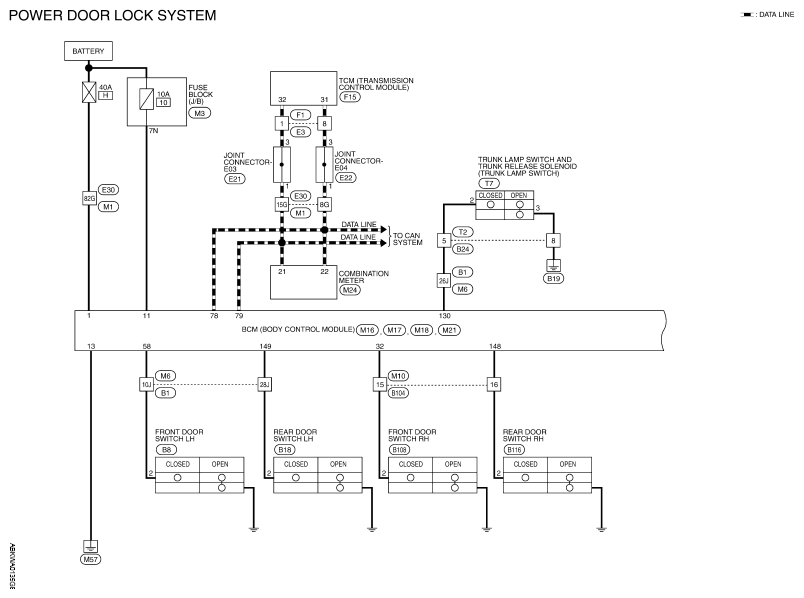

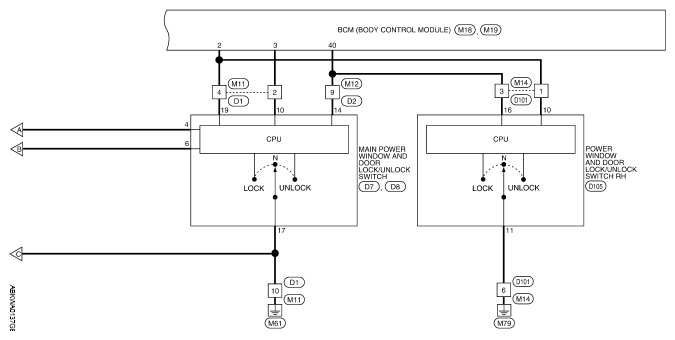

Fig 1: Power Door Lock System - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

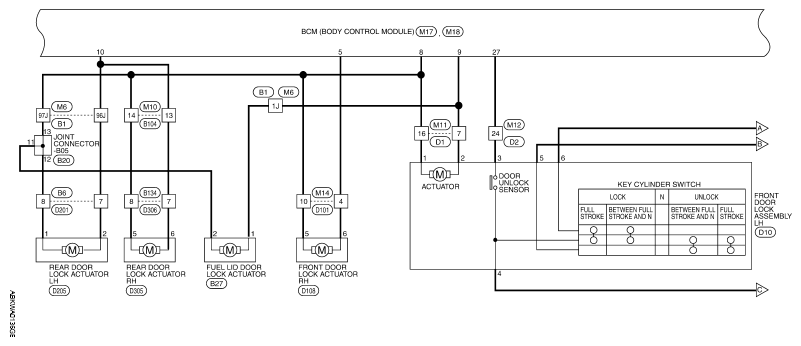

Fig 2: Power Door Lock System - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Power Door Lock System - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

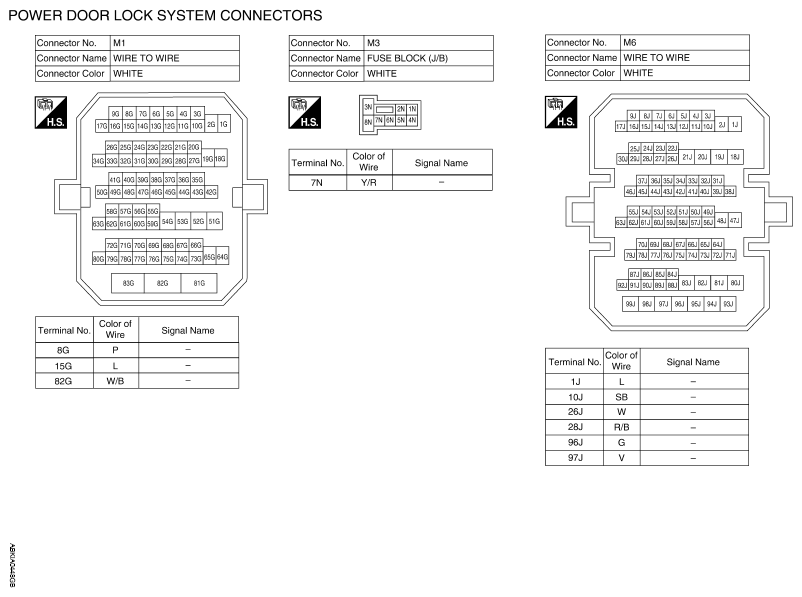

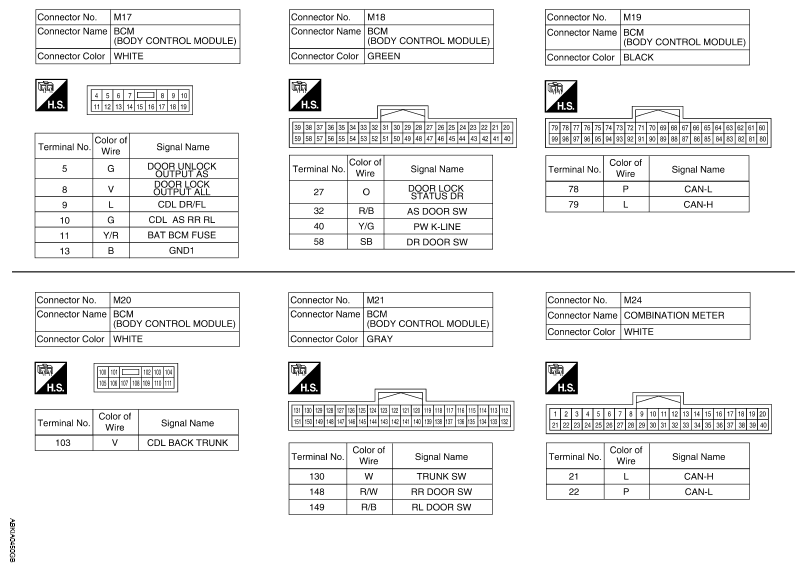

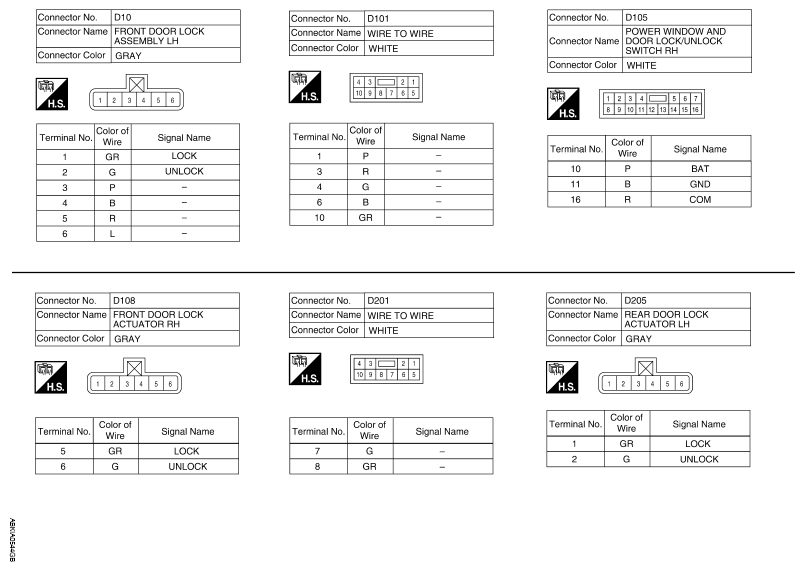

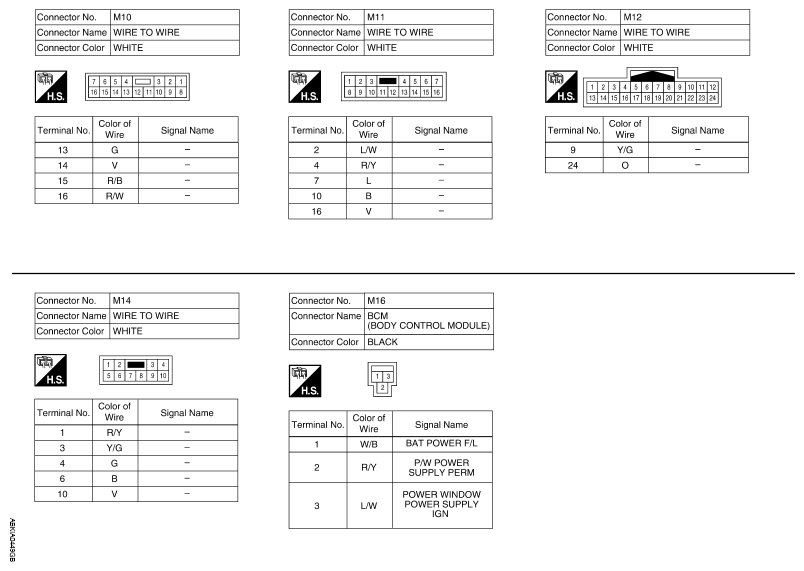

Fig 4: Identifying Power Door Lock System Connector Terminal (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

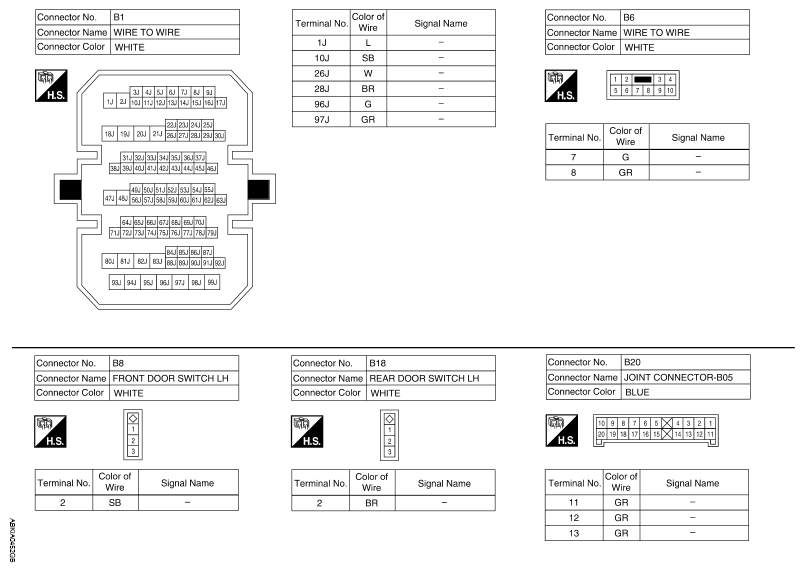

Fig 5: Identifying Power Door Lock System Connector Terminal (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

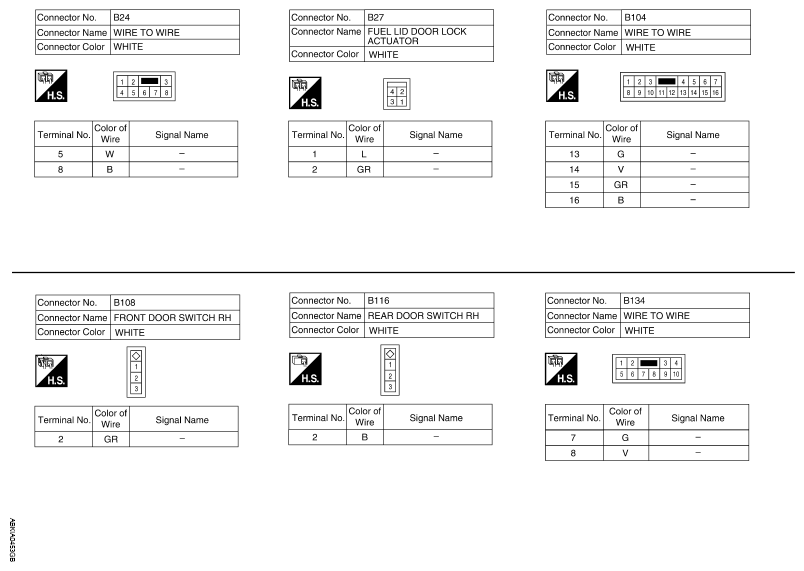

Fig 6: Identifying Power Door Lock System Connector Terminal (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

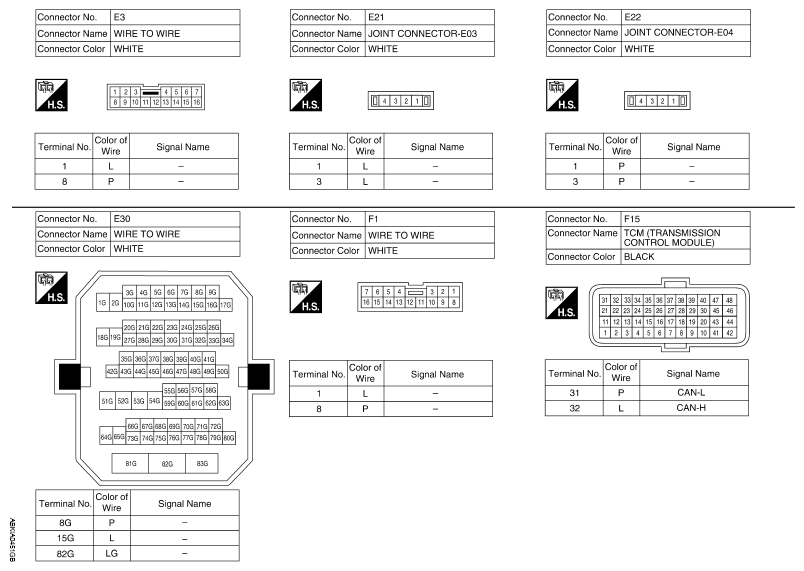

Fig 7: Identifying Power Door Lock System Connector Terminal (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

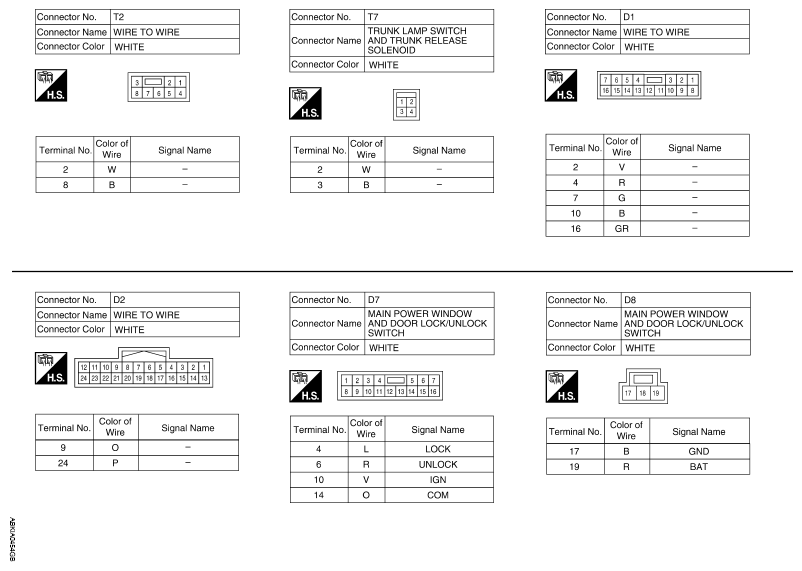

Fig 8: Identifying Power Door Lock System Connector Terminal (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Power Door Lock System Connector Terminal (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Power Door Lock System Connector Terminal (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Power Door Lock System Connector Terminal (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

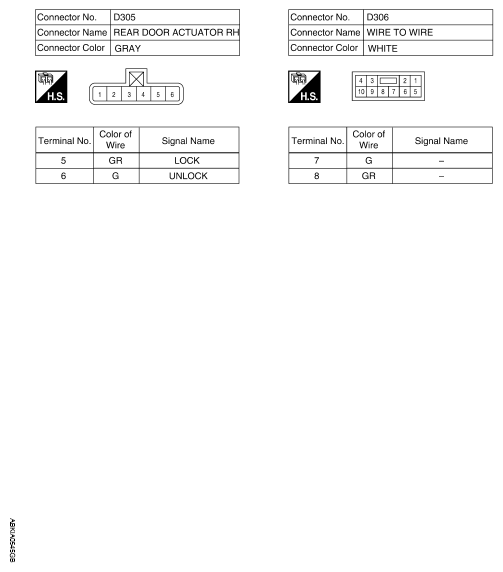

Fig 12: Identifying Power Door Lock System Connector Terminal (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
