Wiring Diagram - INTELLIGENT KEY SYSTEM -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

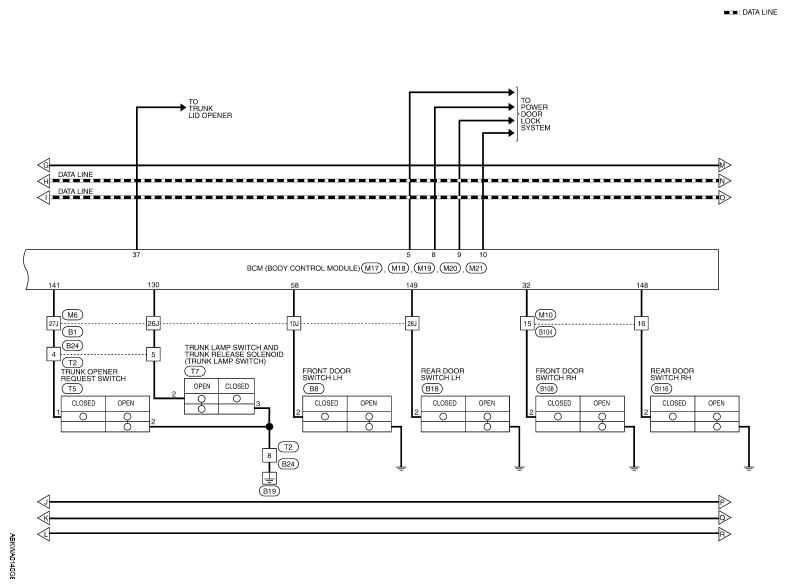

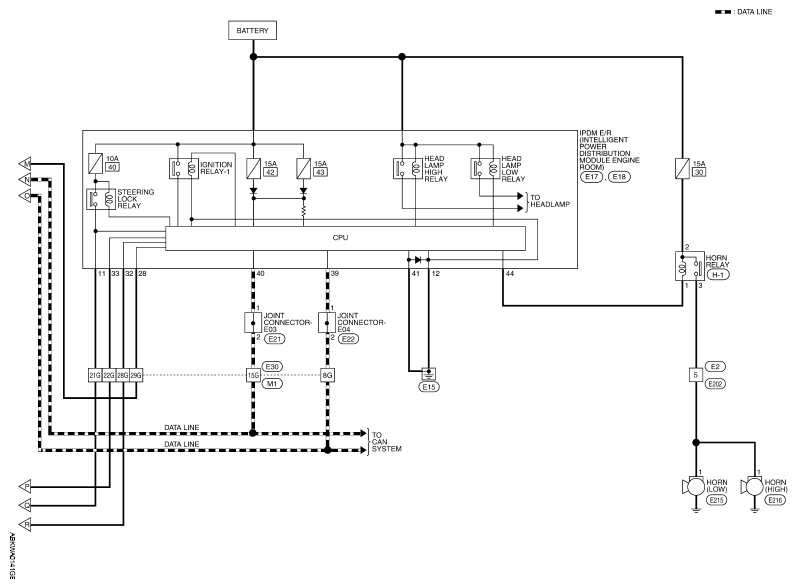

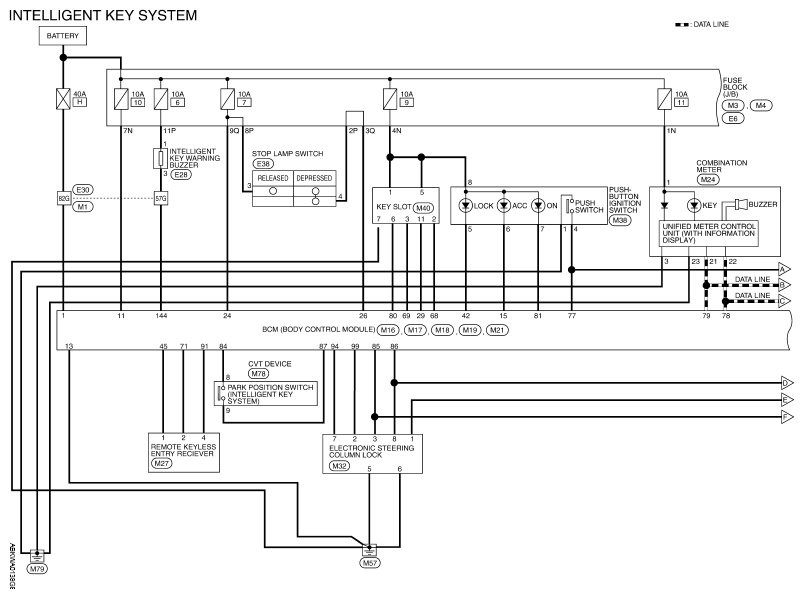

Fig 1: Intelligent Key System - Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

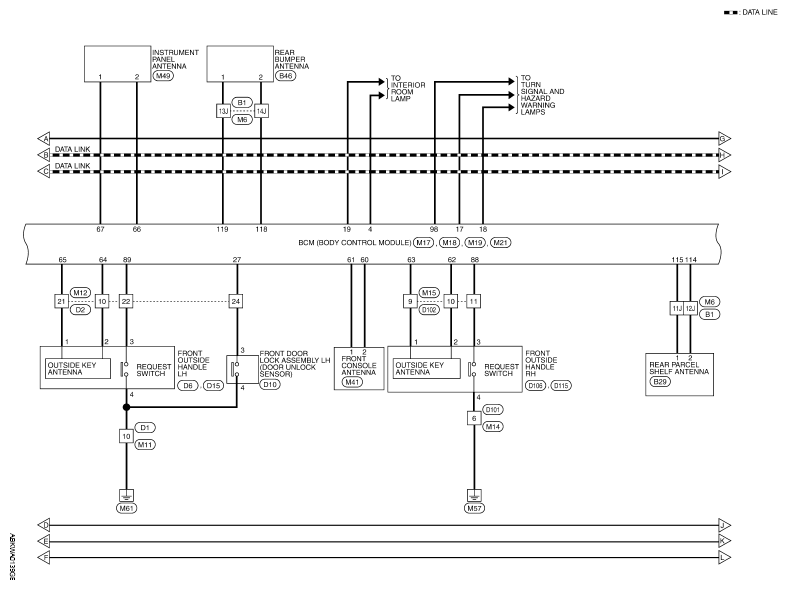

Fig 2: Intelligent Key System - Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Intelligent Key System - Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Intelligent Key System - Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

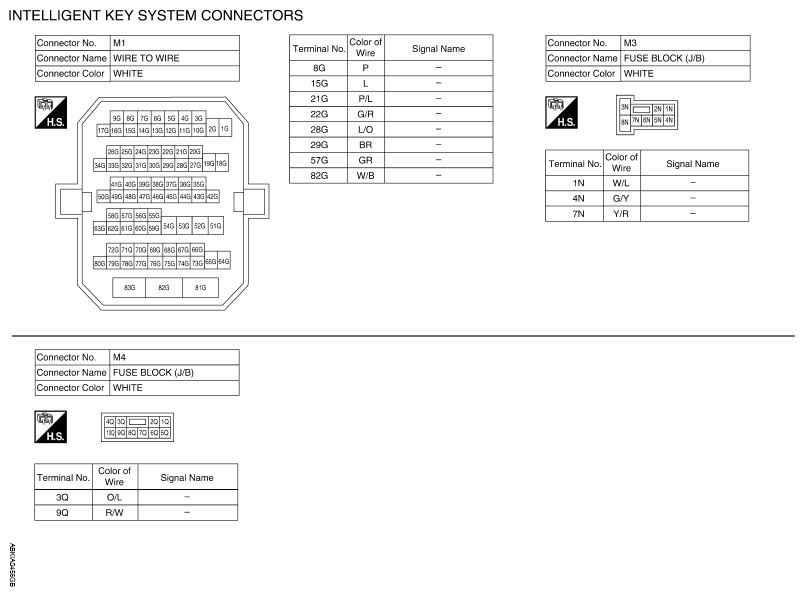

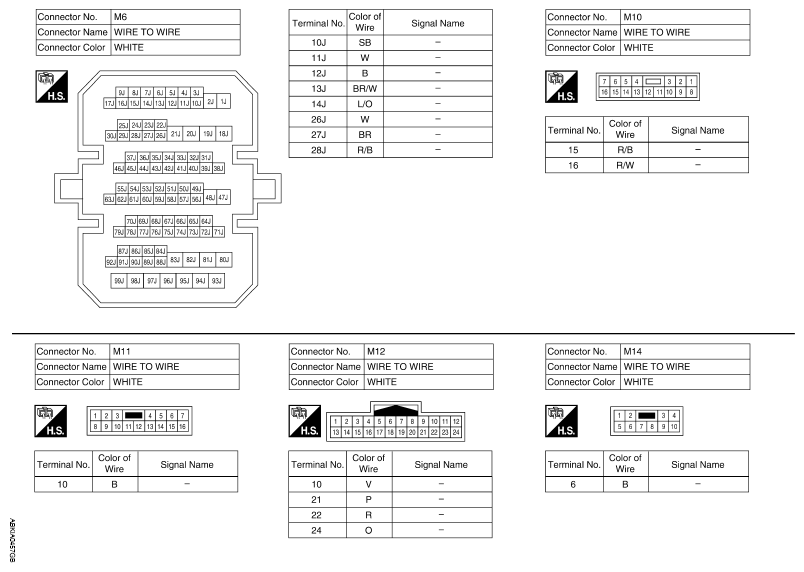

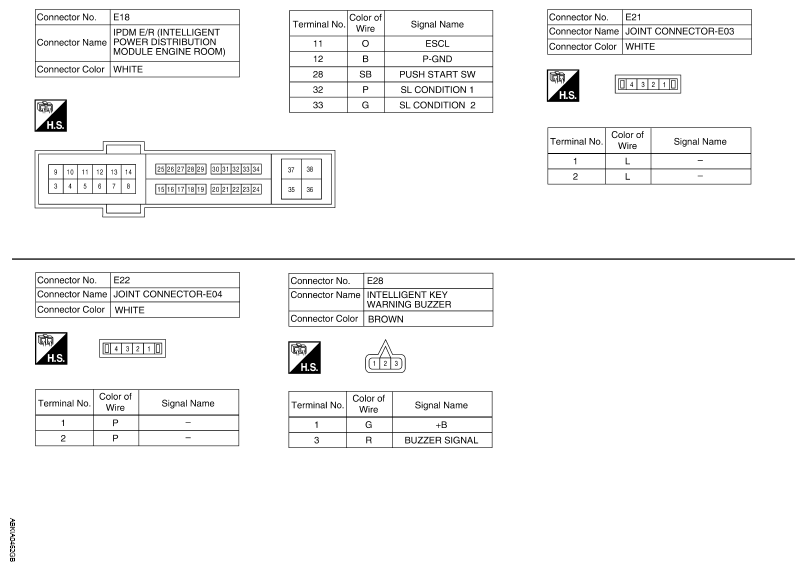

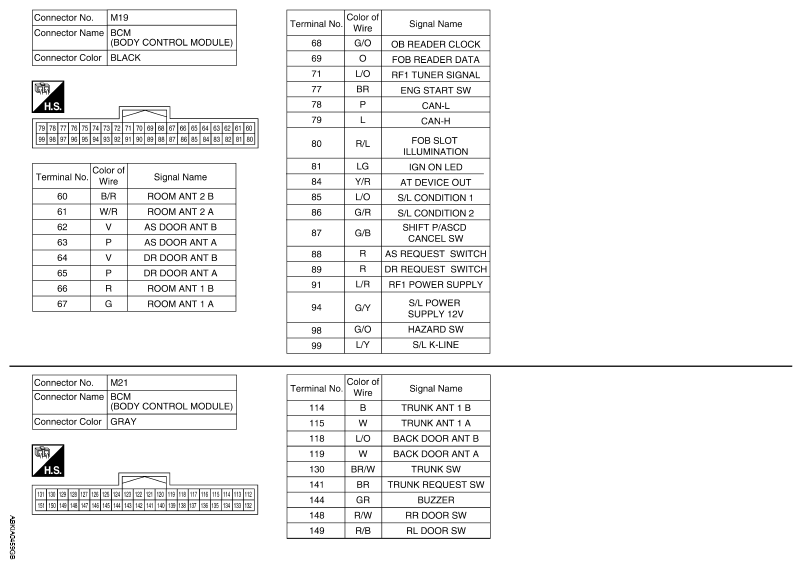

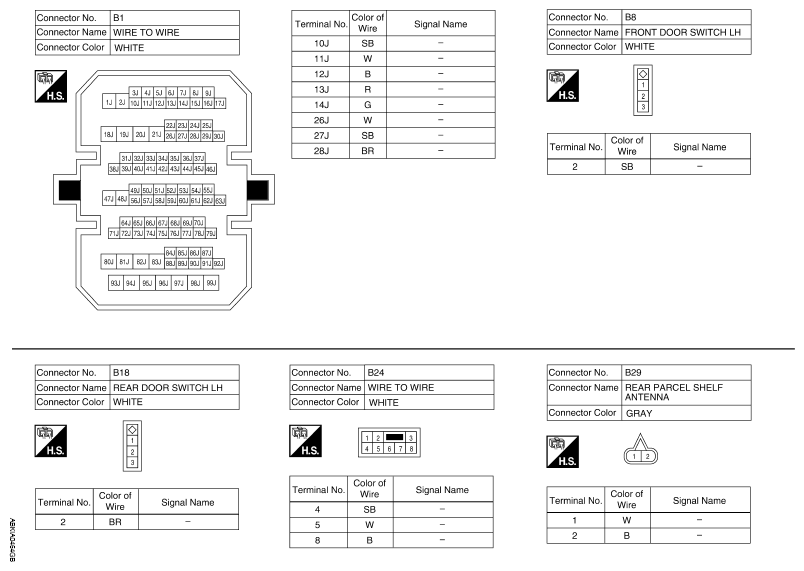

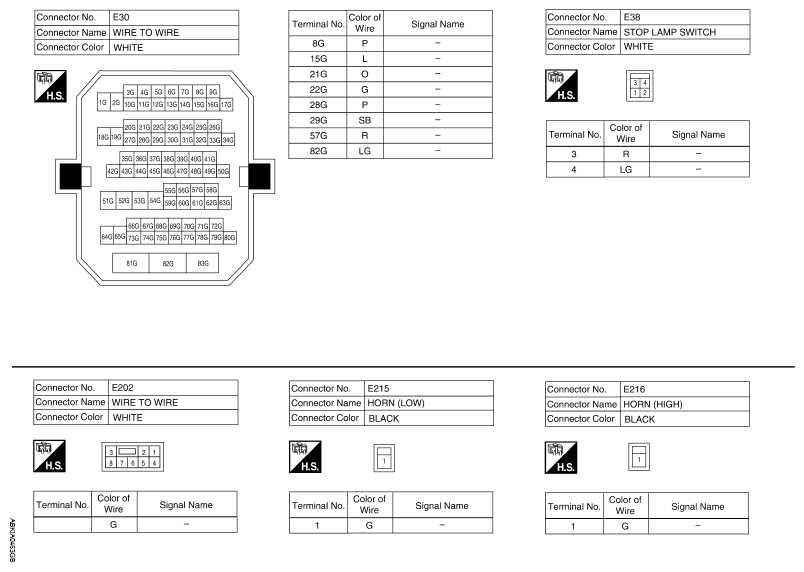

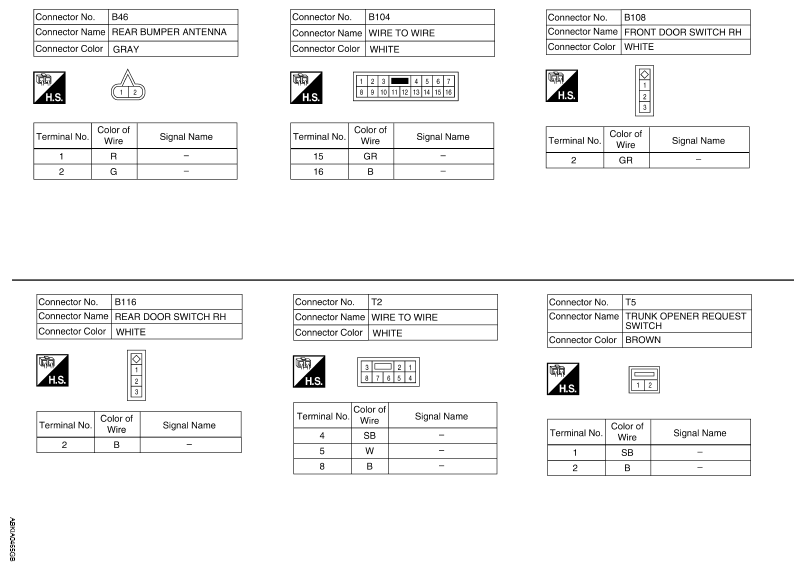

Fig 5: Identifying Intelligent Key System Connector Terminal (1 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

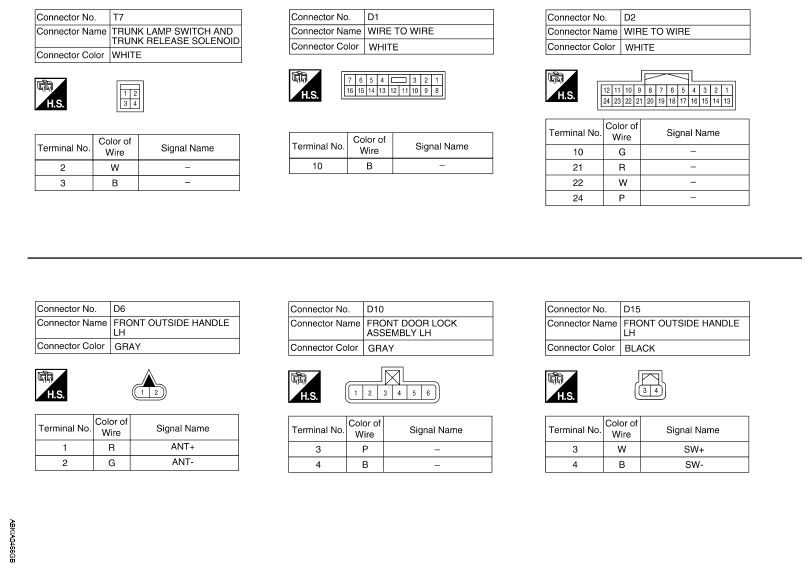

Fig 6: Identifying Intelligent Key System Connector Terminal (2 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

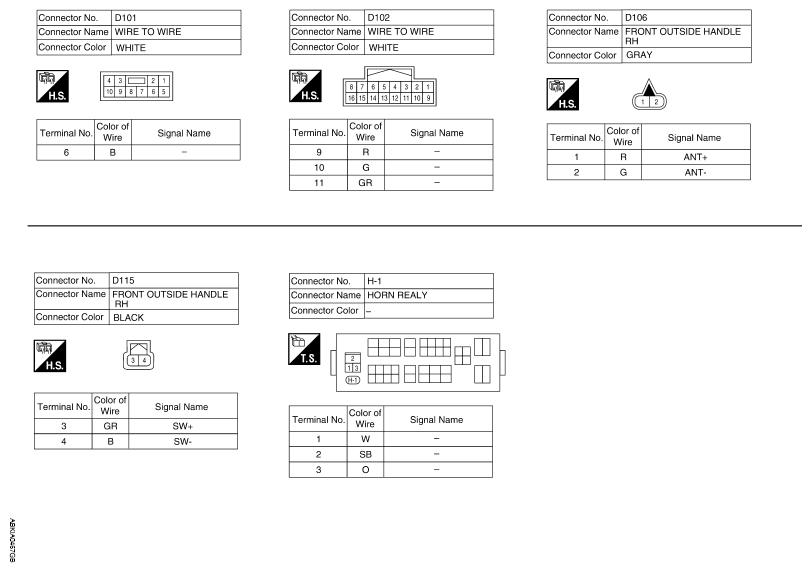

Fig 7: Identifying Intelligent Key System Connector Terminal (3 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

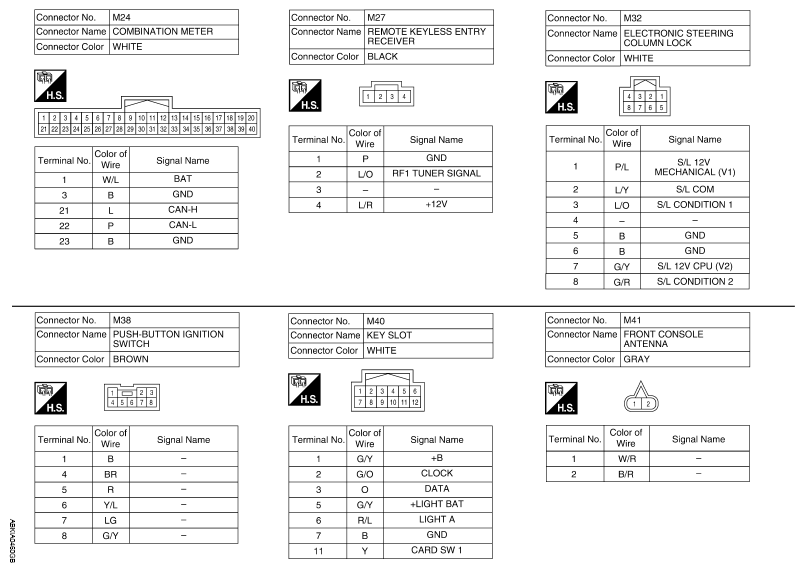

Fig 8: Identifying Intelligent Key System Connector Terminal (4 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

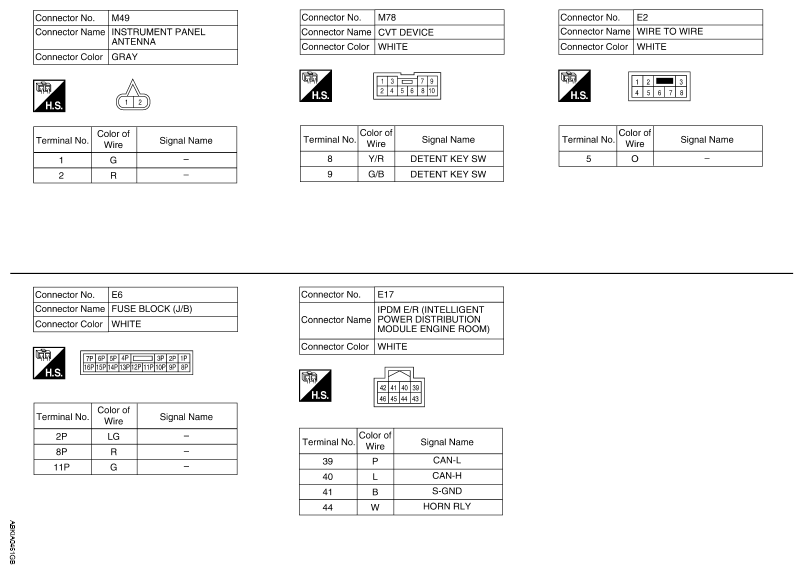

Fig 9: Identifying Intelligent Key System Connector Terminal (5 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

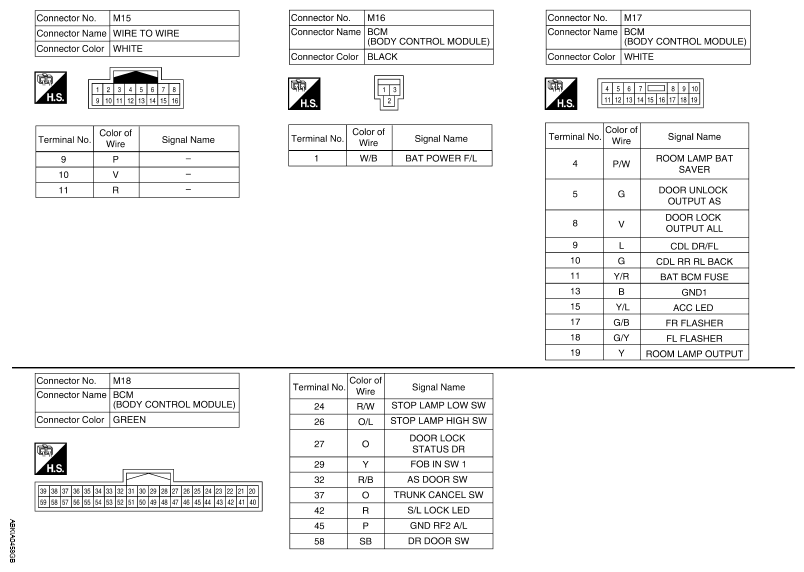

Fig 10: Identifying Intelligent Key System Connector Terminal (6 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intelligent Key System Connector Terminal (7 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intelligent Key System Connector Terminal (8 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Intelligent Key System Connector Terminal (9 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intelligent Key System Connector Terminal (10 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Intelligent Key System Connector Terminal (11 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intelligent Key System Connector Terminal (12 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.
