HOMELINK Universal Transceiver: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

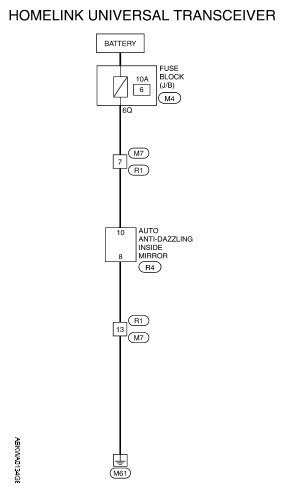

Fig 1: Homelink Universal Transceiver - Wiring Diagram
G05870325Courtesy of NISSAN MOTOR CO., U.S.A.

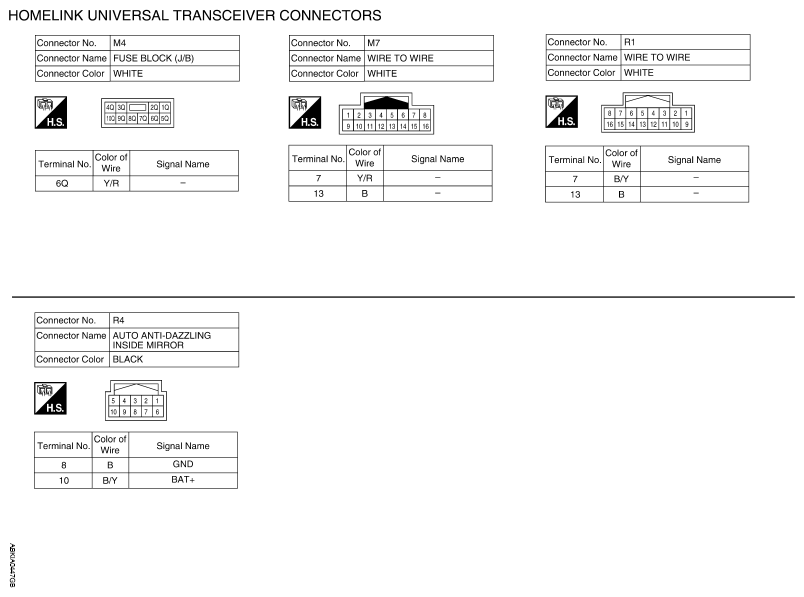

Fig 2: Identifying Homelink Universal Transceiver Connector Terminal
G05870326Courtesy of NISSAN MOTOR CO., U.S.A.
