Diagnosis Procedure
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK POWER SUPPLY
- Disconnect auto anti-dazzling inside mirror (Homelink universal transceiver) connector.

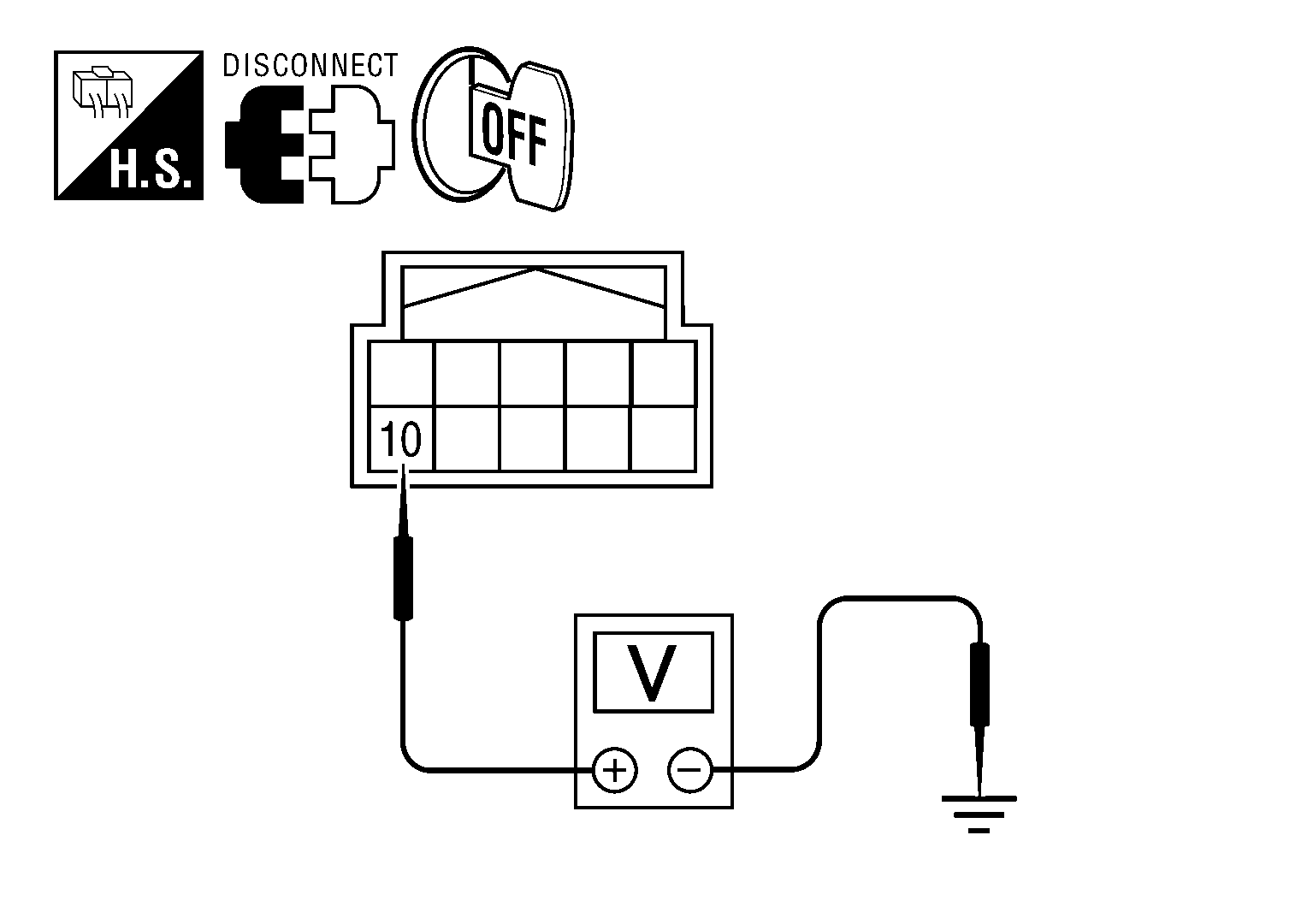

- Check voltage between auto anti-dazzling inside mirror (Homelink universal transceiver) harness connector and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
VOLTAGE SPECIFICATIONAuto anti-dazzling inside mirror (Homelink universal transceiver) connector Terminal Condition Voltage (V) (Approx.) R4 10 Ground Ignition switch position: LOCK Battery voltage Is the inspection result normal?
YES: GO TO 2
NO: Check the following.
- 10A fuse [No. 6 located in the fuse block (J/B)]
- Harness for open or short between fuse and auto anti-dazzling inside mirror (Homelink universal transceiver).
- CHECK GROUND CIRCUIT
Check continuity between auto anti-dazzling inside mirror (Homelink universal transceiver) harness connector and ground.
CONTINUITY CHARTAuto anti-dazzling inside mirror (Homelink universal transceiver) connector Terminal Ground Continuity R4 8 Yes Courtesy of NISSAN MOTOR CO., U.S.A.
Is the inspection result normal?
YES: GO TO 3
NO: Repair harness.
- CHECK INTERMITTENT INCIDENT
Refer to "INTERMITTENT INCIDENT ".
Inspection End.
