Auto Anti-Dazzling Inside Mirror System
>>
Wiring Diagram - Inside Mirror Without Homelink Universal Transceiver
Wiring Diagram - Inside Mirror Without Homelink Universal Transceiver
WARNING:
This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

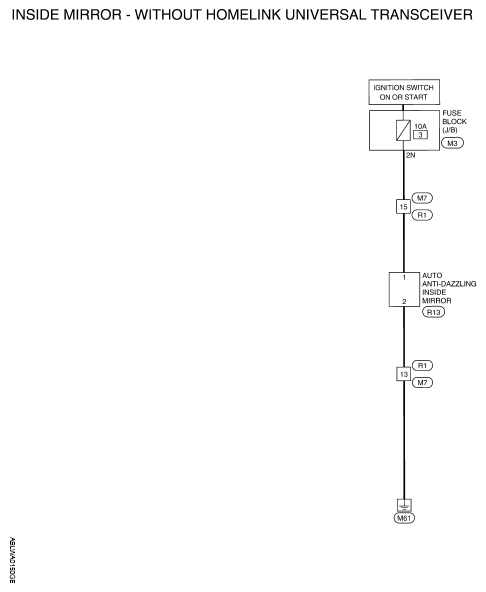

Fig 1: Inside Mirror - Without Homelink Universal Transceiver - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

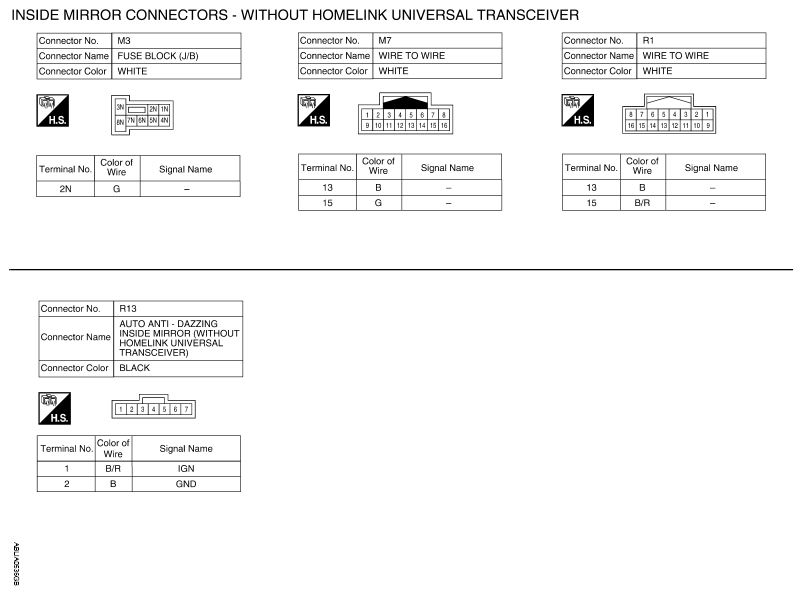

Fig 2: Identifying Inside Mirror Connectors - Without Homelink Universal Transceiver
Courtesy of NISSAN MOTOR CO., U.S.A.
