Wiring Diagram - Inside Mirror With Homelink Universal Transceiver

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

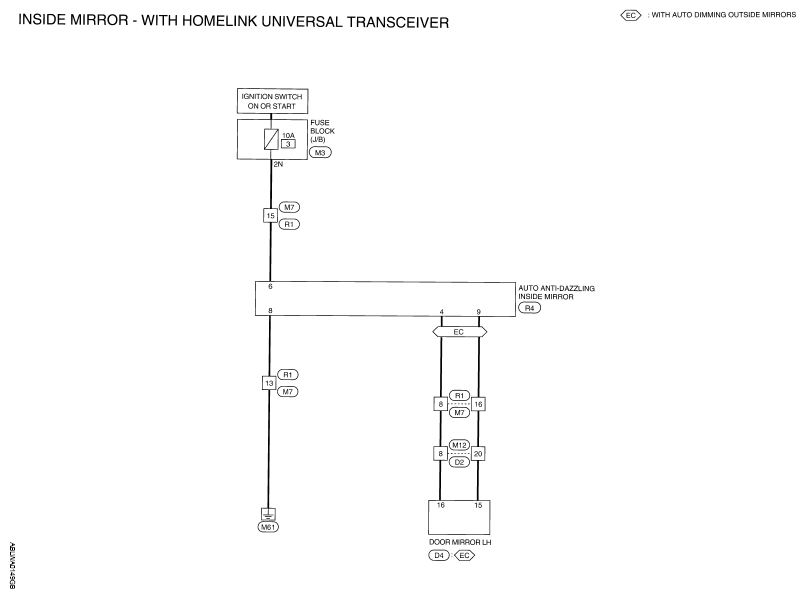

Fig 1: Inside Mirror - With Homelink Universal Transceiver - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

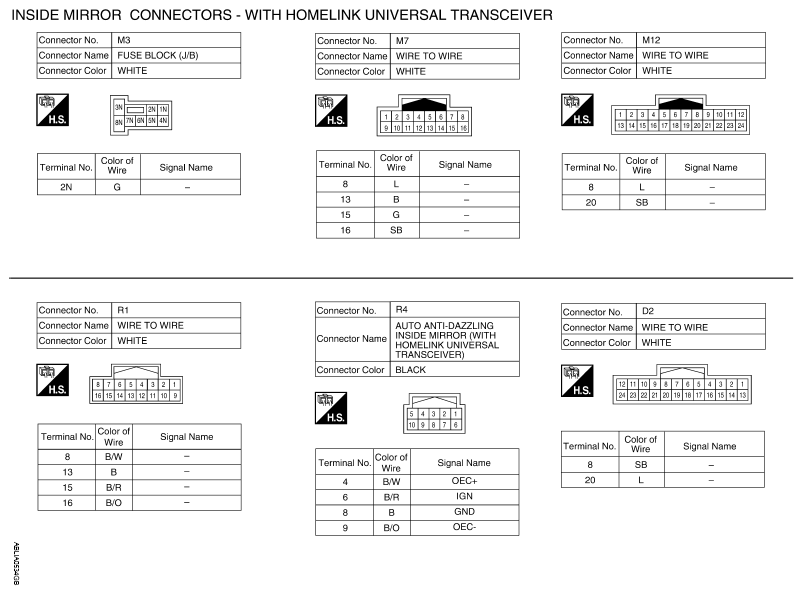

Fig 2: Identifying Inside Mirror Connectors - With Homelink Universal Transceiver (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Inside Mirror Connectors - With Homelink Universal Transceiver (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
