Clip and Fastener

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

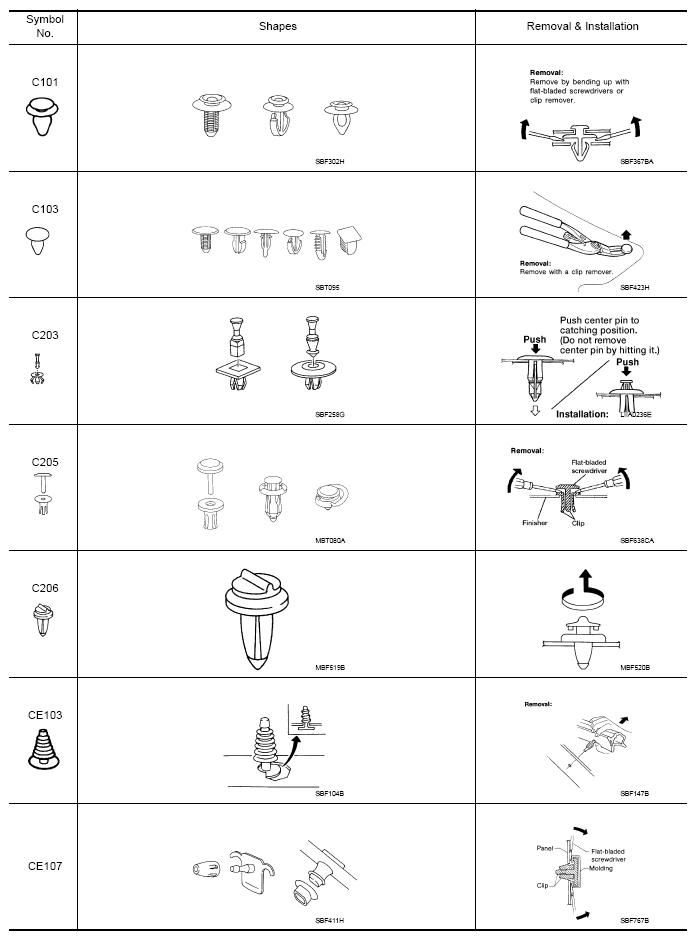

Fig 1: Clip And Fastener Chart (1 Of 2)
G05878301Courtesy of NISSAN MOTOR CO., U.S.A.

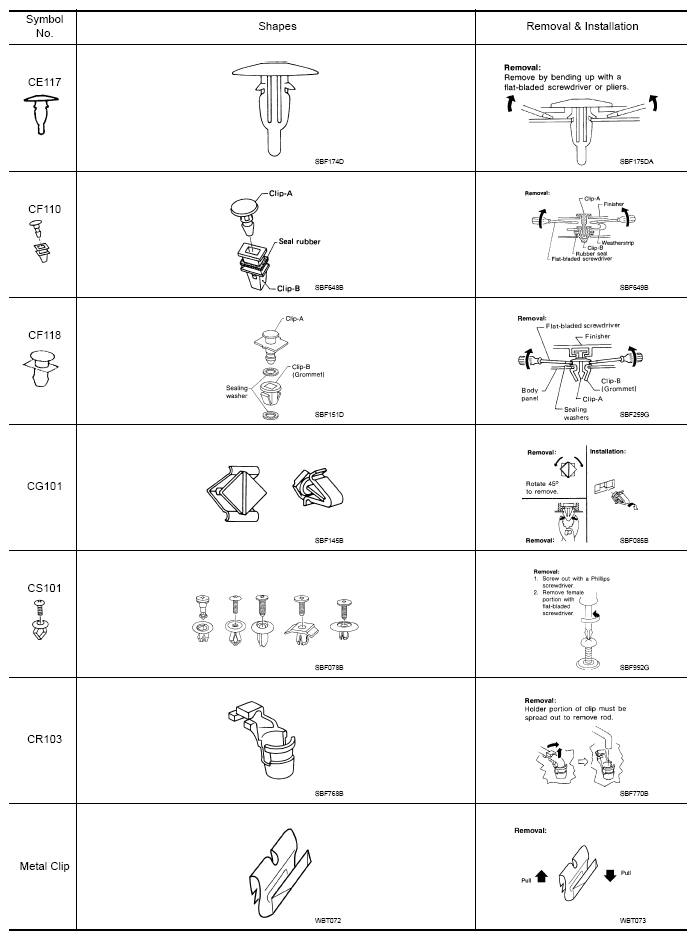

Fig 2: Clip And Fastener Chart (2 Of 2)
G05878302Courtesy of NISSAN MOTOR CO., U.S.A.
