Component Diagnosis: Sunshade: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

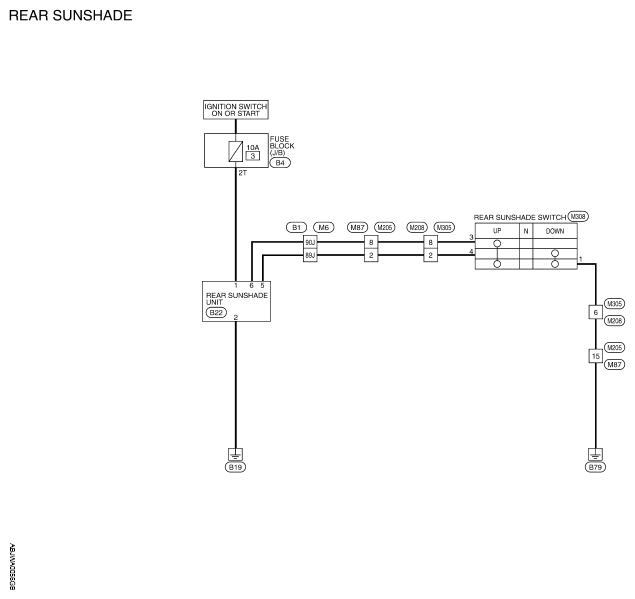

Fig 1: Sunshade - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

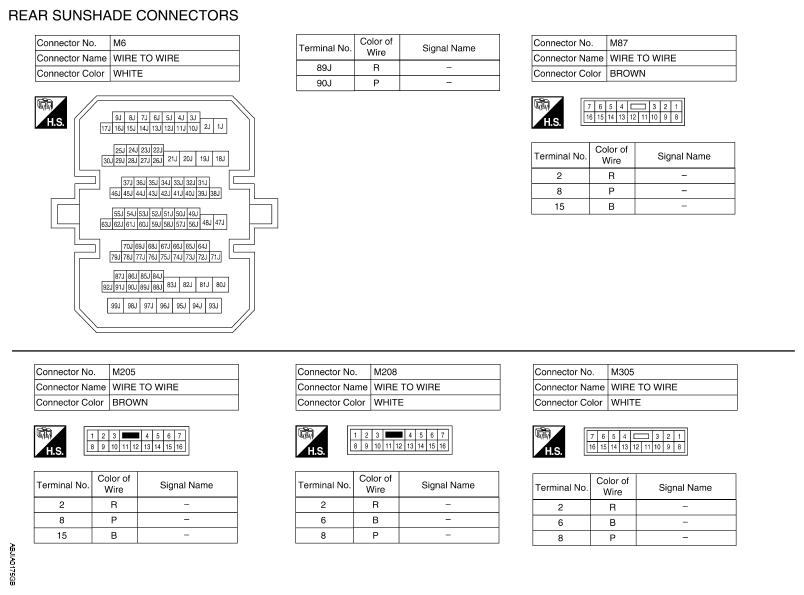

Fig 2: Rear Sunshade Connectors Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

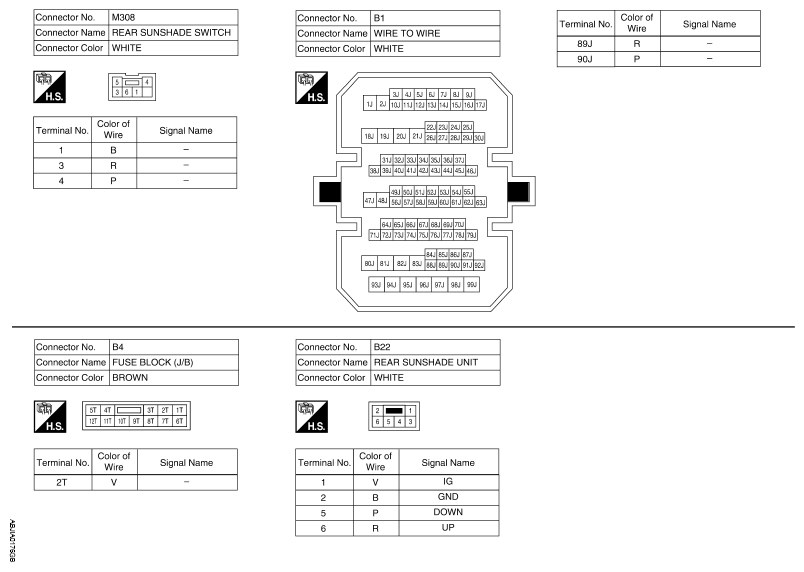

Fig 3: Rear Sunshade Connectors Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
