BCM (Body Control Module): Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

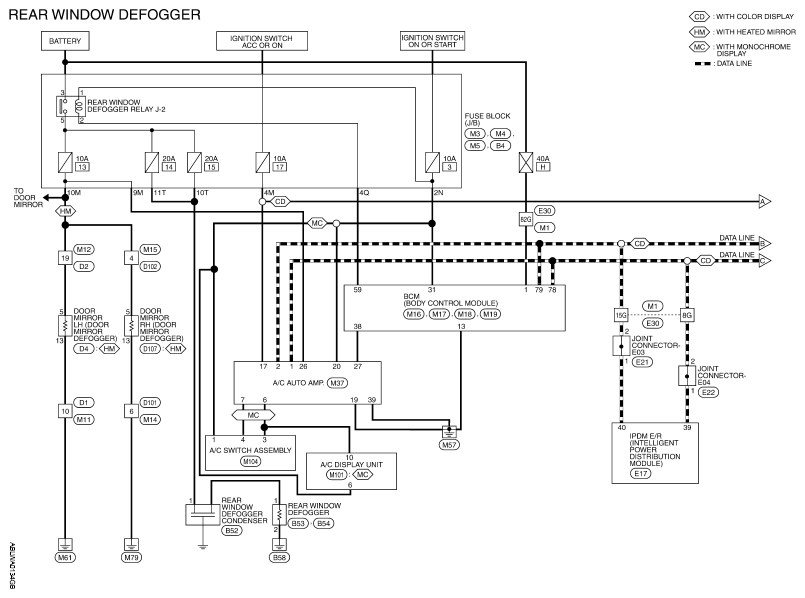

Fig 1: Rear Window Defogger - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

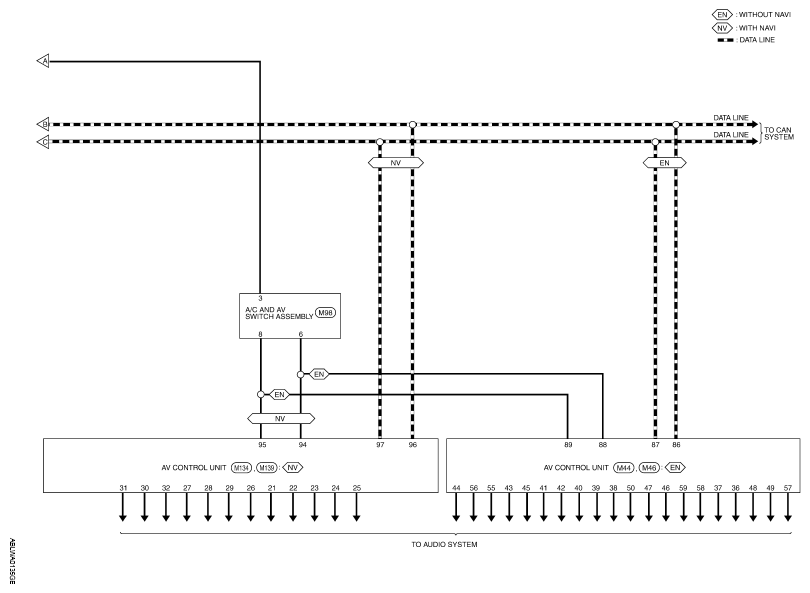

Fig 2: Rear Window Defogger - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

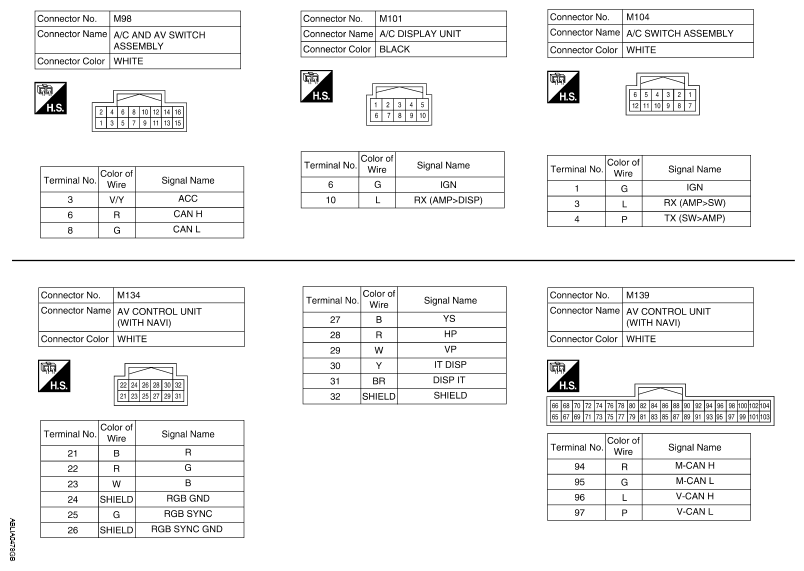

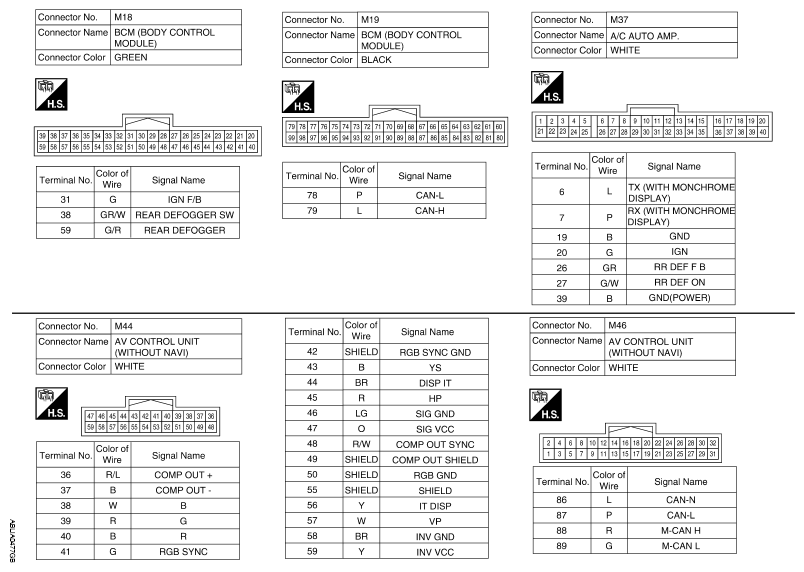

Fig 3: Identifying Rear Window Defogger Connector Terminals (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

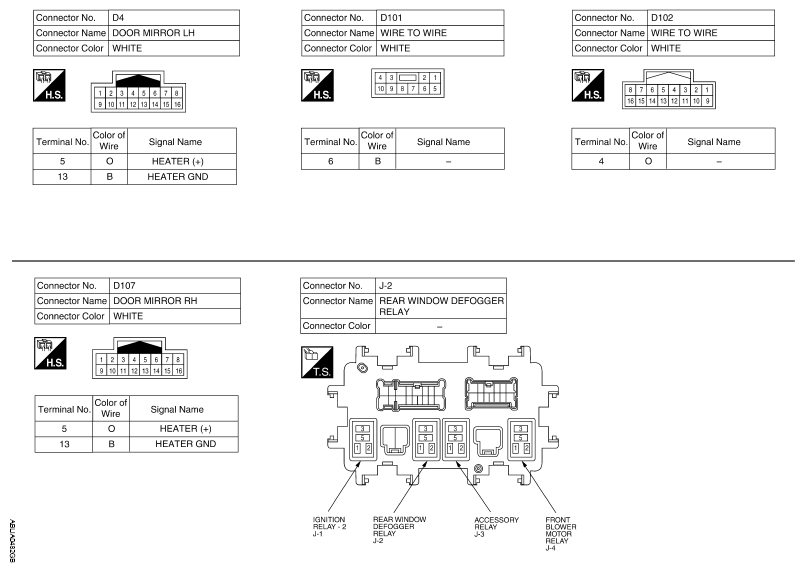

Fig 4: Identifying Rear Window Defogger Connector Terminals (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

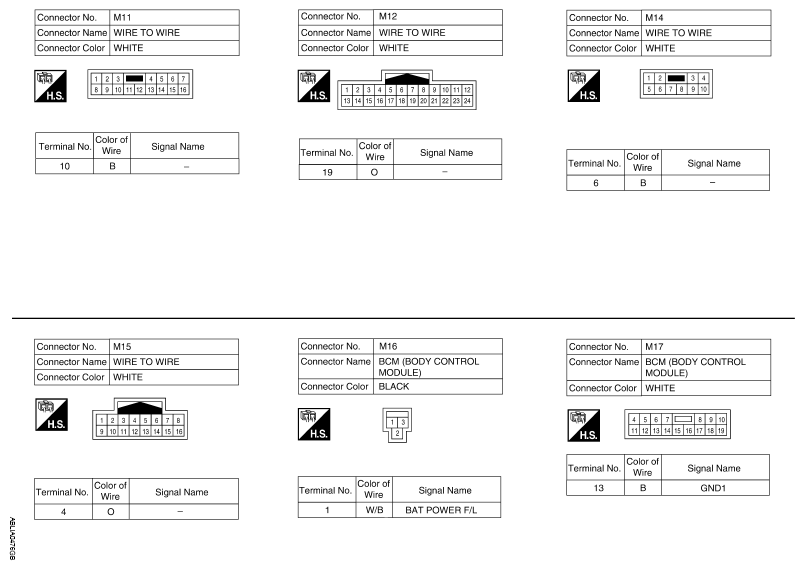

Fig 5: Identifying Rear Window Defogger Connector Terminals (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

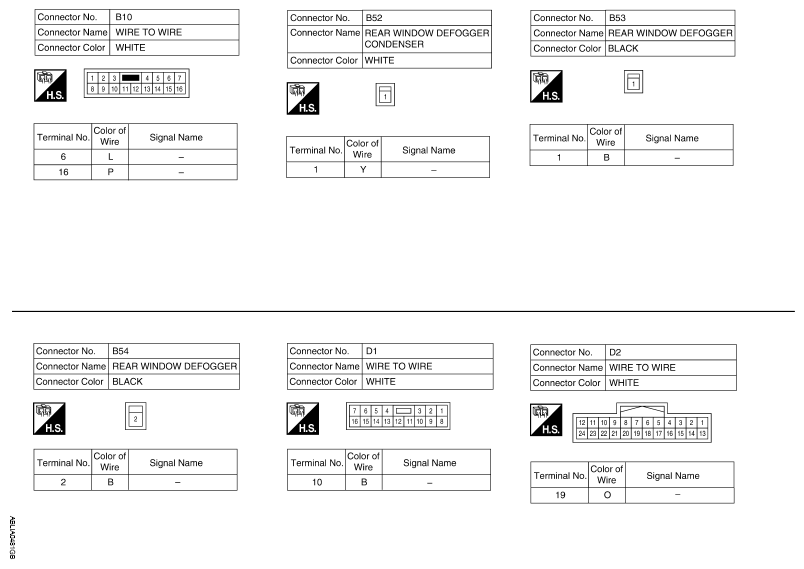

Fig 6: Identifying Rear Window Defogger Connector Terminals (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

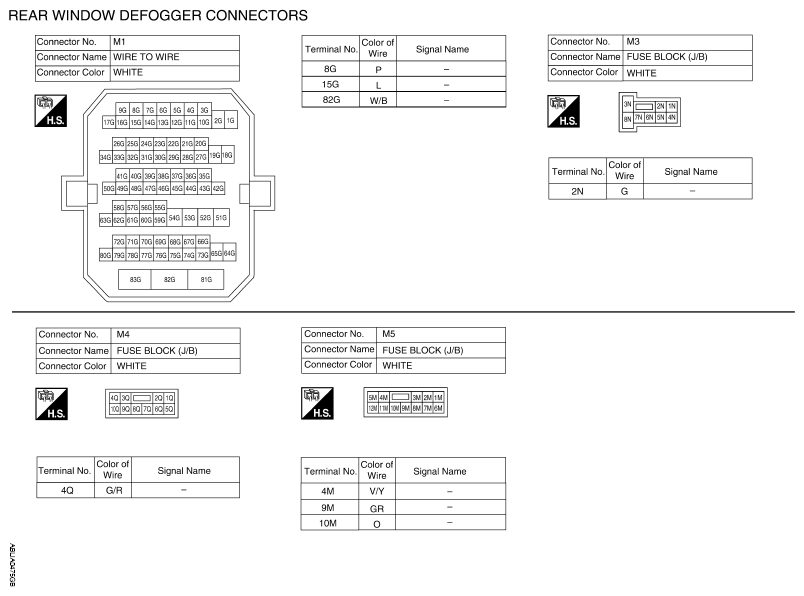

Fig 7: Identifying Rear Window Defogger Connector Terminals (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

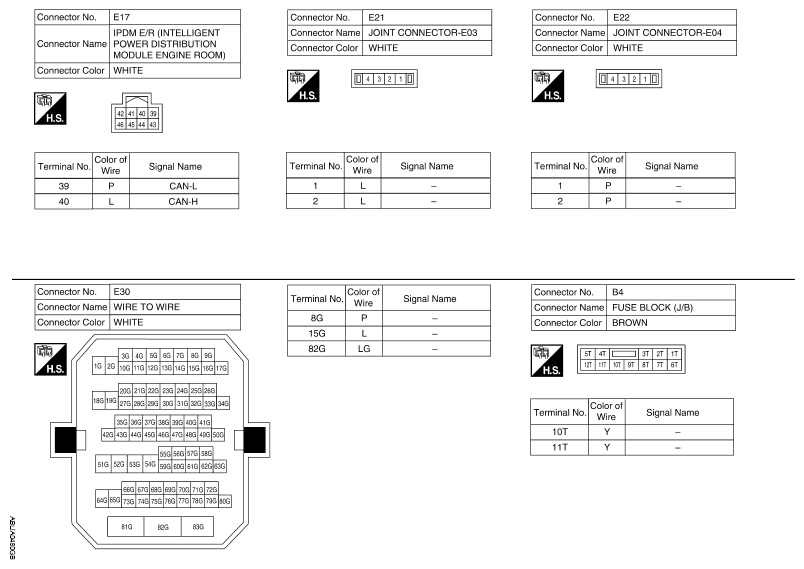

Fig 8: Identifying Rear Window Defogger Connector Terminals (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Rear Window Defogger Connector Terminals (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
