Wiring Diagram - VEHICLE SECURITY SYSTEM -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

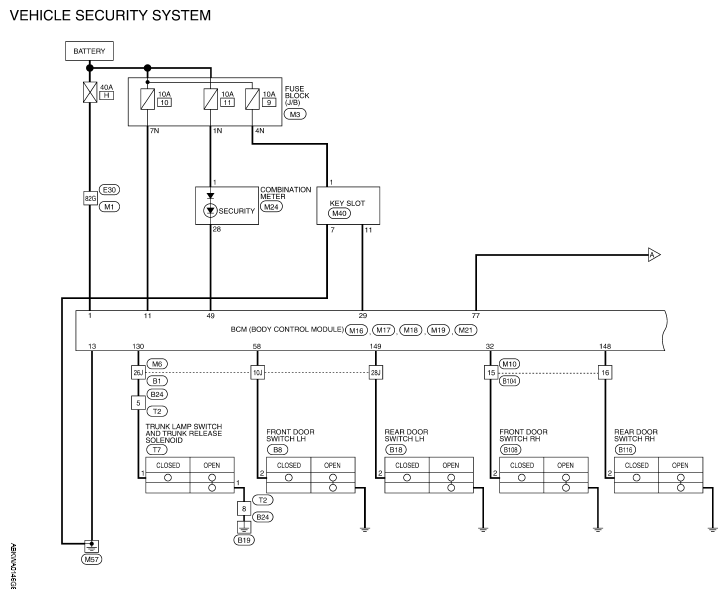

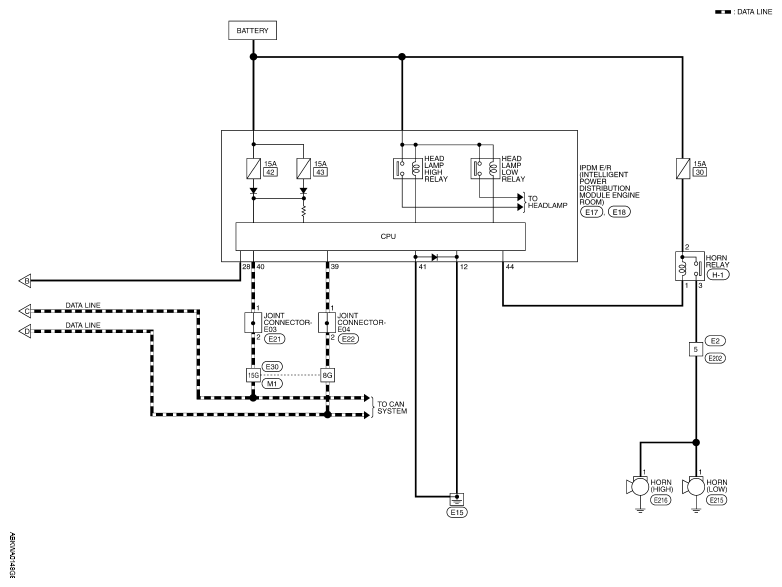

Fig 1: Vehicle Security System - Wiring Diagram (1 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

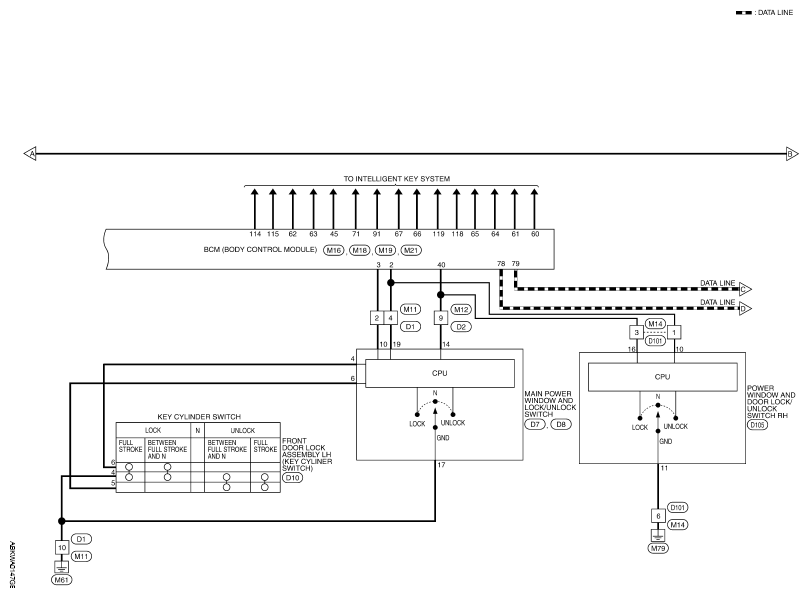

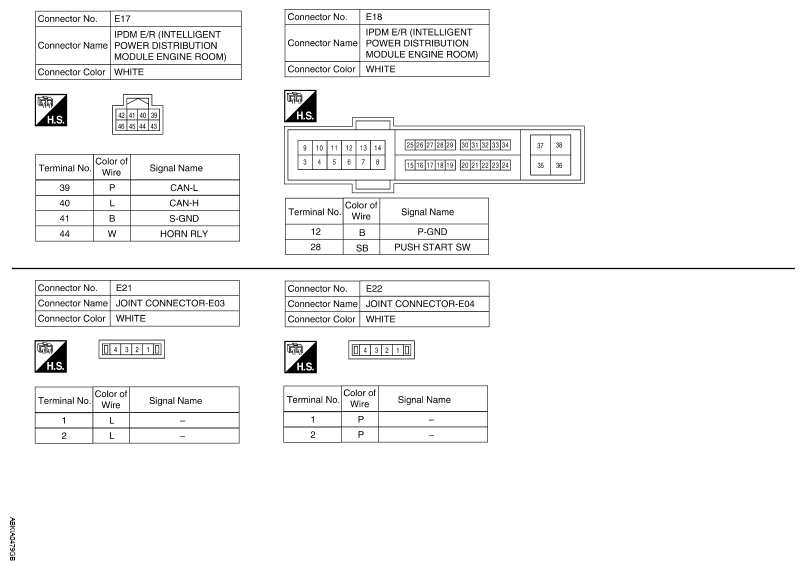

Fig 2: Vehicle Security System - Wiring Diagram (2 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Vehicle Security System - Wiring Diagram (3 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Vehicle Security System - Wiring Diagram (4 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

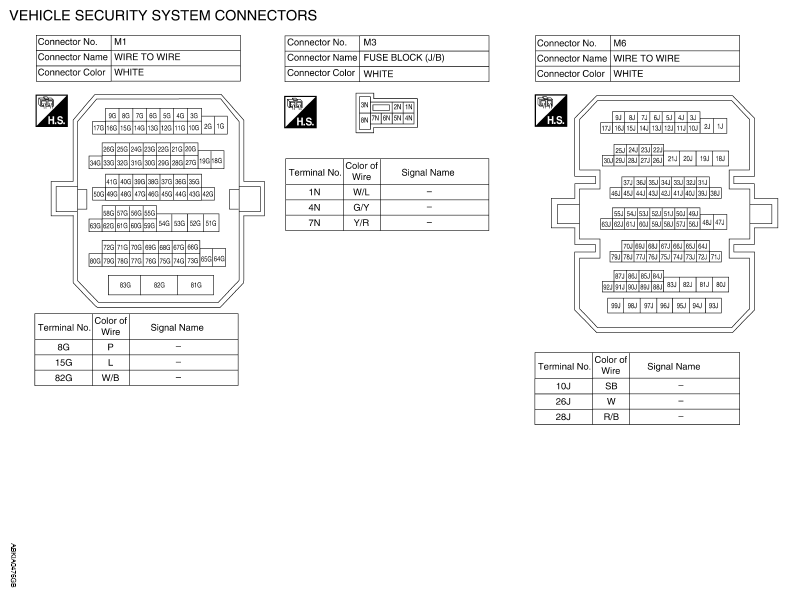

Fig 5: Vehicle Security System - Wiring Diagram (5 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

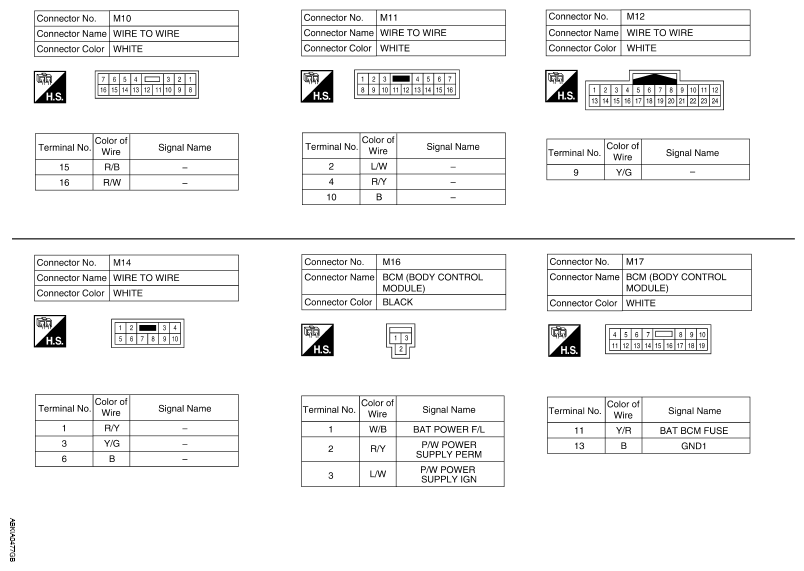

Fig 6: Vehicle Security System - Wiring Diagram (6 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

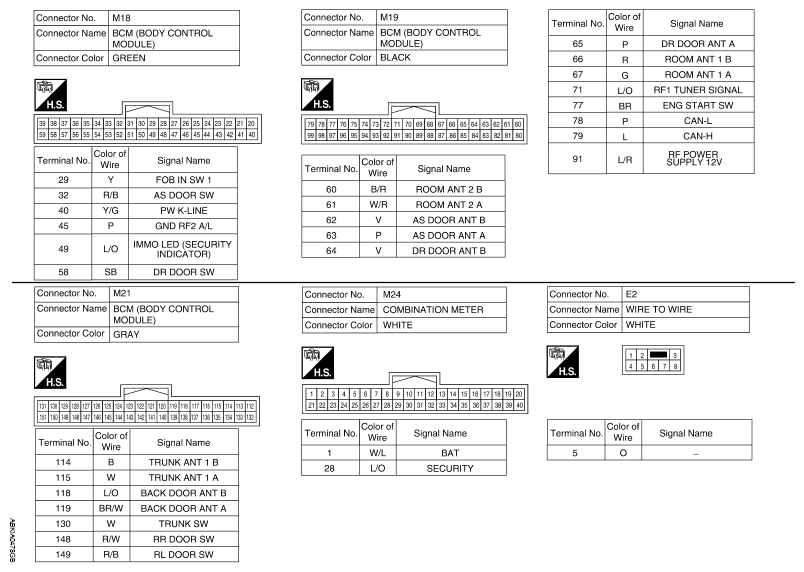

Fig 7: Vehicle Security System - Wiring Diagram (7 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

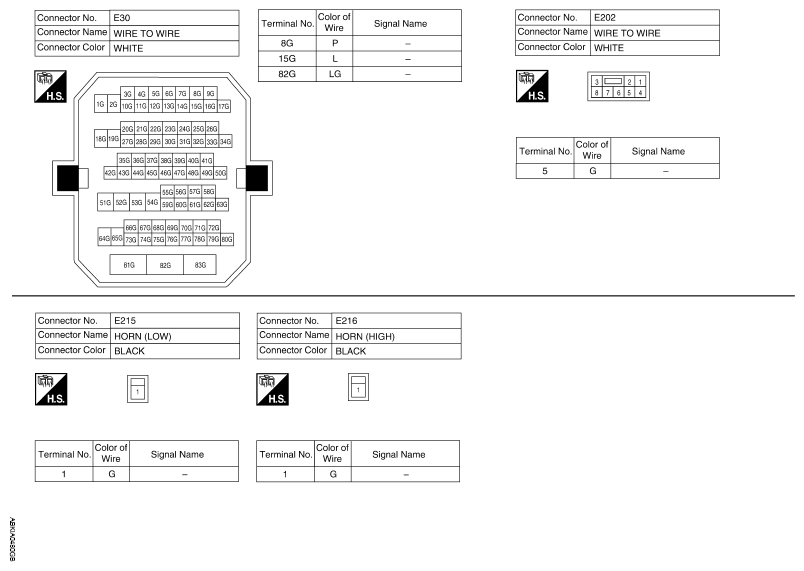

Fig 8: Vehicle Security System - Wiring Diagram (8 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

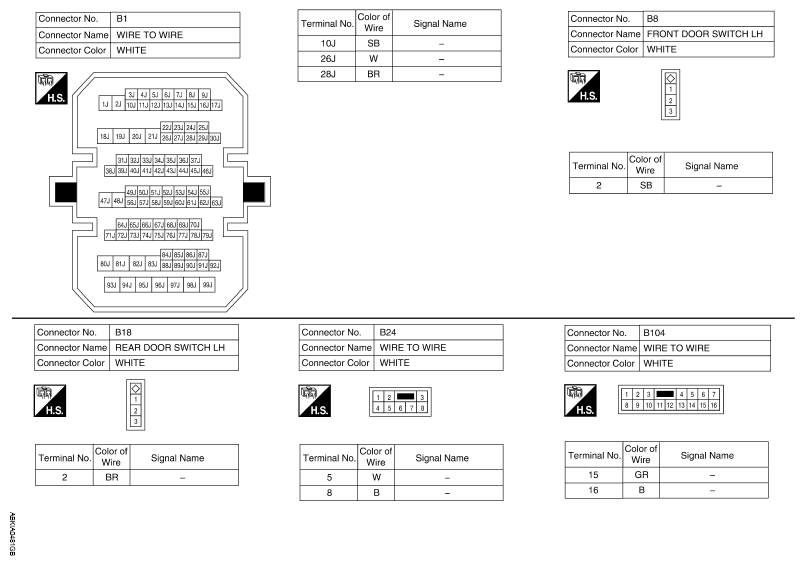

Fig 9: Vehicle Security System - Wiring Diagram (9 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

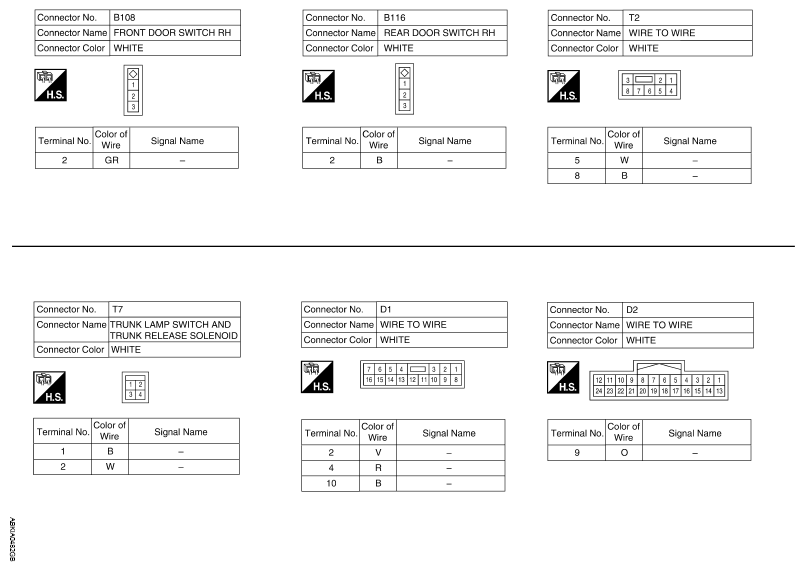

Fig 10: Vehicle Security System - Wiring Diagram (10 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

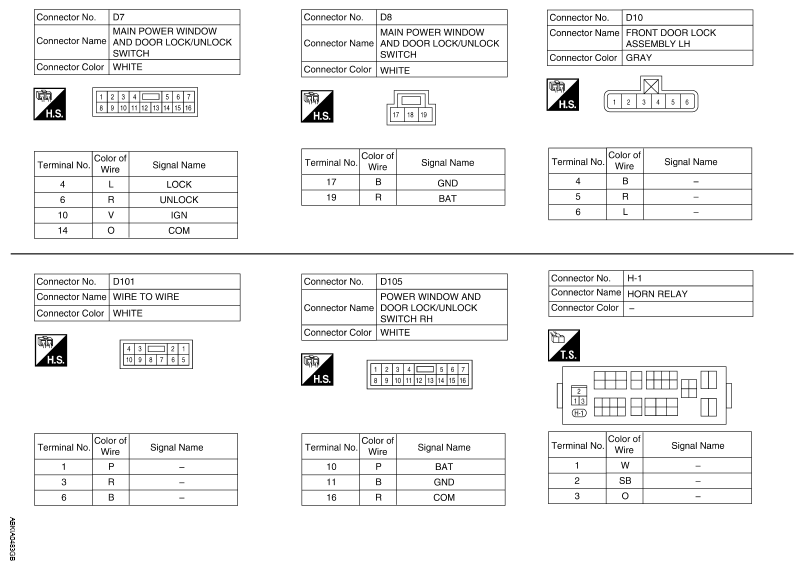

Fig 11: Vehicle Security System - Wiring Diagram (11 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.
