Wiring Diagram - CLIMATE CONTROLLED SEAT -

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

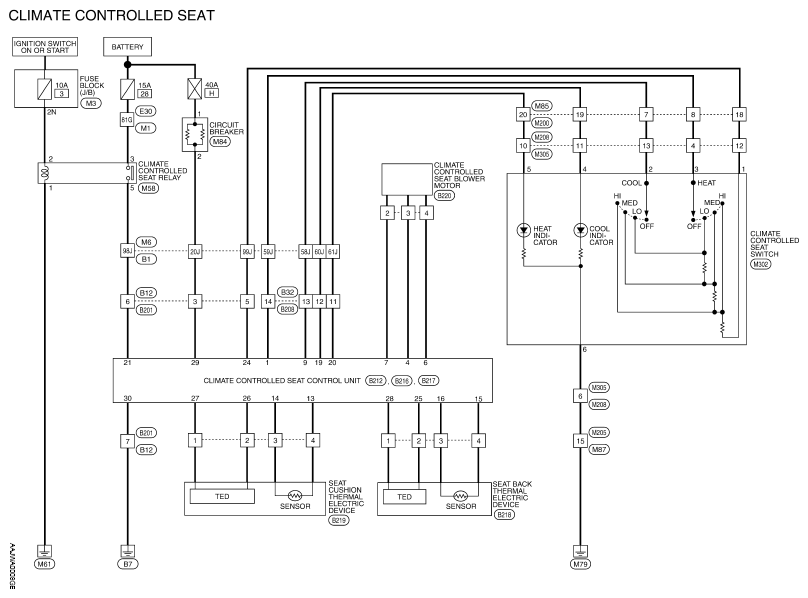

Fig 1: Climate Controlled Seat - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

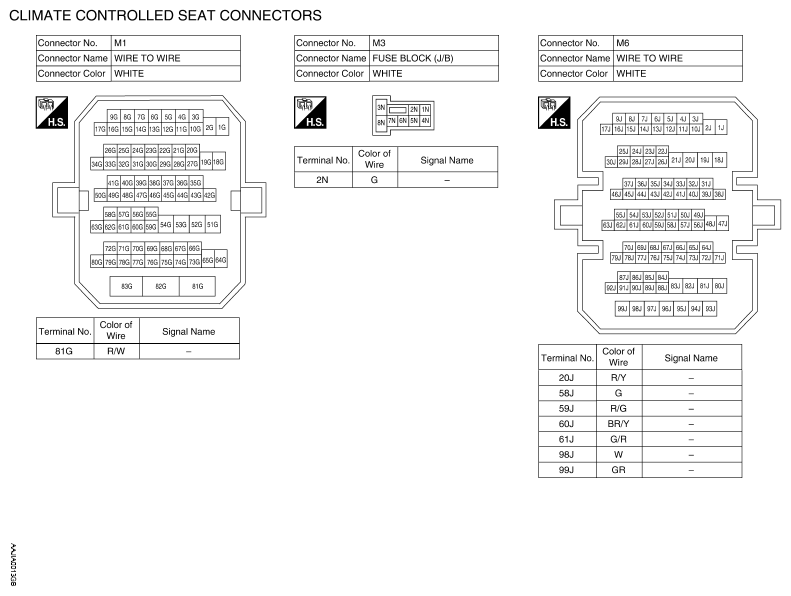

Fig 2: Identifying Climate Controlled Seat Connector Terminal (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

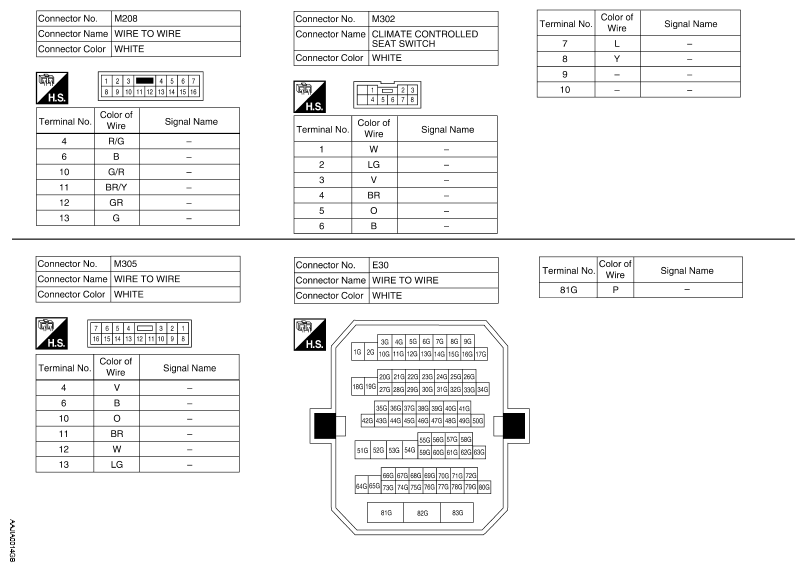

Fig 3: Identifying Climate Controlled Seat Connector Terminal (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

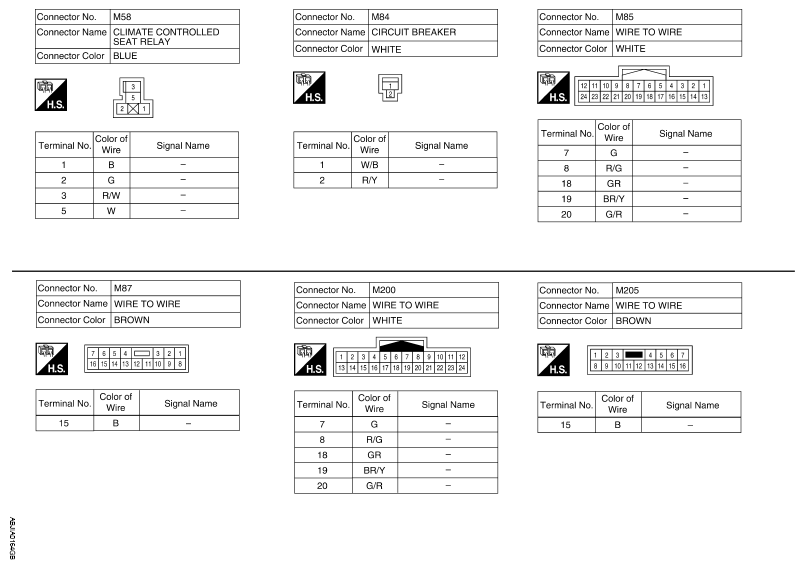

Fig 4: Identifying Climate Controlled Seat Connector Terminal (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

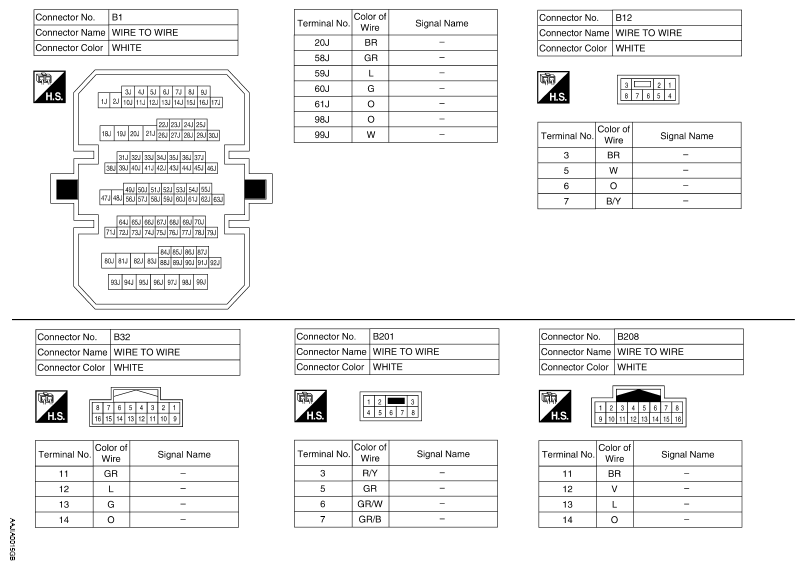

Fig 5: Identifying Climate Controlled Seat Connector Terminal (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

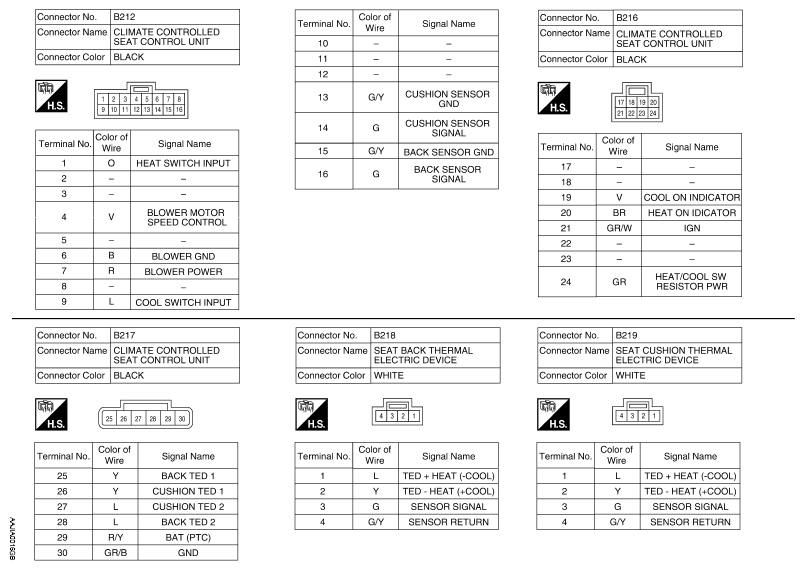

Fig 6: Identifying Climate Controlled Seat Connector Terminal (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

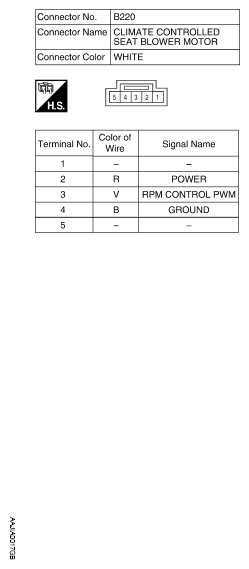

Fig 7: Identifying Climate Controlled Seat Connector Terminal (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
