Exploded View - Bucket Seat

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

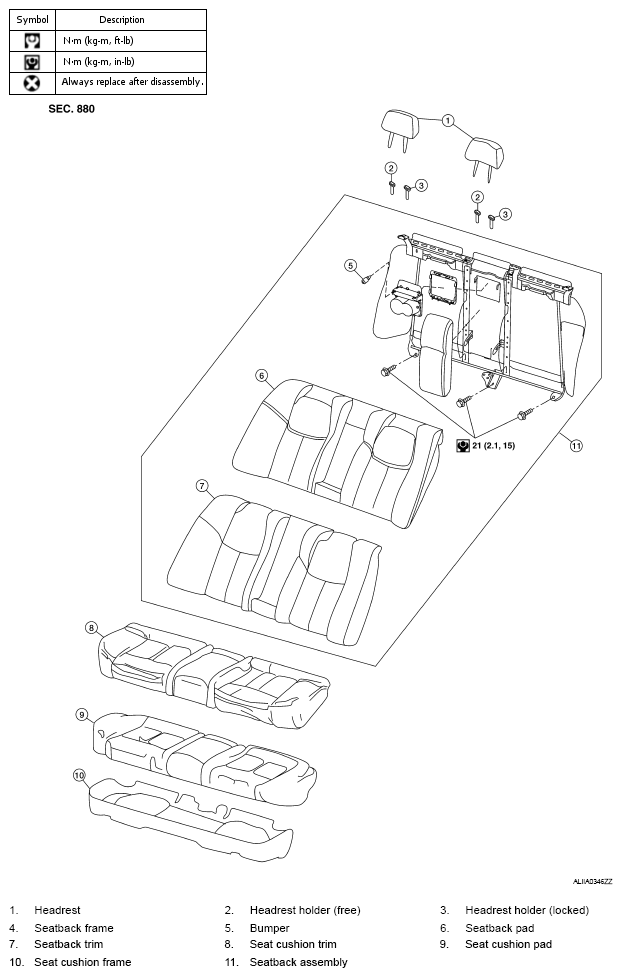

Fig 1: Exploded View Of Bucket Seat (Rear Seat) With Torque Specifications
G05876289Courtesy of NISSAN MOTOR CO., U.S.A.
