PASSENGER SIDE: Exploded View

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

PASSENGER'S POWER SEAT

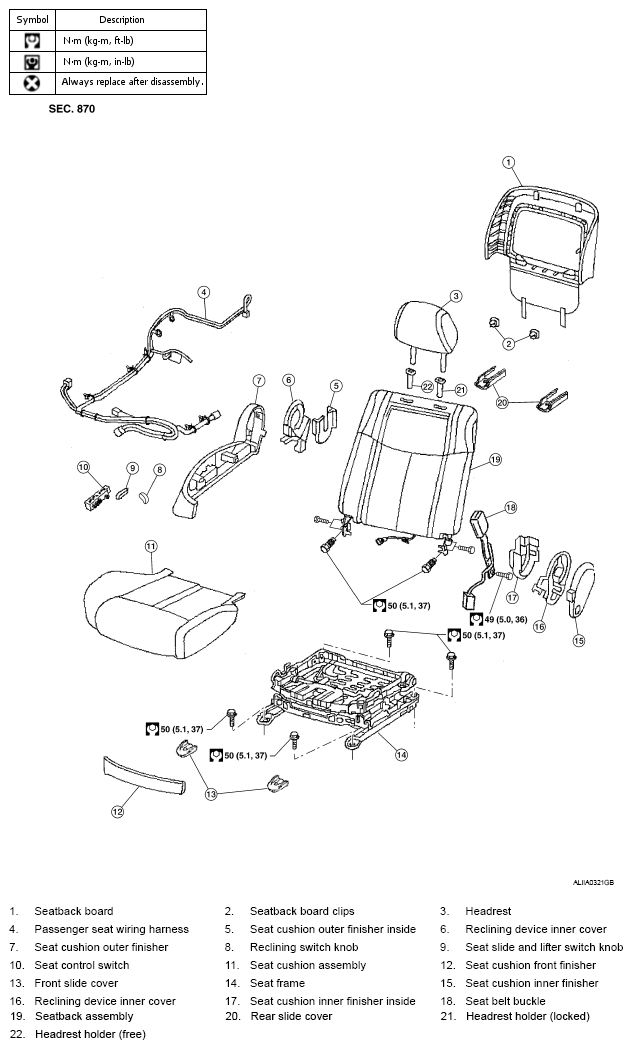

Fig 1: Exploded View Of Passenger Side With Torque Specifications
G05876287Courtesy of NISSAN MOTOR CO., U.S.A.
