Seatback Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion.
  2. Remove the headrest assemblies.
  3. Remove the seatback frame bolts and nut.

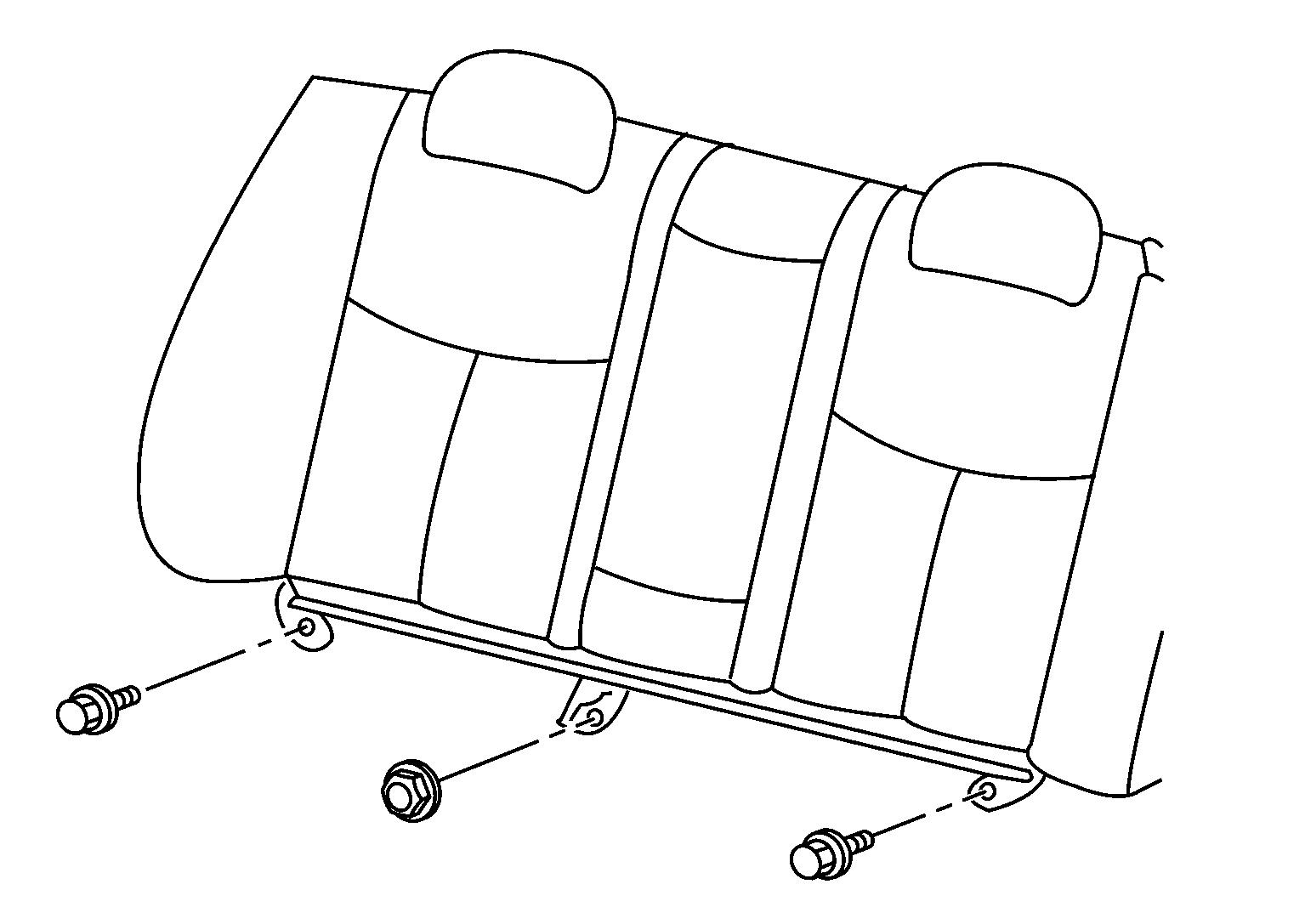

    Fig 1: Identifying Seatback Frame Bolts And Nut
    G05876275Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect the harness connectors.
  5. Lift the seatback to disengage seat hook wires from the hangers.
    Fig 2: Identifying Seat Hook Wires Of Hangers
    G05876276Courtesy of NISSAN MOTOR CO., U.S.A.
