Seat Cushion Removal

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the lock lever (1) at the front bottom of the seat cushion forward (one for each side), and pull the seat cushion upward to release the wire (2) from the seat cushion hook. Then pull the seat cushion forward to remove.
  2. Remove the seat cushion from the vehicle.

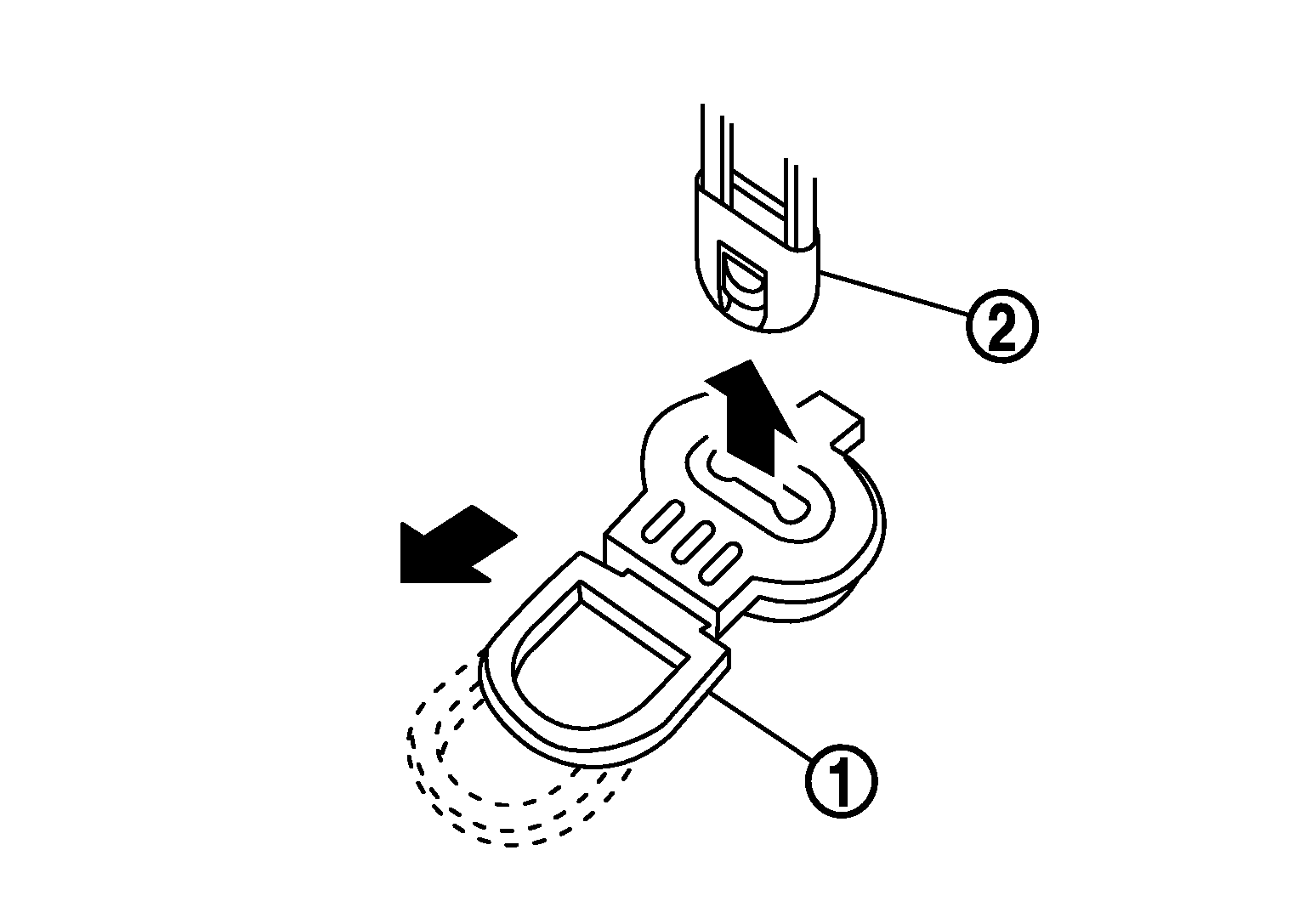

    Fig 1: Identifying Lock Lever And Wire
    G05219823Courtesy of NISSAN MOTOR CO., U.S.A.
