Pad Wear

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check pad thickness from the inspection hole on cylinder body. Check using a scale if necessary.
Standard thickness: Refer to "FRONT DISC BRAKE ".

Repair limit thickness: Refer to "FRONT DISC BRAKE ".

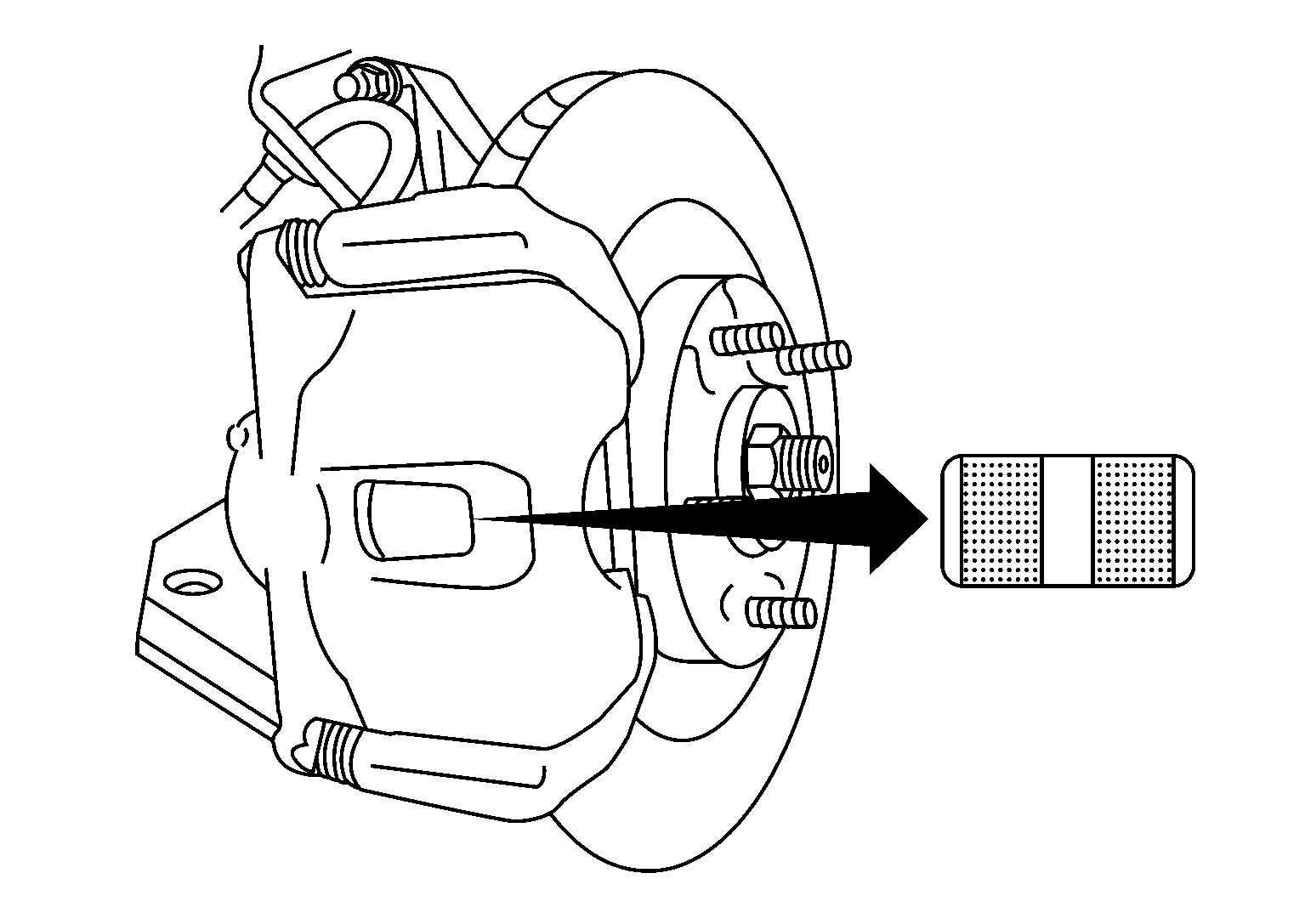

Fig 1: Identifying Pad Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
