Section 1014 (Meter, Warning Lamp & Indicator)
>>
Function Diagnosis
>>
Meter System
>>
Warning Lamps/Indicator Lamps
>>
WARNING LAMPS/INDICATOR LAMPS: Component Parts Location
WARNING LAMPS/INDICATOR LAMPS: Component Parts Location
WARNING:
This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

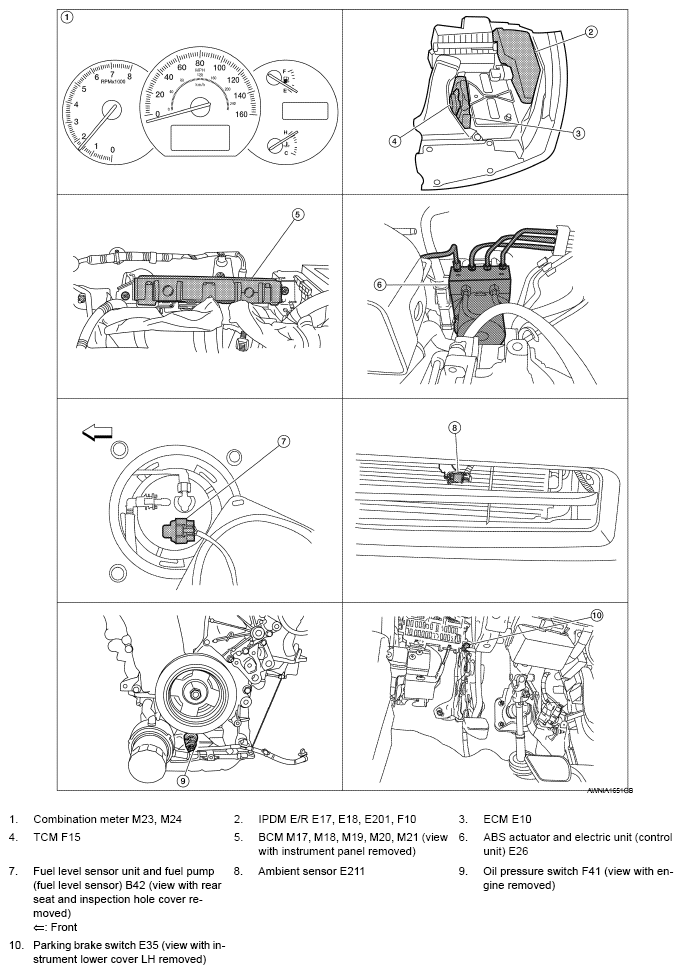

Fig 1: Identifying Warning Lamps/Indicator Lamps Components Location
Courtesy of NISSAN MOTOR CO., U.S.A.
