SHIFT POSITION INDICATOR: Component Parts Location
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

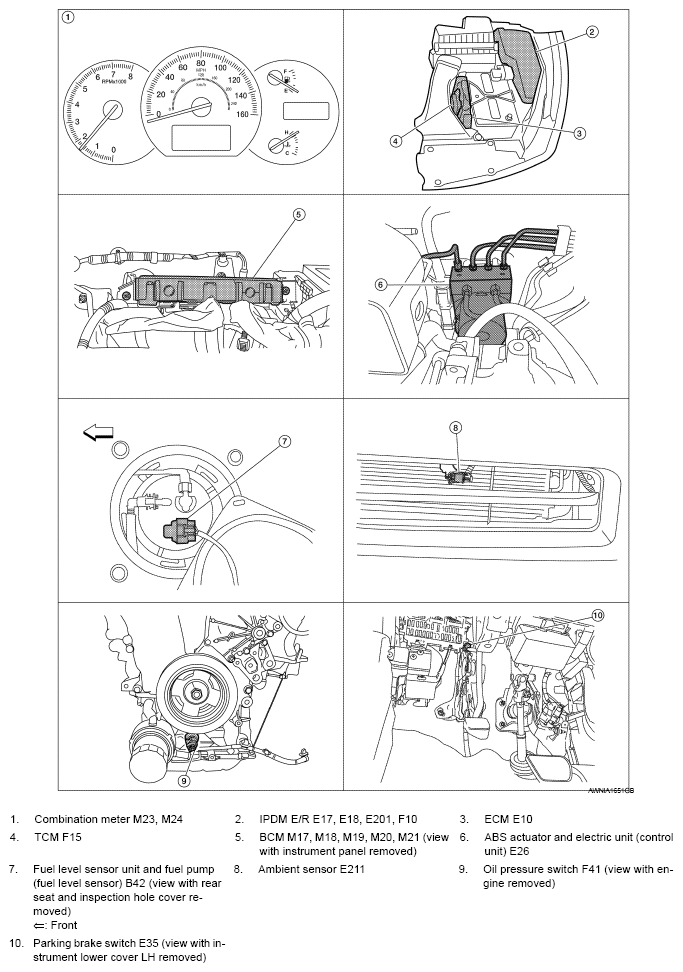

Fig 1: Identifying Shift Position Indicator Components Location
