ENGINE COOLANT TEMPERATURE GAUGE: Component Parts Location

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

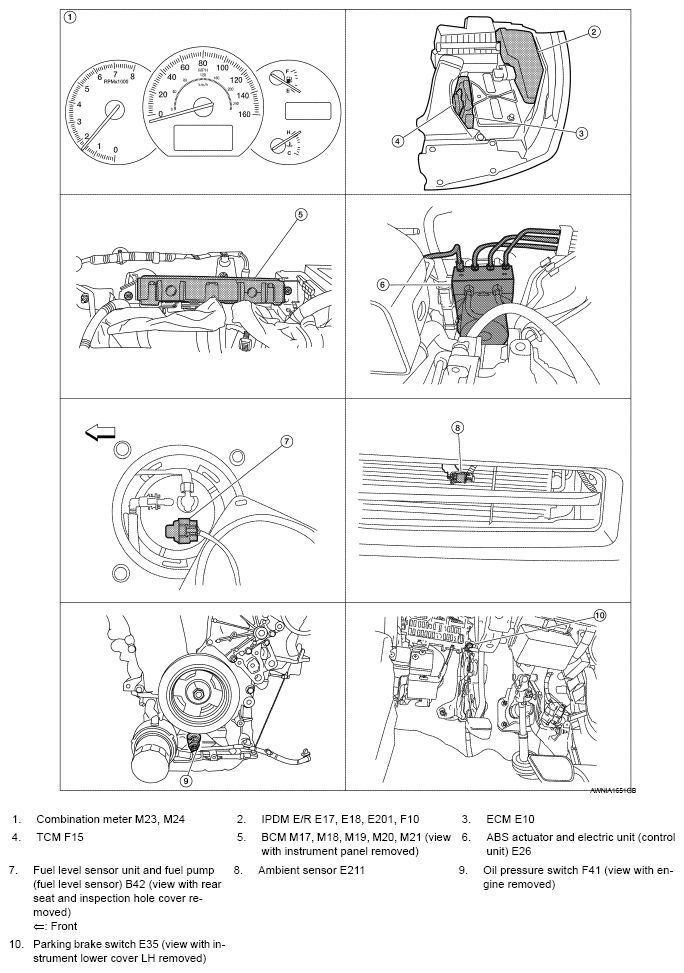

Fig 1: Identifying Engine Coolant Temperature Gauge Components Location
G05879149Courtesy of NISSAN MOTOR CO., U.S.A.
