Section 1014 (Meter, Warning Lamp & Indicator)
>>
Component Diagnosis
>>
Compass
>>
Wiring Diagram
Component Diagnosis: Compass: Wiring Diagram
WARNING:
This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

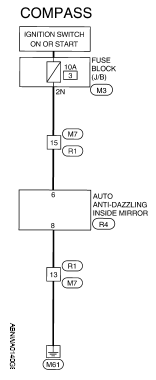

Fig 1: Compass - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

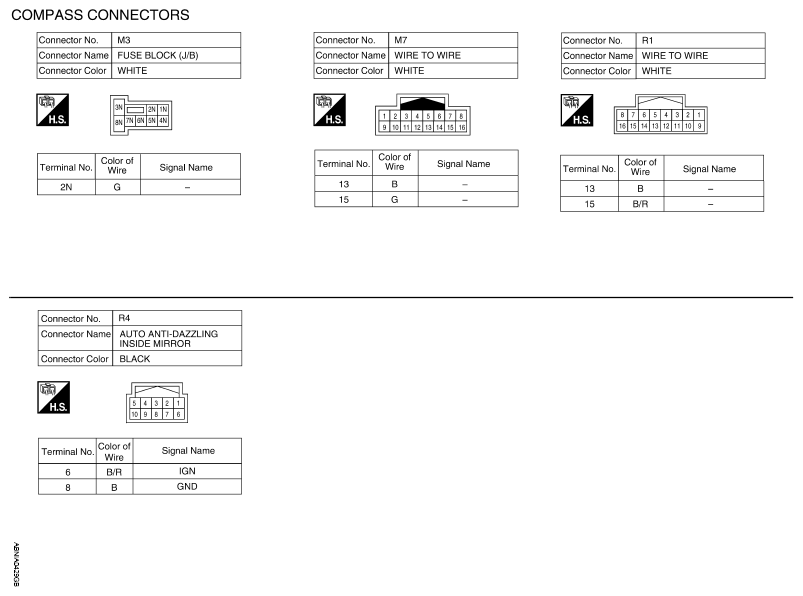

Fig 2: Identifying Compass Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
