Work Support
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WORK ITEM DESCRIPTION
| Service item | Setting item | Setting | |||
|---|---|---|---|---|---|

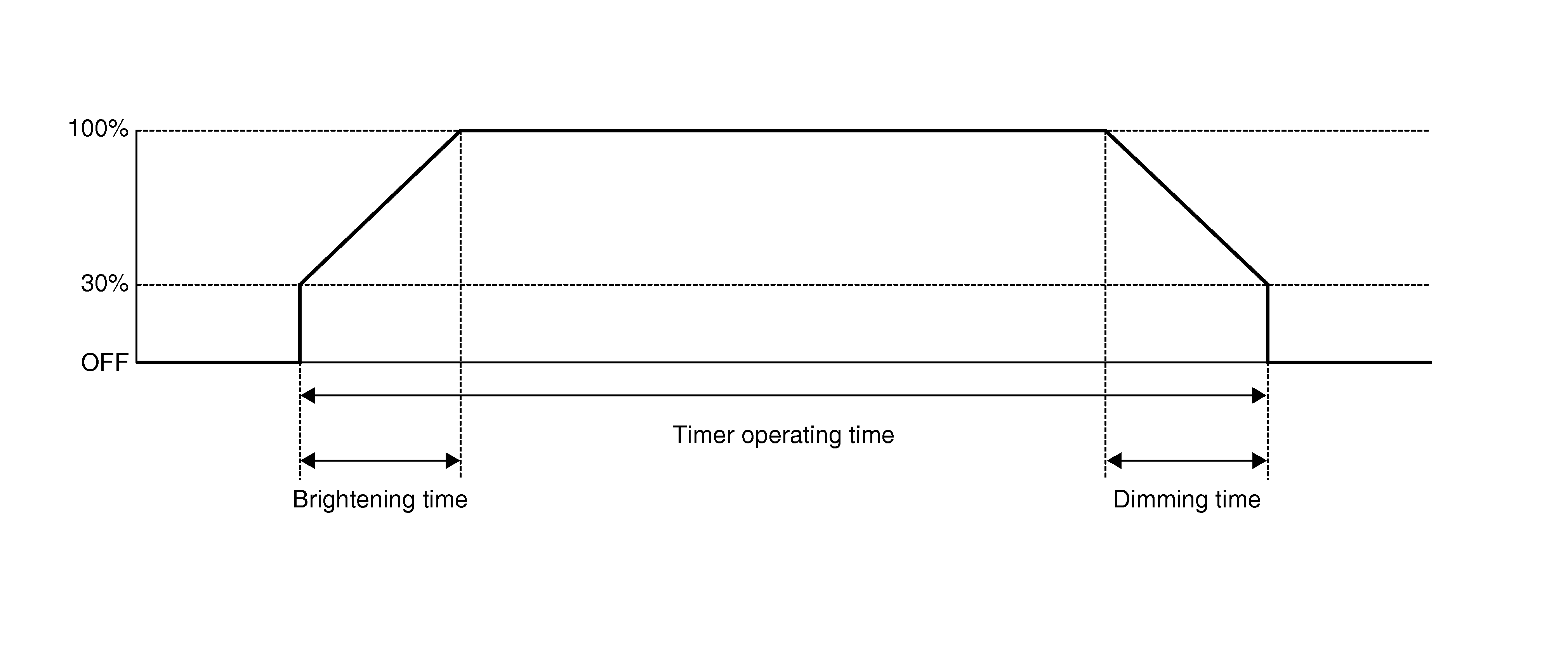

| ROOM LAMP TIMER SET | MODE 2 | 7.5 sec. | Sets the interior room lamp ON time. (Timer operating time) | ||
| MODE 3(1) | 15 sec. | ||||
| MODE 4 | 30 sec. | ||||
| SET I/L D-UNLCK INTCON | ON(1) | With the interior room lamp timer function | |||
| OFF | Without the interior room lamp timer function | ||||
| ROOM LAMP ON TIME SET | MODE 1 | 0.5 sec. | Sets the interior room lamp gradual brightening time. | ||
| MODE 2(1) | 1 sec. | ||||
| MODE 3 | 2 sec. | ||||
| MODE 4 | 3 sec. | ||||
| MODE 5 | 0 sec. | ||||
| ROOM LAMP OFF TIME SET | MODE 1 | 0.5 sec. | Sets the interior room lamp gradual dimming time. | ||
| MODE 2 | 1 sec. | ||||
| MODE 3 | 2 sec. | ||||
| MODE 4(1) | 3 sec. | ||||
| MODE 5 | 0 sec. | ||||
| R LAMP TIMER LOGIC SET | ON(1) (MODE 1) | Interior room lamp timer activates with synchronizing all doors. | |||
| OFF (MODE 2) | Interior room lamp timer activates with synchronizing the driver door only. | ||||
|
|||||
