Self Diagnostic Procedure (Without Consult-III)
WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Without CONSULT-III
To start the self-diagnostic results mode, ground terminal of the tire pressure warning check connector. The malfunction location is indicated by the warning lamp flashing.
NOTE:
When the low tire warning lamp flashes 5 Hz and continues repeating it, the system is normal.

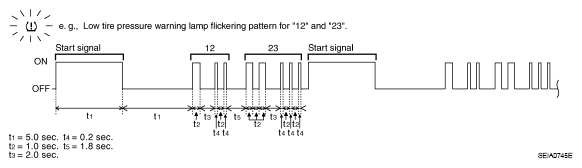

WARNING LAMP FLASHING PATTERN REFERENCE CHART
| Flickering pattern | Items | Diagnostic items detected when... | Check item |
|---|---|---|---|
| 15 | Tire pressure value (Front LH) | Front LH tire pressure drops to 181 kPa (1.8 kg/cm, 26 psi) or less. | - |
| 16 | Tire pressure value (Front RH) | Front RH tire pressure drops to 181 kPa (1.8 kg/cm, 26 psi) or less. | |
| 17 | Tire pressure value (Rear RH) | Rear RH tire pressure drops to 181 kPa (1.8 kg/cm, 26 psi) or less. | |
| 18 | Tire pressure value (Rear LH) | Rear LH tire pressure drops to 181 kPa (1.8 kg/cm, 26 psi) or less. | |
| 21 | Transmitter no data (Front LH) | Data from front LH transmitter cannot be received. | SELF-DIAGNOSIS (WITHOUT CONSULT-III) |
| 22 | Transmitter no data (Front RH) | Data from front RH transmitter cannot be received. | |
| 23 | Transmitter no data (Rear RH) | Data from Rear RH transmitter cannot be received. | |
| 24 | Transmitter no data (Rear LH) | Data from Rear LH transmitter cannot be received. | |
| 31 | Transmitter checksum error (Front LH) | Checksum data from front LH transmitter is malfunctioning. | SELF-DIAGNOSIS (WITHOUT CONSULT-III) |
| 32 | Transmitter checksum error (Front RH) | Checksum data from front RH transmitter is malfunctioning. | |
| 33 | Transmitter checksum error (Rear RH) | Checksum data from rear RH transmitter is malfunctioning. | |
| 34 | Transmitter checksum error (Rear LH) | Checksum data from rear RH transmitter is malfunctioning. | |
| 35 | Transmitter pressure data error (Front LH) | Air pressure data from front LH transmitter is malfunctioning. | SELF-DIAGNOSIS (WITHOUT CONSULT-III) |
| 36 | Transmitter pressure data error (Front RH) | Air pressure data from front RH transmitter is malfunctioning. | |
| 37 | Transmitter pressure data error (Rear RH) | Air pressure data from rear RH transmitter is malfunctioning. | |
| 38 | Transmitter pressure data error (Rear LH) | Air pressure data from rear LH transmitter is malfunctioning. | |
| 41 | Transmitter function code error (Front LH) | Function code data from front LH transmitter is malfunctioning. | SELF-DIAGNOSIS (WITHOUT CONSULT-III) |
| 42 | Transmitter function code error (Front RH) | Function code data from front RH transmitter is malfunctioning. | |
| 43 | Transmitter function code error (Rear RH) | Function code data from rear RH transmitter is malfunctioning. | |
| 44 | Transmitter function code error (Rear LH) | Function code data from rear LH transmitter is malfunctioning. | |
| 45 | Transmitter battery voltage low (Front LH) | Battery voltage of front LH transmitter drops. | SELF-DIAGNOSIS (WITHOUT CONSULT-III) |
| 46 | Transmitter battery voltage low (Front RH) | Battery voltage of front RH transmitter drops. | |
| 47 | Transmitter battery voltage low (Rear RH) | Battery voltage of rear RH transmitter drops. | |
| 48 | Transmitter battery voltage low (Rear LH) | Battery voltage of rear LH transmitter drops. | |
| 52 | Vehicle speed signal error | Speed signal is not detected. | SELF-DIAGNOSIS (WITHOUT CONSULT-III) |
| 53 | BCM failure about TPMS | Tire pressure monitoring system malfunction in BCM | SELF-DIAGNOSIS (WITHOUT CONSULT-III) |
| No flickering | Tire pressure warning check switch | Tire pressure warning switch circuit is open. | - |
