Diagnosis Sensor Unit: Wiring Diagram

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

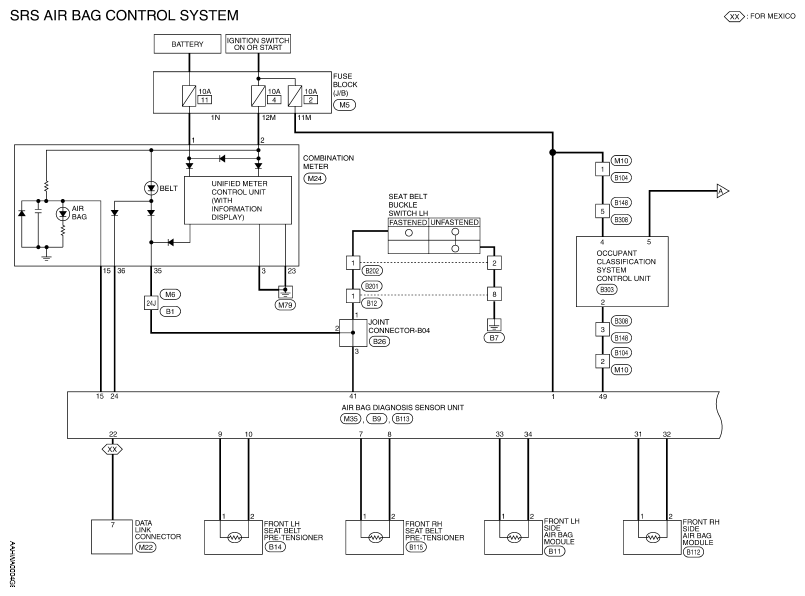

Fig 1: SRS Air Bag Control System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

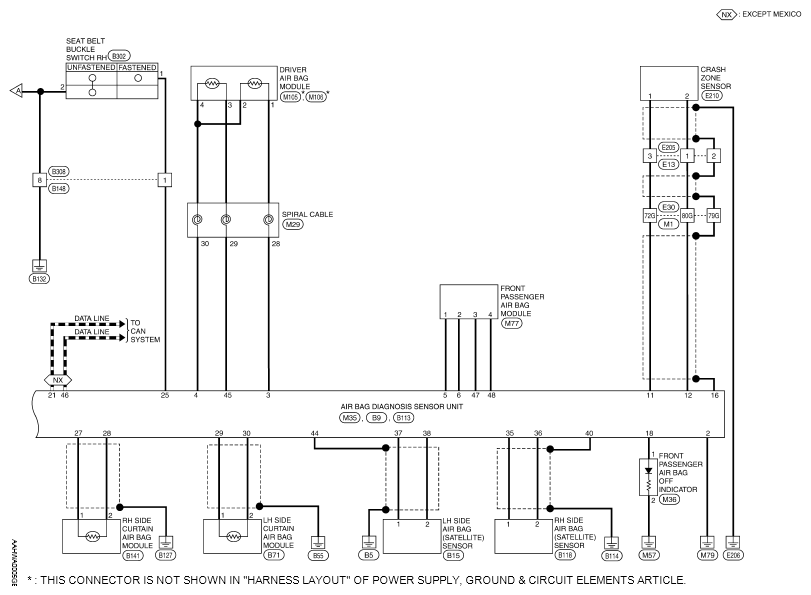

Fig 2: SRS Air Bag Control System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

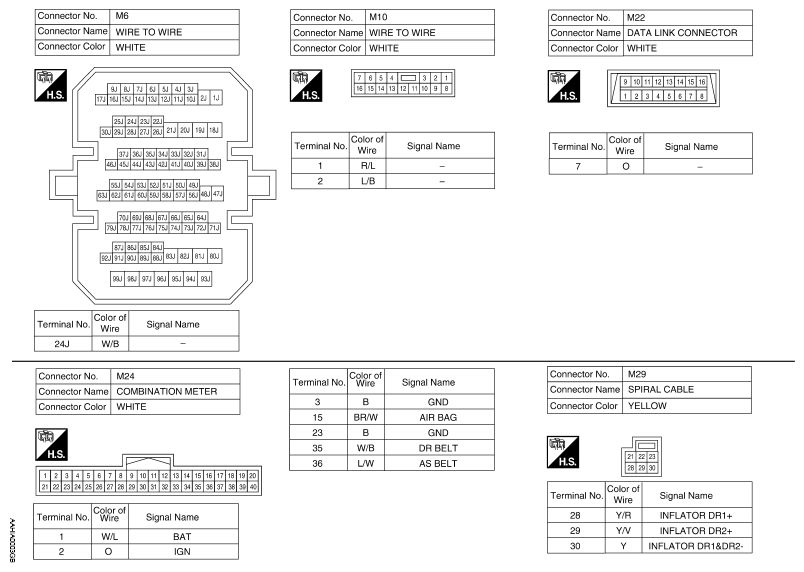

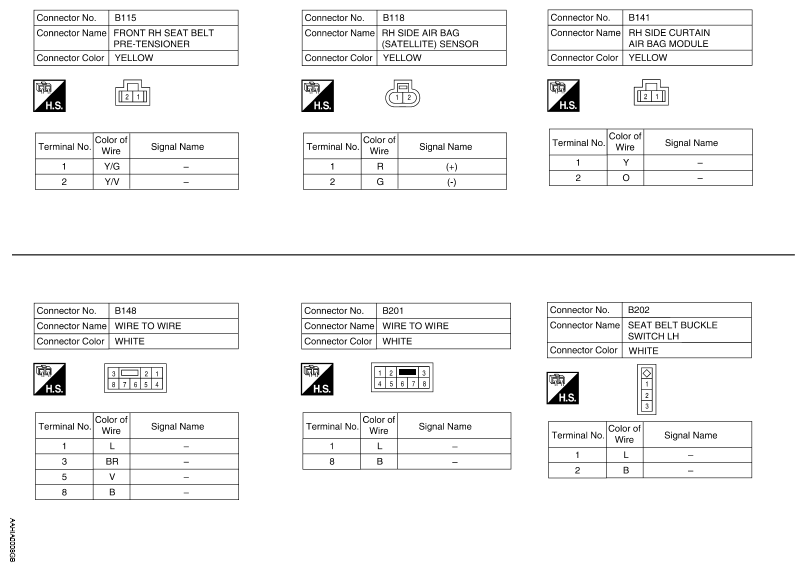

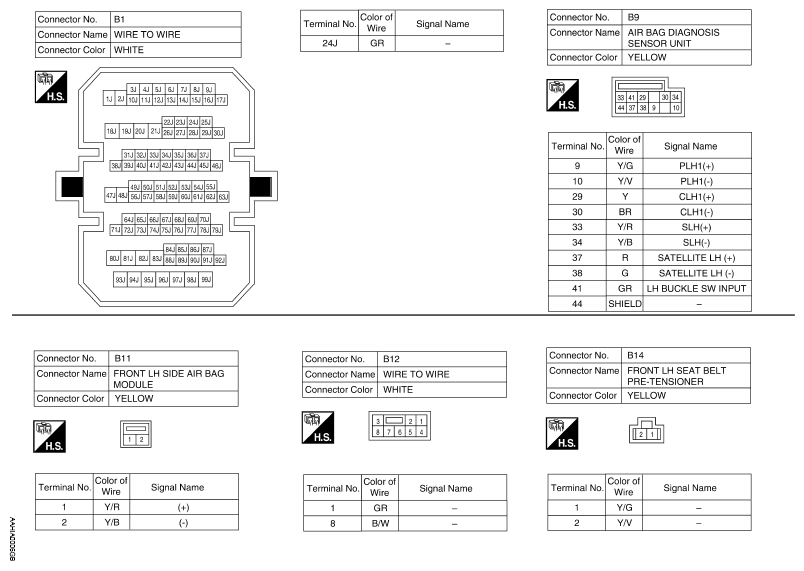

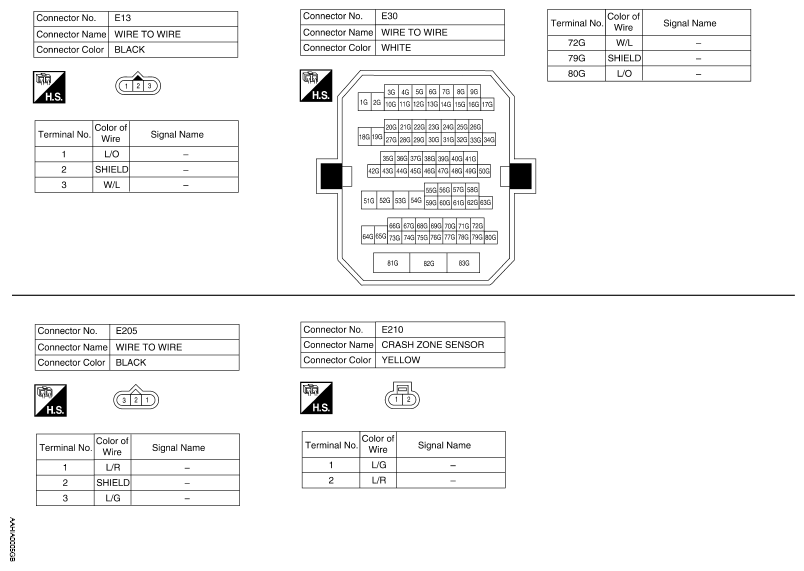

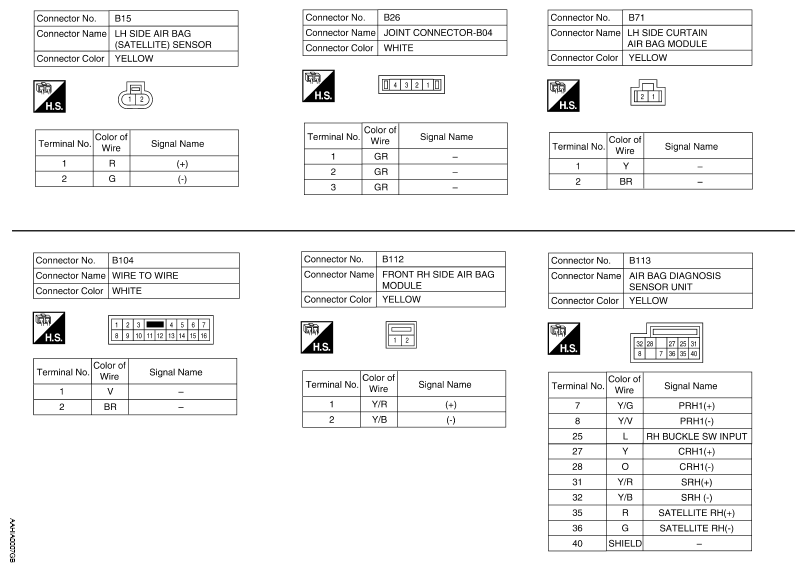

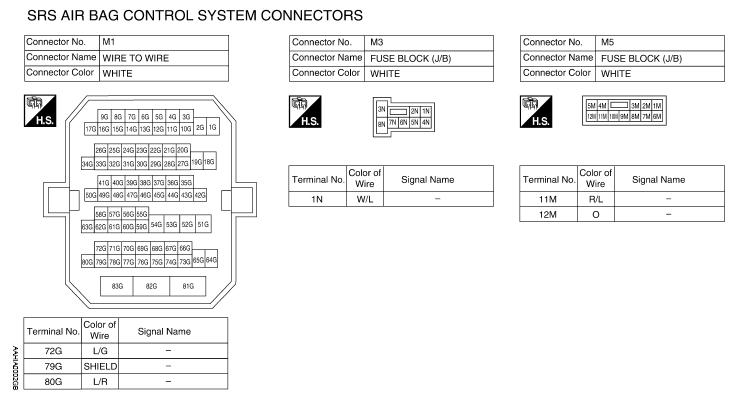

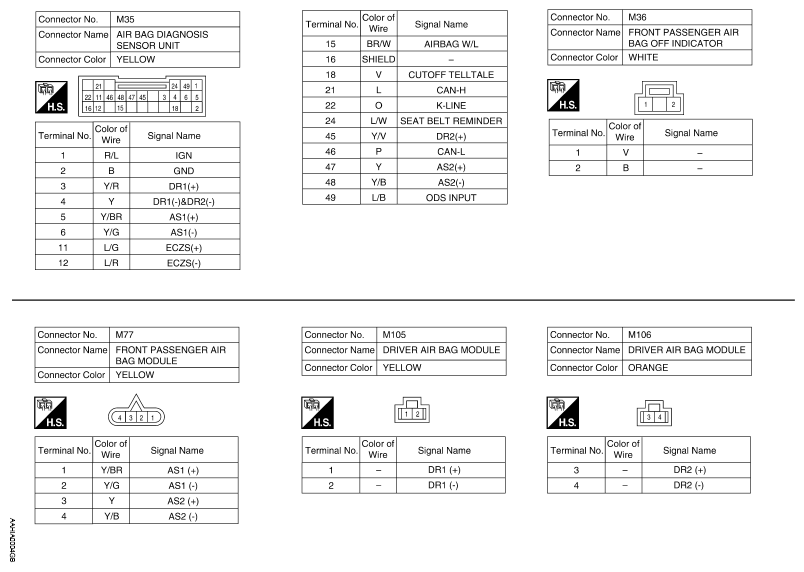

Fig 3: Identifying SRS Air Bag Control System Connector Terminals (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

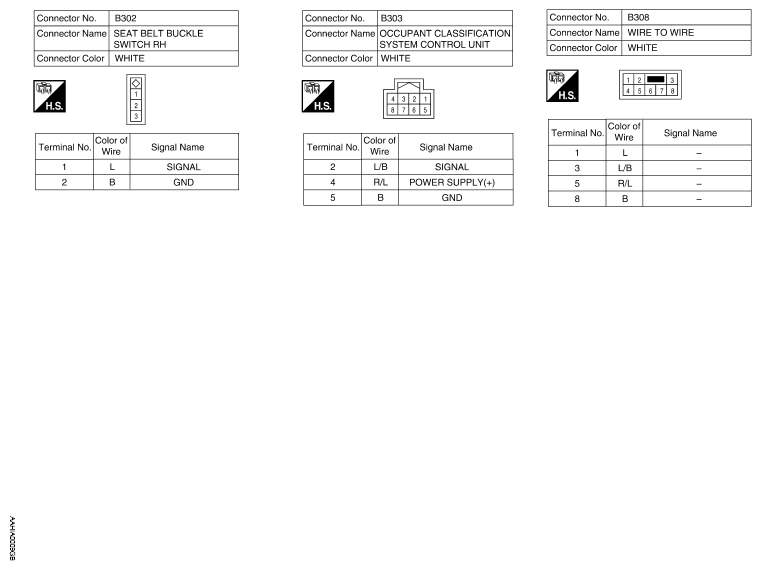

Fig 4: Identifying SRS Air Bag Control System Connector Terminals (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying SRS Air Bag Control System Connector Terminals (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying SRS Air Bag Control System Connector Terminals (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying SRS Air Bag Control System Connector Terminals (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying SRS Air Bag Control System Connector Terminals (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying SRS Air Bag Control System Connector Terminals (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying SRS Air Bag Control System Connector Terminals (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
